Operator's Manual
Rivers Edges One-Man Ladder Stands

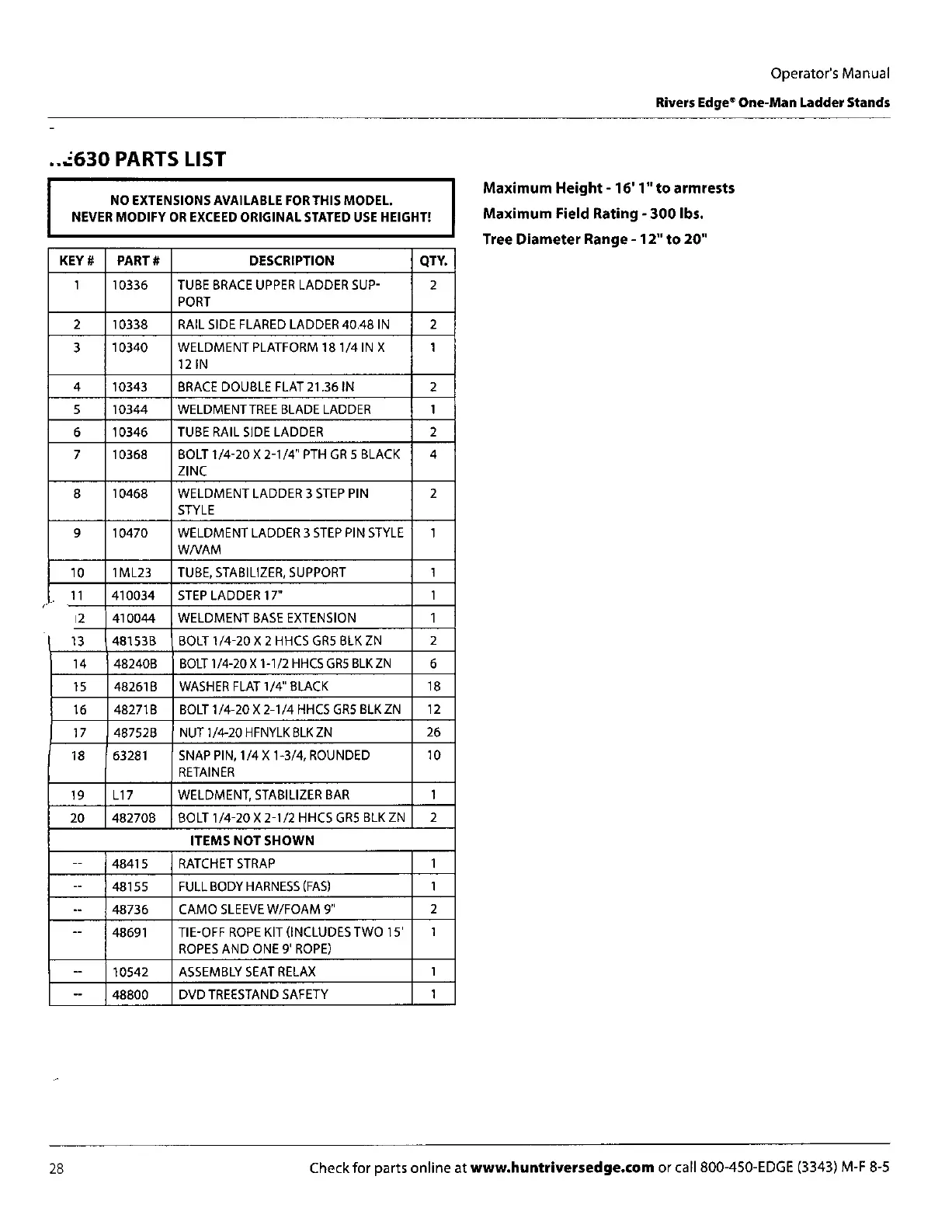

..4630 PARTS LIST
NO EXTENSIONS AVAILABLE FOR THIS MODEL.
NEVER MODIFY OR EXCEED ORIGINAL STATED USE HEIGHT!
KEY #
PART #
DESCRIPTION
QTY.
10336
TUBE BRACE UPPER LADDER SUP-
PORT
2
2
10338
RAIL SIDE FLARED LADDER 40.48 IN
2
3
10340
WELDMENT PLATFORM 181/4 IN X
12 IN
1
4
10343
BRACE DOUBLE FLAT 21.36 IN
2
5
10344
WELDMENT TREE BLADE LADDER
1
6
10346
TUBE RAIL SIDE LADDER
2
7
10368
BOLT 1/4-20 X 2-1/4" PTH GR 5 BLACK
ZINC
4
8
10468
WELDMENT LADDER 3 STEP PIN
STYLE
2
9
10470
WELDMENT LADDER 3 STEP PIN STYLE
WNAM
1
10
1ML23
TUBE, STABILIZER, SUPPORT
1
11
410034
STEP LADDER 17"
1
12
410044
WELDMENT BASE EXTENSION
1
13
4815313
BOLT 1/4-20 X 2 HHCS GR5 BLK ZN
2
14
48240B
BOLT 1/4-20 X 1-1/2 HHCS GR5 BLK ZN
6
15
48261B
WASHER FLAT 1/4" BLACK
18
16
48271B
BOLT 1/4-20 X 2-1/4 HHCS GR5 BLK ZN
12
17
487528
NUT 1/4-20 HFNYLKBLK ZN
26
18
63281
SNAP PIN, 1/4 X 1-3/4, ROUNDED
RETAINER
10
19
L17
WELDMENT, STABILIZER BAR
1
20
482708
BOLT 1/4-20 X 2-1/2 HHCS GR5 BLK ZN
2
ITEMS NOT SHOWN
48415
RATCHET STRAP
1
48155
FULL BODY HARNESS (FAS)
1
--
48736
CAMO SLEEVE W/FOAM 9"
2
--
48691
TIE-OFF ROPE KIT (INCLUDES TWO 15'
ROPES AND ONE 9' ROPE)
1
--
10542
ASSEMBLY SEAT RELAX
1
--
48800
DVD TREESTAND SAFETY
1
Maximum Height -16' 1" to armrests
Maximum Field Rating -300 lbs.
Tree Diameter Range -12" to 20"
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
28
