Operator's Manual
Rivers Edge One-Man Ladder Stands
<Cons are assembled on the ground in the following order; bot-
tom section (4100663-step ladder); second section (410068 3-step
ladder with stabilizer bar mount); third section (410069 3-step
ladder w/ mounting holes); top section (assembled top platform
section).
SEE FINISHED 17'1UMBO JACK LADDER.
16.With all sections assembled together on ground, secure all sec-
tions together using (6) provided spring lock pins. Handle of
spring lock pin must be put to the outside of ladder side rails.
SEE
FIGURE 11.

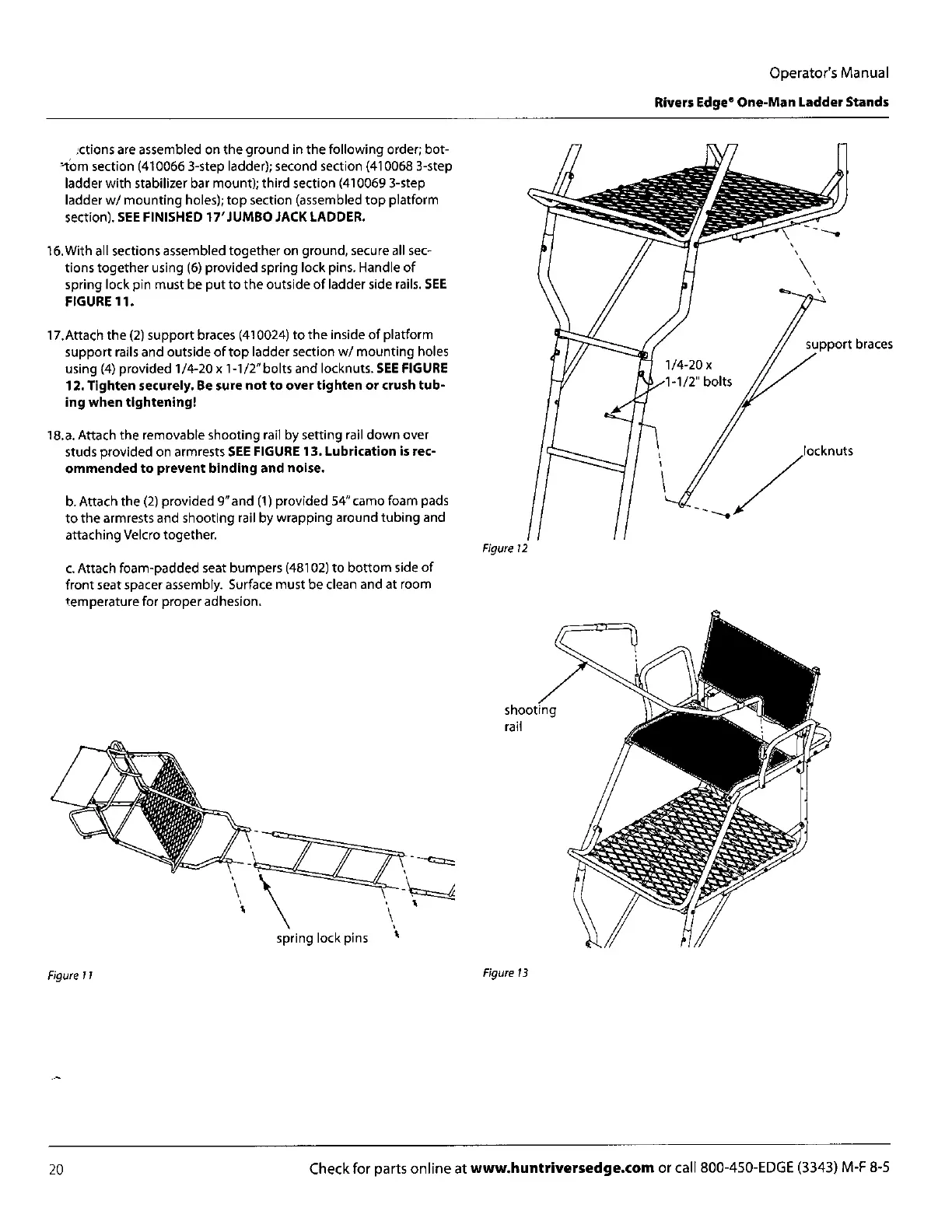

17.Attach the (2) support braces (410024) to the inside of platform
support rails and outside of top ladder section w/ mounting holes
using (4) provided 1/4-20 x 1-1/2" bolts and locknuts.
SEE FIGURE
12. Tighten securely. Be sure not to over tighten or crush tub-
ing when tightening!
18.a. Attach the removable shooting rail by setting rail down over
studs provided on armrests
SEE FIGURE 13. Lubrication is rec-
ommended to prevent binding and noise.
Attach the (2) provided 9" and (1) provided 54" camo foam pads
to the armrests and shooting rail by wrapping around tubing and
attaching Velcro together.
Attach foam-padded seat bumpers (48102) to bottom side of
front seat spacer assembly. Surface must be clean and at room
temperature for proper adhesion.
spring lock pins
Figure 11
Figure 12
Figure 13
20
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
To Next Page
