Operator's Manual
ItWets Ed Ond-Mantadddr Stands

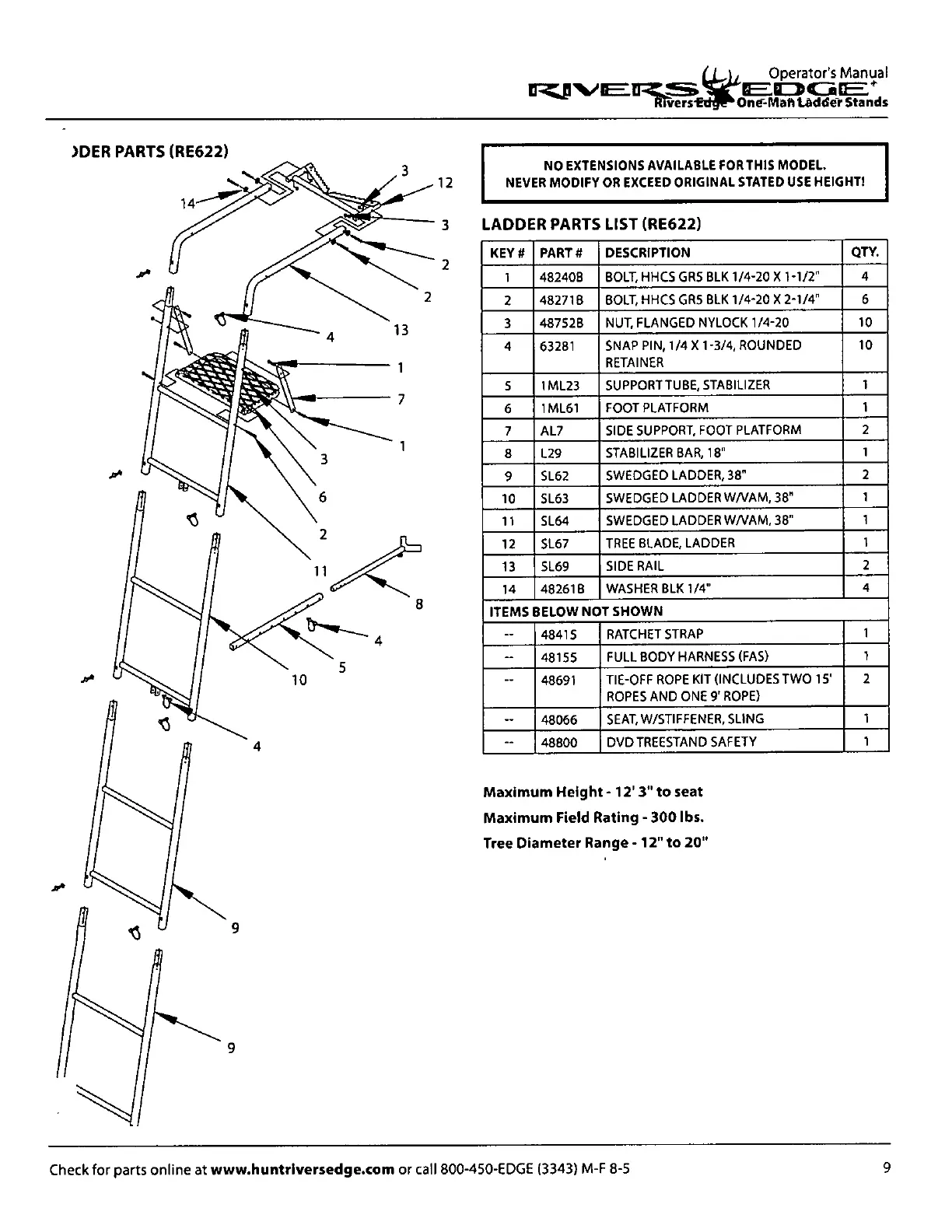

)DER PARTS (RE622)
NO EXTENSIONS AVAILABLE FOR THIS MODEL
NEVER MODIFY OR EXCEED ORIGINAL STATED USE HEIGHT!
LADDER PARTS LIST (RE622)
KEY
a
PART a
DESCRIPTION
QTY.
1
4824013
BOLT, HHCS GR5 BLK 1/4-20 X 1-1/2"
4
2
48271B
BOLT, HHCS GR5 BLK 1/4-20 X 2-1/4"
6
3
48752B
NUT, FLANGED NYLOCK 1/4-20
10
4
63281
SNAP PIN, 1/4 X 1-3/4, ROUNDED
RETAINER
10
5
1ML23
SUPPORT TUBE, STABILIZER
1
6
1ML61
FOOT PLATFORM
1
7
AL7
SIDE SUPPORT, FOOT PLATFORM
2
8
L29
STABILIZER BAR, 18"
1
9
5L62
SWEDGED LADDER, 38"
2
10
5L63
SWEDGED LADDER WNAM, 38"
1
11
51.64
SWEDGED LADDER WNAM, 38"
1
12
SL67
TREE BLADE, LADDER
1
13
SL69
SIDE RAIL
2
14
482618
WASHER BLK 1/4"
4
ITEMS BELOW NOT SHOWN
--
48415
RATCHET STRAP
1
—
48155
FULL BODY HARNESS (FAS)
1
--
48691
TIE-OFF ROPE KIT (INCLUDES TWO 15'
ROPES AND ONE 9' ROPE)
2
-
48066
SEAT, W/STIFFENER, SLING
1
-
48800
DVDTREESTAND SAFETY
1
Maximum Height -12' 3" to seat
Maximum Field Rating -300 lbs.
Tree Diameter Range -12" to 20"
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
