ladder side rails
tree blade
1
1/4-20x
2-1/4 bolts
steel washers
locknuts
steel
washers
nylon
spacers
fabric rail mounts
locknuts
1/4-20 x 1-1/4" bolts
front seat spacer assembly
1/4-20x 1-1/4" bolt
locknut

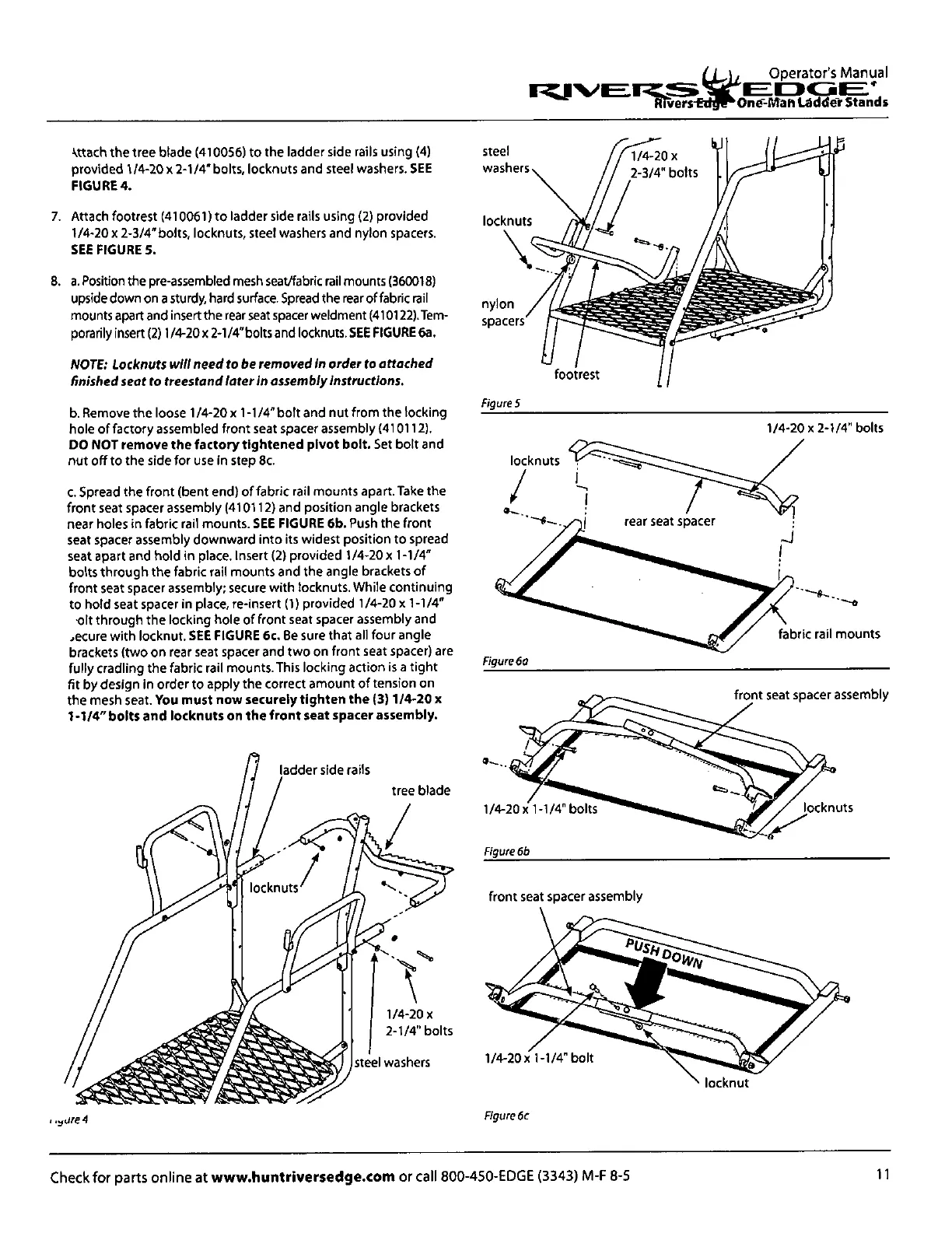

Operator's Manual
IrCJIN/ErC.,5*
.
ECIICIE
.
linters
One-NlantaddeStands
kttach the tree blade (410056) to the ladder side rails using (4)
provided 1/4-20 x 2-1/4" bolts, locknuts and steel washers.
SEE
FIGURE 4.
Attach footrest (410061) to ladder side rails using (2) provided
1/4-20 x 2-3/4" bolts, locknuts, steel washers and nylon spacers.
SEE FIGURE 5.
a. Position the pre-assembled mesh seat/fabric rail mounts (360018)
upside down on a sturdy, hard surface. Spread the rear of fabric rail
mounts apart and insert the rear seat spacer weldment (410122).Tem-
porarily insert (2)1/420 x 2-1/4"bolts and locknuts. SEE
FIGURE 6a.
NOTE: Locknuts will need to be removed in order
to
attached
finished seat to treestand later in assembly instructions.
Remove the loose 1/4-20
x
1-1/4" bolt and nut from the locking
hole of factory assembled front seat spacer assembly (410112).
DO NOT remove the factory tightened pivot bolt.
Set bolt and
nut off to the side for use in step 8c.
Spread the front (bent end) of fabric rail mounts apart. Take the
front seat spacer assembly (410112) and position angle brackets
near holes in fabric rail mounts.
SEE FIGURE 6b.
Push the front
seat spacer assembly downward into its widest position to spread
seat apart and hold in place. Insert (2) provided 1/4-20 x 1-1/4"
bolts through the fabric rail mounts and the angle brackets of
front seat spacer assembly; secure with locknuts. While continuing
to hold seat spacer in place, re-insert (1) provided 1/4-20 x 1-1/4"
olt through the locking hole of front seat spacer assembly and
,ecure with locknut.
SEE FIGURE 6c
Be sure that all four angle
brackets (two on rear seat spacer and two on front seat spacer) are
fully cradling the fabric rail mounts. This locking action is a tight
fit by design in order to apply the correct amount of tension on
the mesh seat.
You must now securely tighten the (3)1/4-20 x
1-1/4" bolts and locknuts on the front seat spacer assembly.
Figures
1/4-20 x 2-1/4" bolts
Figure 6o
Figure 6b
front seat spacer assembly
Figure 6c
11
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
