stabilizer bar
spring lock
pin
stabilzier bar
extension
Figure 14
75
15'
tie-off
ropes
9' stabilizer
bar rope
third
section
second
section
top
section
stabilizer
bar
stabilizer bar
extension tube
spring
lock pins
bottom
section

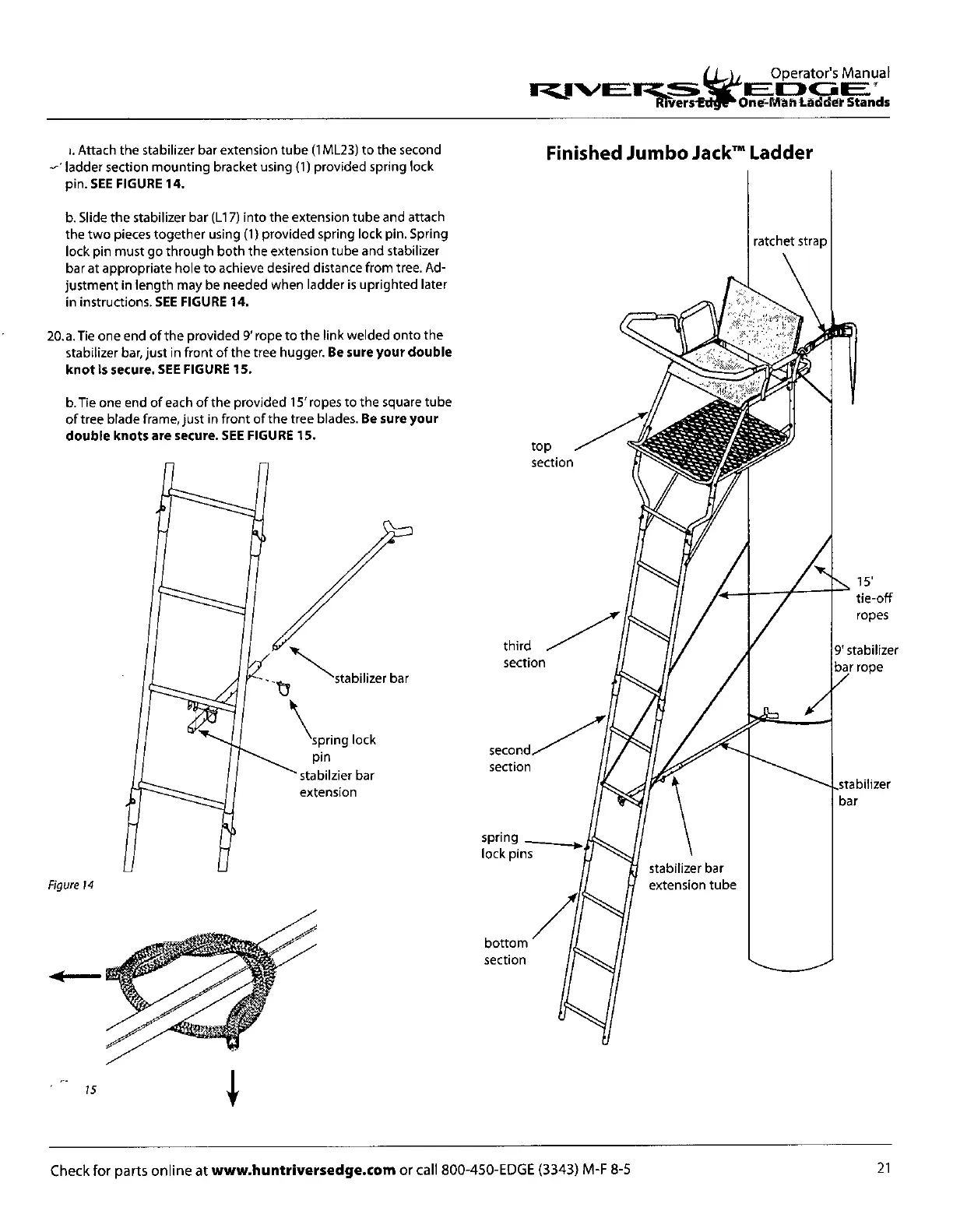

Operator's Manual
TC,„j‘ls
,
ailli
i
lar:3
t
0
RiVers E
*i
One-Man Ladder Stands
i. Attach the stabilizer bar extension tube (1ML23) to the second
ladder section mounting bracket using (1) provided spring lock
pin.
SEE FIGURE 14.
b. Slide the stabilizer bar (L17) into the extension tube and attach
the two pieces together using (1) provided spring lock pin. Spring
lock pin must go through both the extension tube and stabilizer
bar at appropriate hole to achieve desired distance from tree. Ad-
justment in length may be needed when ladder is uprighted later
in instructions.
SEE FIGURE 14.
20. a. Tie one end of the provided 9' rope to the link welded onto the
stabilizer bar, just in front of the tree hugger.
Be sure your double
knot is secure. SEE FIGURE 15.
b. Tie one end of each of the provided 15' ropes to the square tube
of tree blade frame, just in front of the tree blades.
Be sure your
double knots are secure. SEE FIGURE 15.
Finished Jumbo JackTM Ladder
ratchet strap
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
21
