Operator's Manual
irCFI/a IFC...S
t
itF COG la
ITRre rs
Ont-Man
Ladder Stands
IIP

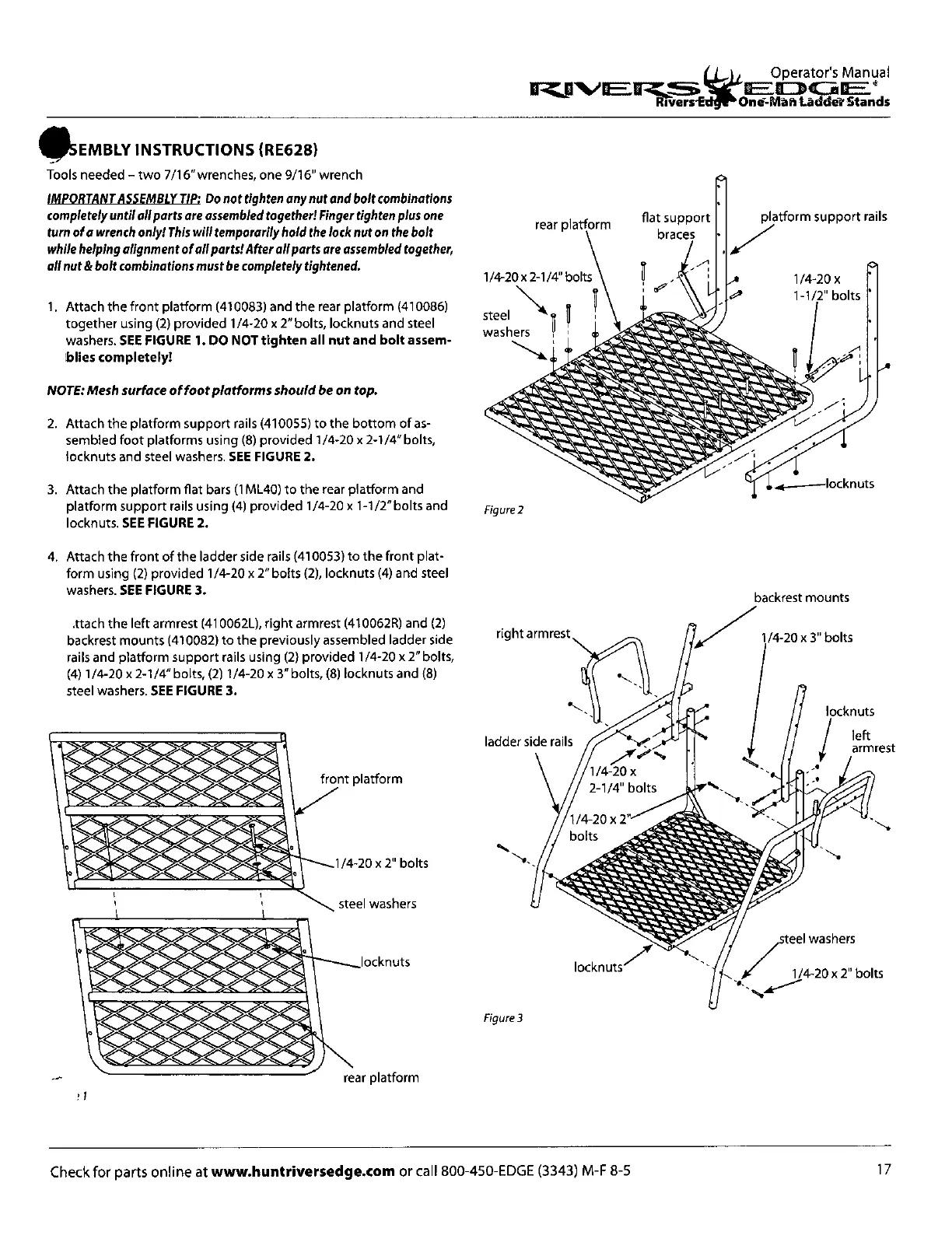

SEMBLY INSTRUCTIONS (RE628)
Tools needed - two 7/16" wrenches, one 9/16" wrench
IMPORTANT ASSEMBLY TIP. Do not tighten any nut and bolt combinations
completely until all parts are assembled together! Finger tighten plus one
turn of a wrench only! This will temporarily hold the lock nut on the bolt
while helping alignment of all parts! After all parts are assembled together,
all nut & bolt combinations must be completely tightened.
Attach the front platform (410083) and the rear platform (410086)
together using (2) provided 1/4-20 x 2" bolts, locknuts and steel
washers.
SEE FIGURE 1. DO NOT tighten all nut and bolt assem-
blies completely!
NOTE: Mesh surface of foot platforms should be on top.
Attach the platform support rails (410055) to the bottom of as-
sembled foot platforms using (8) provided 1/4-20 x 2-1/4" bolts,
locknuts and steel washers.
SEE FIGURE 2.
Attach the platform flat bars (1ML40) to the rear platform and
platform support rails using (4) provided 1/4-20 x 1-1/2" bolts and
locknuts.
SEE FIGURE 2.
4. Attach the front of the ladder side rails (410053) to the front plat-
form using (2) provided 1/4-20 x 2" bolts (2), locknuts (4) and steel
washers.
SEE FIGURE 3.
ttach the left armrest (410062L), right armrest (410062R) and (2)
backrest mounts (410082) to the previously assembled ladder side
rails and platform support rails using (2) provided 1/4-20 x 2" bolts,
(4) 1/4-20 x 2-1/4" bolts, (2) 1/4-20 x 3" bolts, (8) locknuts and (8)
steel washers.
SEE FIGURE 3.
rear platform
17
