Operator's
Manual
9
IrCIOVIC_Sli
t
PIECING a
t
iVers
t
Onif-IVIan Lida'? Stands

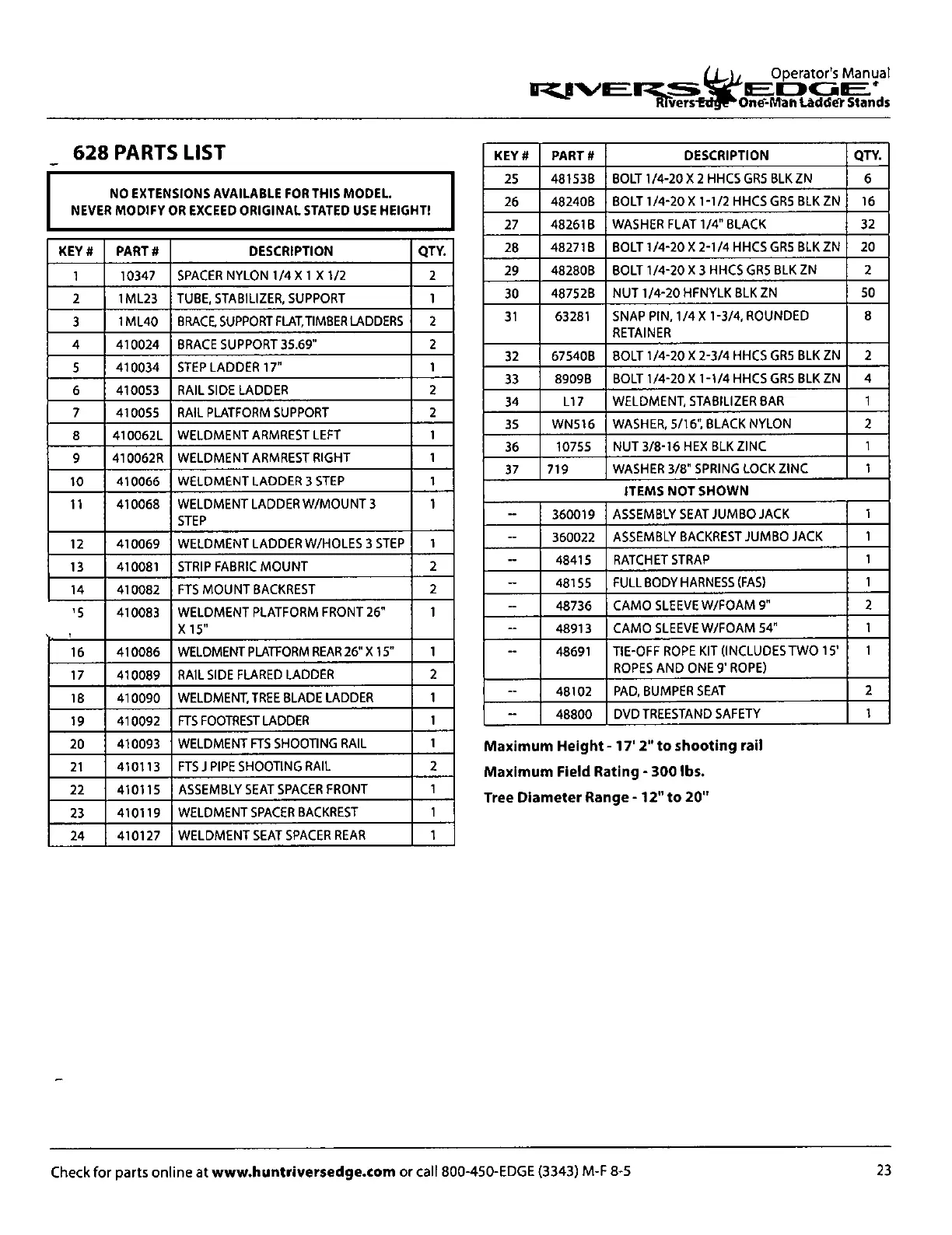

628 PARTS LIST
NO EXTENSIONS AVAILABLE FOR THIS MODEL.
NEVER MODIFY OR EXCEED ORIGINAL STATED USE HEIGHT!
KEY #
PART #
DESCRIPTION
QTY.
1
10347
SPACER NYLON 1/4 X 1 X1/2
2
2
1ML23
TUBE, STABILIZER, SUPPORT
1
3
1ML40
BRACE, SUPPORT FLAT,TIMBER LADDERS
2
4
410024
BRACE SUPPORT 35.69"
2
5
410034
STEP LADDER 17"
1
6
410053
RAIL SIDE LADDER
2
7
410055
RAIL PLATFORM SUPPORT
2
8
410062L
WELDMENT ARMREST LEFT
1
9
410062R
WELDMENT ARMREST RIGHT
10
410066
WELDMENT LADDER 3 STEP
1
11
410068
WELDMENT LADDER W/MOUNT 3
STEP
1
12
410069
WELDMENT LADDER W/HOLES 3 STEP
1
13
410081
STRIP FABRIC MOUNT
2
14
410082
FTS MOUNT BACKREST
2
15
,
410083
WELDMENT PLATFORM FRONT 26"
Xis"
1
16
410086
WELDMENT PLATFORM REAR 26" X 15"
1
17
410089
RAIL SIDE FLARED LADDER
2
18
410090
WELDMENT, TREE BLADE LADDER
1
19
410092
FTS FOOTREST LADDER
1
20
410093
WELDMENT FTS SHOOTING RAIL
1
21
410113
FTS 1 PIPE SHOOTING RAIL
2
22
410115
ASSEMBLY SEAT SPACER FRONT
1
23
410119
WELDMENT SPACER BACKREST
1
24
410127
WELDMENT SEAT SPACER REAR
1
KEY #
PART #
DESCRIPTION
QTY.
25
481538
BOLT 1/4-20 X 2 HHCS GR5 BLK ZN
6
26
48240B
BOLT 1/4-20 X 1-1/2 HHCS GR5 BLK ZN
16
27
482618
WASHER FLAT 1/4" BLACK
32
28
4827113
BOLT 1/4-20 X 2-
1
/
4
HHCS GR5 BLK ZN
20
29
48280B
BOLT 1/4-20 X 3 HHCS GR5 BLK ZN
2
30
48752B
NUT 1/4-20 HFNYLK BLK ZN
50
31
63281
SNAP PIN, 1/4 X 1-3/4, ROUNDED
RETAINER
8
32
67540B
BOLT 1/4-20 X 2-3/4 HHCS GR5 BLK ZN
2
33
8909B
BOLT 1/4-20 X 1-1/4 HHCS GR5 BLK ZN
4
34
L17
WELDMENT, STABILIZER BAR
1
35
WN516
WASHER, 5/16", BLACK NYLON
2
36
10755
NUT 3/8-16 HEX BLK ZINC
1
37
719
WASHER 3/8" SPRING LOCK ZINC
1
ITEMS NOT SHOWN
—
360019
ASSEMBLY SEAT JUMBO JACK
1
--
360022
ASSEMBLY BACKREST JUMBO JACK
1
--
48415
RATCHET STRAP
1
--
48155
FULL BODY HARNESS (FAS)
1
—
48736
CAMO SLEEVE W/FOAM 9"
2
--
48913
CAMO SLEEVE W/FOAM 54"
1
--
48691
TIE-OFF ROPE KIT (INCLUDES TWO 15'
ROPES AND ONE 9' ROPE)
1
--
48102
PAD, BUMPER SEAT
2
—
48800
DVD TREESTAND SAFETY
1
Maximum Height - 17' 2" to shooting
rail
Maximum Field Rating -300 lbs.
Tree Diameter Range -12" to 20"
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
23
