spring lock pins
stabilizer bar
extension tube
'
<stabilizer bar
spring lock pins
Figure 4
Figure 5

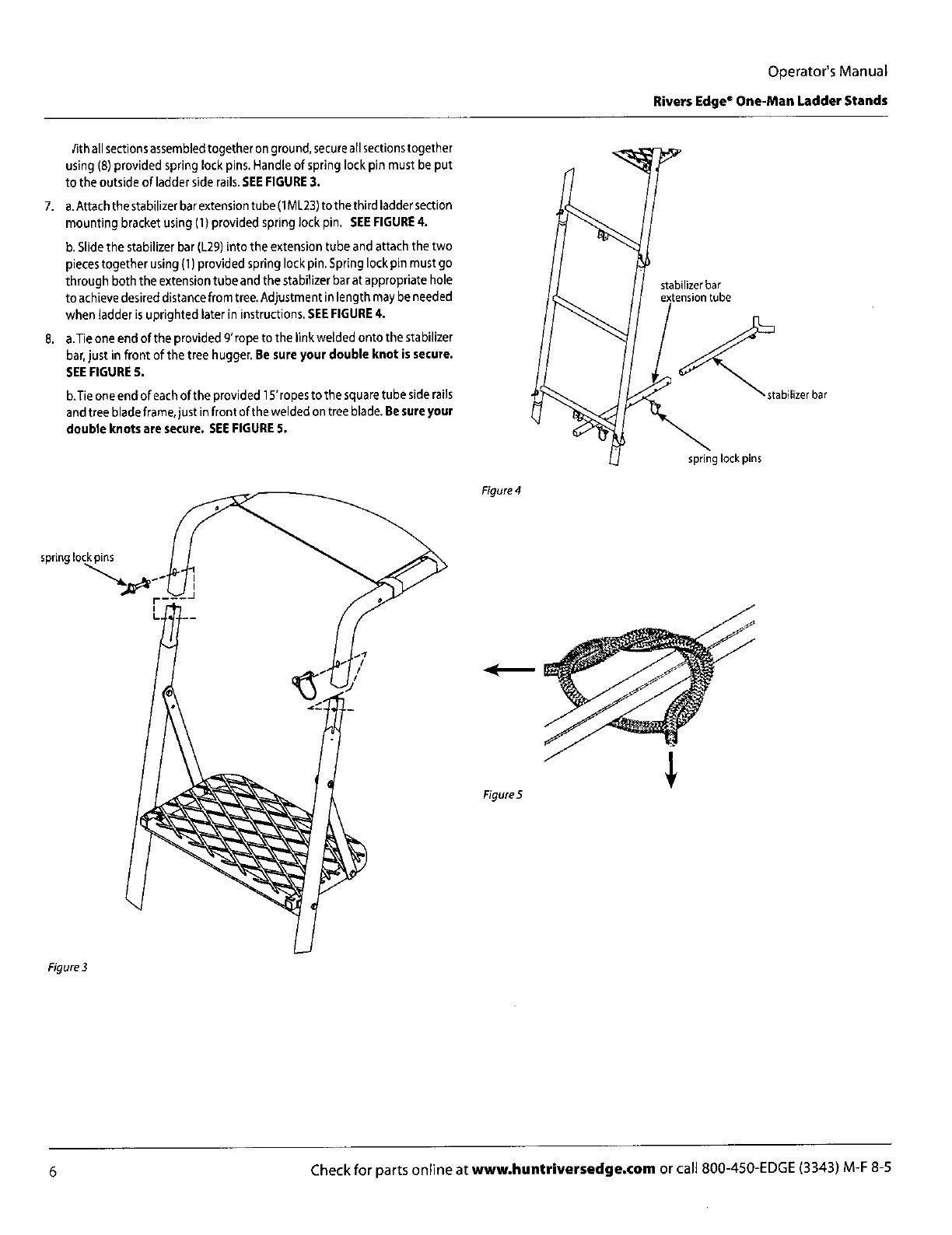

Operator's Manual
Rivers Edge One-Man Ladder Stands
nth all sections assembled together on ground, secure all sections together
using (8) provided spring lock pins. Handle of spring lock pin must be put
to the outside of ladder side rails.
SEE FIGURE 3.
a. Attach the stabilizer bar extension tube (1ML23) to the third ladder section
mounting bracket using (1) provided spring lock pin.
SEE FIGURE 4.
b. Slide the stabilizer bar (L29) into the extension tube and attach the two
pieces together using (1) provided spring lock pin. Spring lock pin must go
through both the extension tube and the stabilizer bar at appropriate hole
to achieve desired distance from tree. Adjustment in length may be needed
when ladder is uprighted later in instructions.
SEE FIGURE 4.
a.Tie one end of the provided 9' rope to the link welded onto the stabilizer
bar, just in front of the tree hugger.
Be sure your double knot is secure.
SEE FIGURES.
b.Tie one end of each of the provided 15' ropes to the square tube side rails
and tree blade frame, just in front of the welded on tree blade.
Be sure your
double knots are secure. SEE FIGURES.
Figure 3
6
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
