IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN OUT IN OUT IN OUT IN OUT
RJM Music Technology, Inc.
www.rjmmusic.com

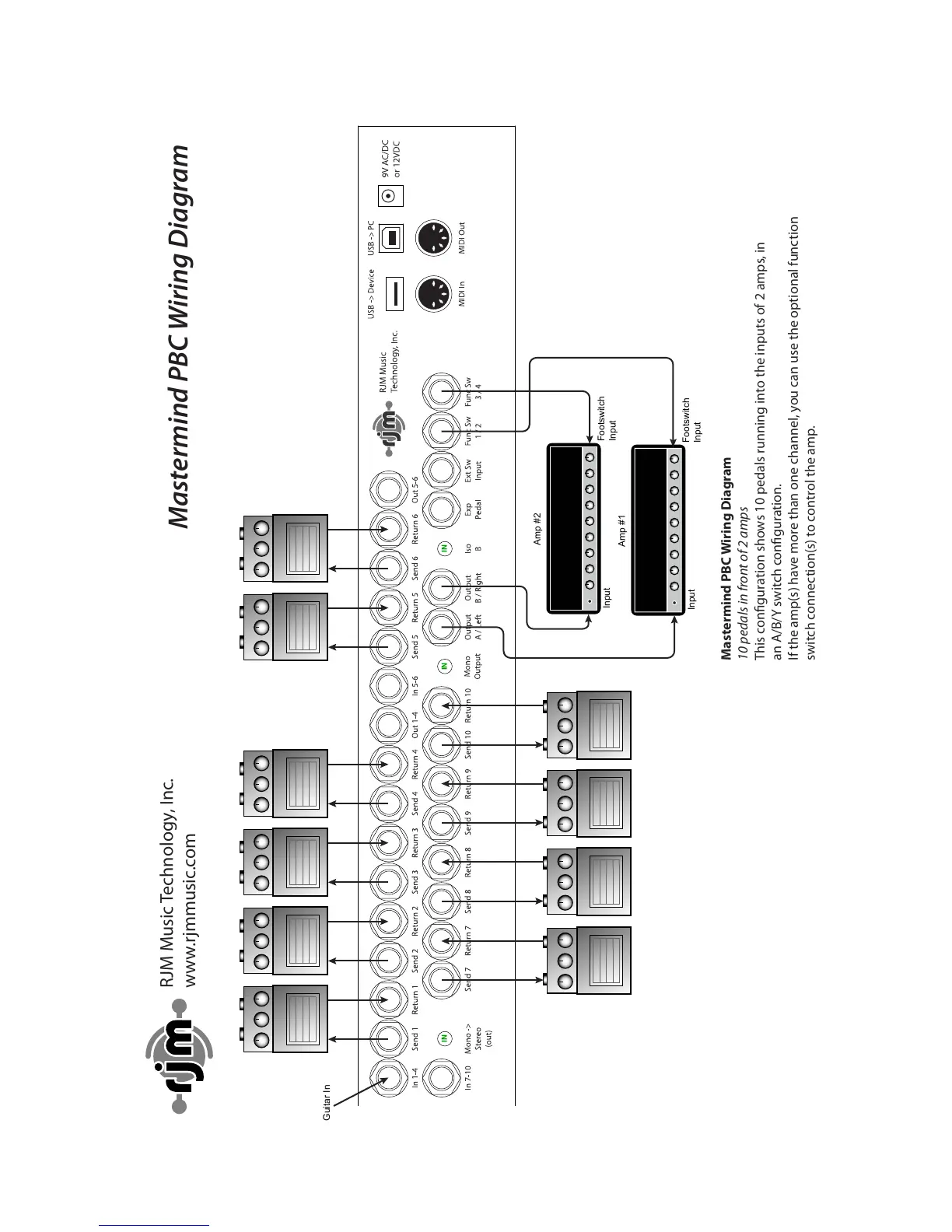

Mastermind PBC Wiring Diagram
Mastermind PBC Wiring Diagram
10 pedals in front of 2 amps
This conguration shows 10 pedals running into the inputs of 2 amps, in
an A/B/Y switch conguration.
If the amp(s) have more than one channel, you can use the optional function
switch connection(s) to control the amp.
ININ IN
Input
Amp #1
Footswitch
Input
Input
Amp #2
Guitar In
Footswitch
Input
