Mastermind PBC Wiring Diagram

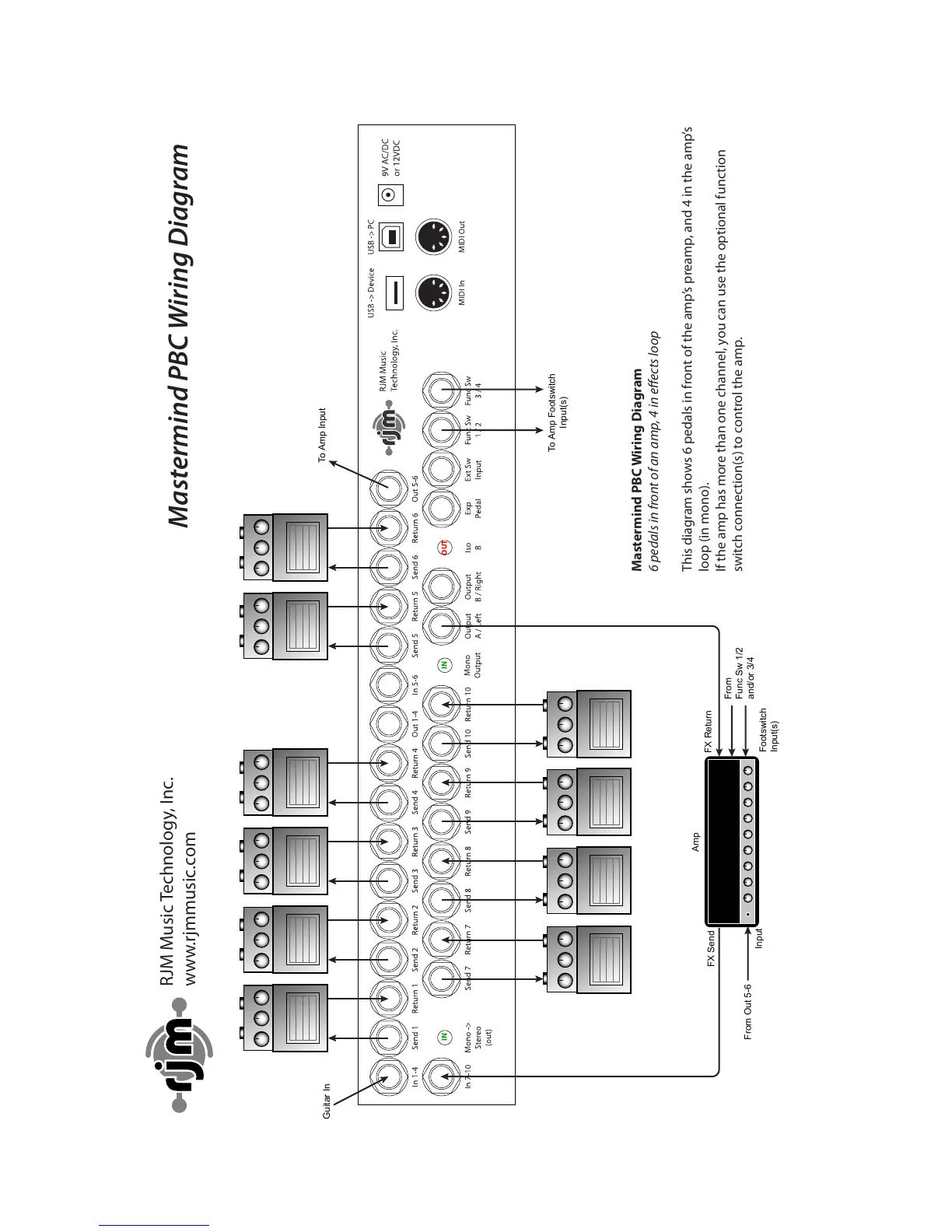

Mastermind PBC Wiring Diagram 6 pedals in front of an amp, 4 in eects loop This diagram shows 6 pedals in front of the amp’s preamp, and 4 in the amp’s loop (in mono). If the amp has more than one channel, you can use the optional function switch connection(s) to control the amp.
OUTIN IN
Input
Amp
Guitar In
Footswitch Input(s)
To Amp Input
From Out 5-6
FX Send
FX Return
From Func Sw 1/2 and/or 3/4
To Amp Footswitch
Input(s)
