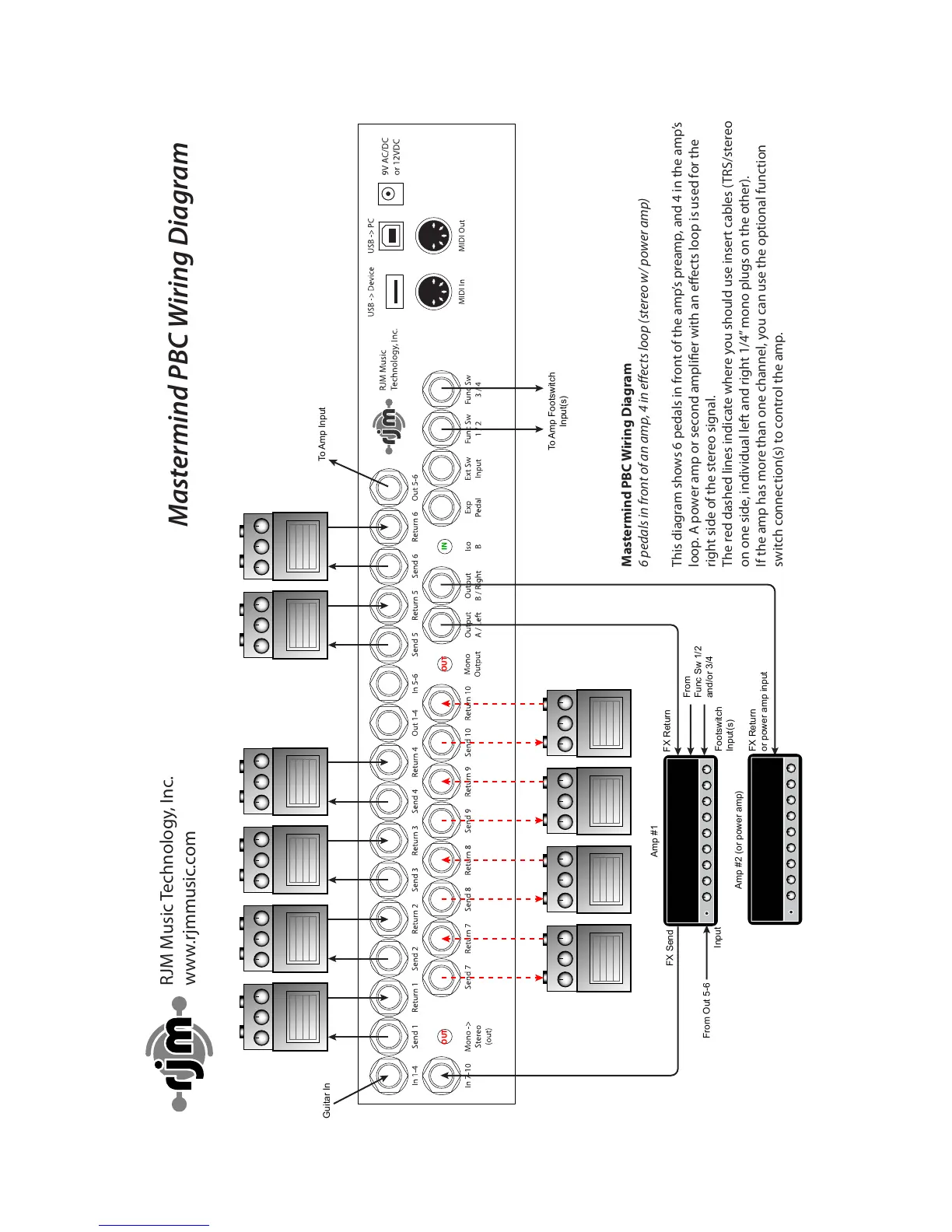

Mastermind PBC Wiring Diagram
Mastermind PBC Wiring Diagram
6 pedals in front of an amp, 4 in eects loop (stereo w/ power amp)
This diagram shows 6 pedals in front of the amps preamp, and 4 in the amps
loop. A power amp or second amplier with an eects loop is used for the
right side of the stereo signal.
The red dashed lines indicate where you should use insert cables (TRS/stereo
on one side, individual left and right 1/4” mono plugs on the other).
If the amp has more than one channel, you can use the optional function
switch connection(s) to control the amp.
IN
OUTOUT
Input
Amp #1
Guitar In
Footswitch
Input(s)
To Amp Input
From Out 5-6
FX Send
FX Return
From
Func Sw 1/2
and/or 3/4
To Amp Footswitch
Input(s)
Amp #2 (or power amp)
FX Return
or power amp input
