DINETTE TABLE:
Remove the table leg from it's stored position and place it in the floor base receptacle, located in the aisle way at
the rear on the floor. The table top is stored under the driver side rear bed cushion, (see Picture B-P6) in the dinette
units, or under the driver side ottoman cushion in the power sofa units (See Picture B-P5A). Place the table top on
table leg, (see Pictures B-P5, B-P5A).
When returning table top to the storage position ensure the table base is placed correctly in the table base receptacle
located on top of the rear driver side bench or ottoman, (see Pictures B-P6, B-P6A). Return table leg to the storage
clip in the aisle way, (see Picture B-P4).

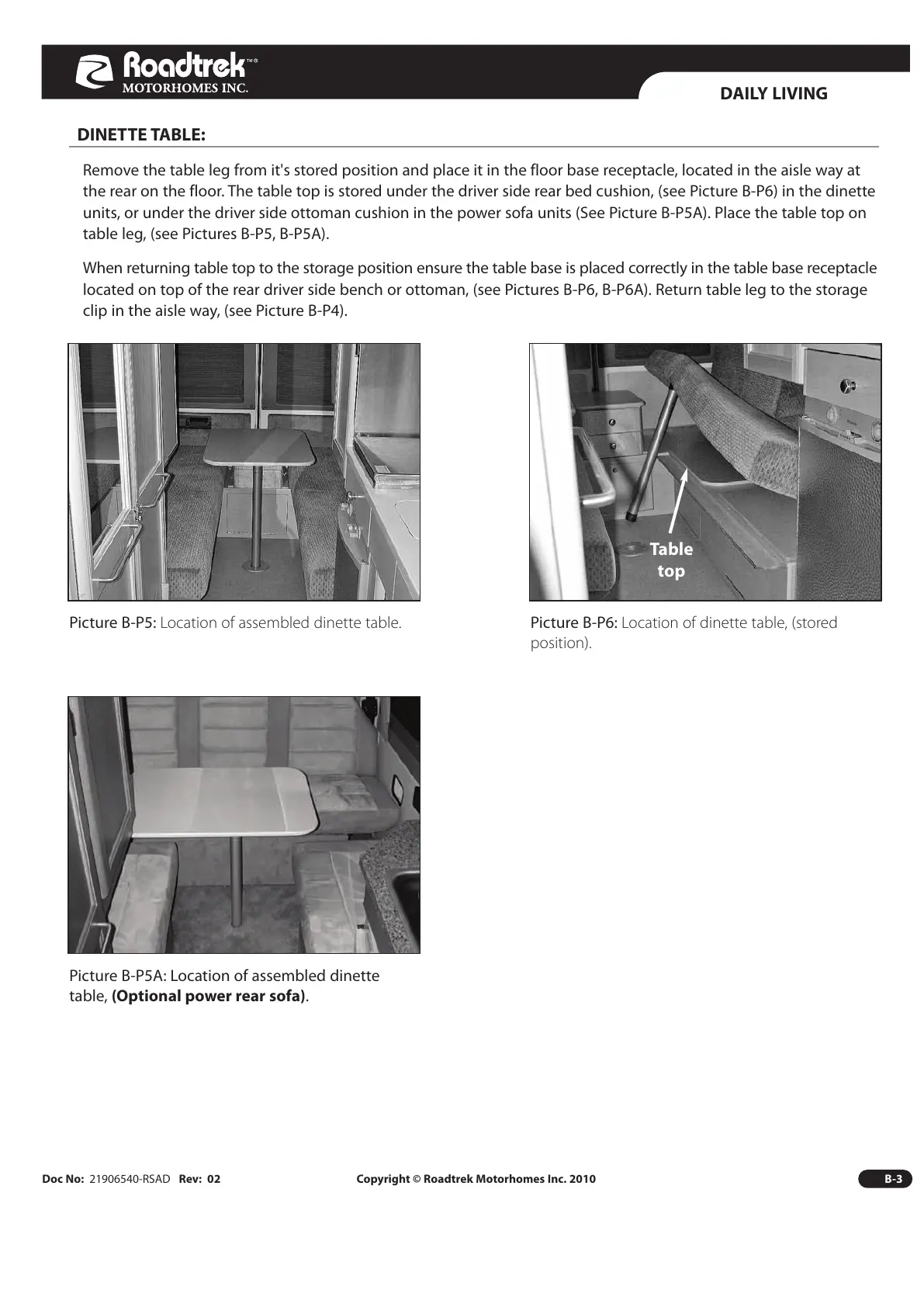

Picture B-P6: Location of dinette table, (stored
position).
Picture B-P5: Location of assembled dinette table.
Table
top
Picture B-P5A: Location of assembled dinette
table, (Optional power rear sofa).
