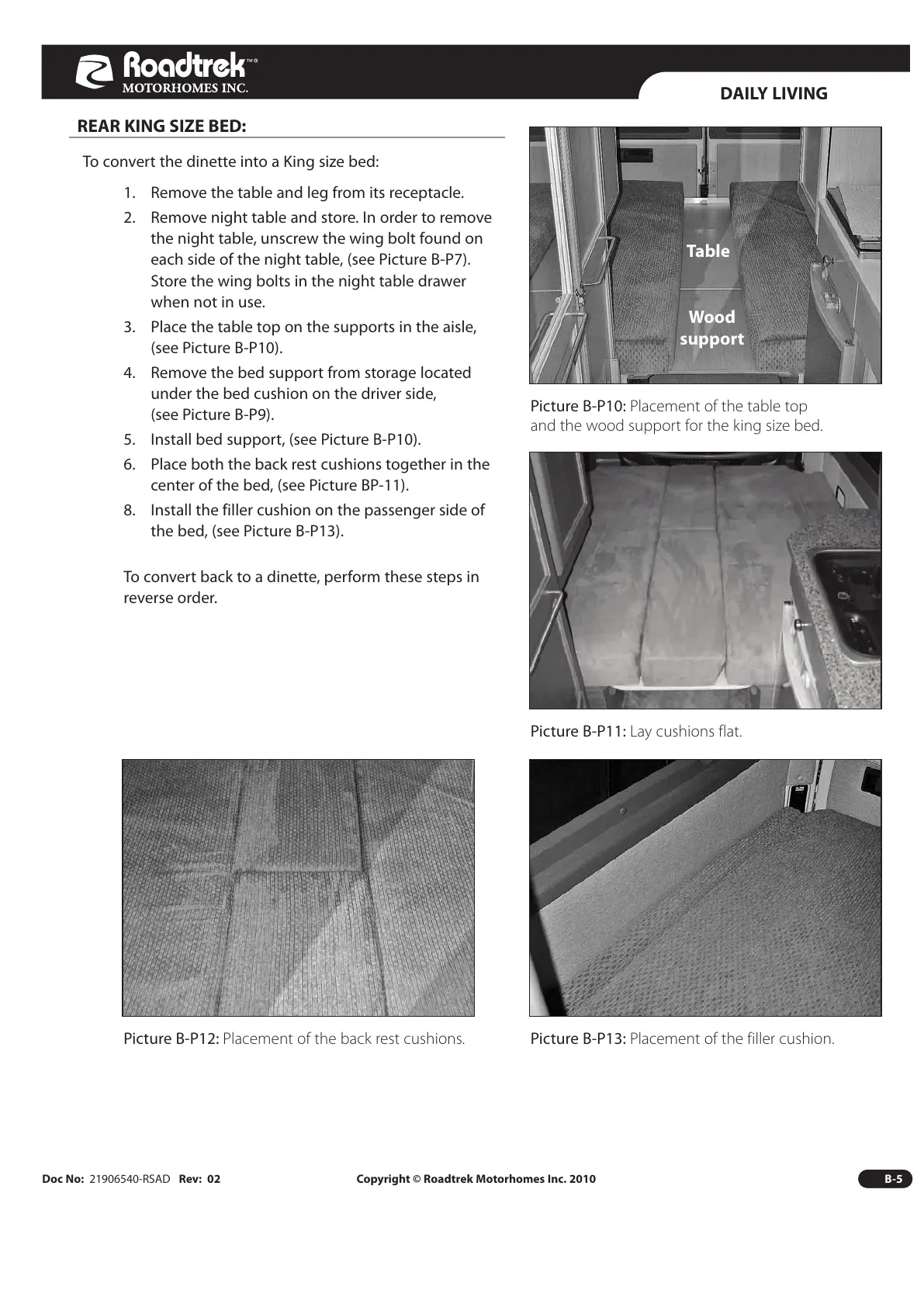

REAR KING SIZE BED:
To convert the dinette into a King size bed:
1. Remove the table and leg from its receptacle.
2. Remove night table and store. In order to remove
the night table, unscrew the wing bolt found on
each side of the night table, (see Picture B-P7).
Store the wing bolts in the night table drawer
when not in use.
3. Place the table top on the supports in the aisle,
(see Picture B-P10).
4. Remove the bed support from storage located
under the bed cushion on the driver side,
(see Picture B-P9).
5. Install bed support, (see Picture B-P10).
6. Place both the back rest cushions together in the
center of the bed, (see Picture BP-11).
8. Install the filler cushion on the passenger side of
the bed, (see Picture B-P13).
To convert back to a dinette, perform these steps in
reverse order.
Picture B-P11: Lay cushions flat.
Picture B-P13: Placement of the filler cushion.Picture B-P12: Placement of the back rest cushions.
Picture B-P10: Placement of the table top
and the wood support for the king size bed.
