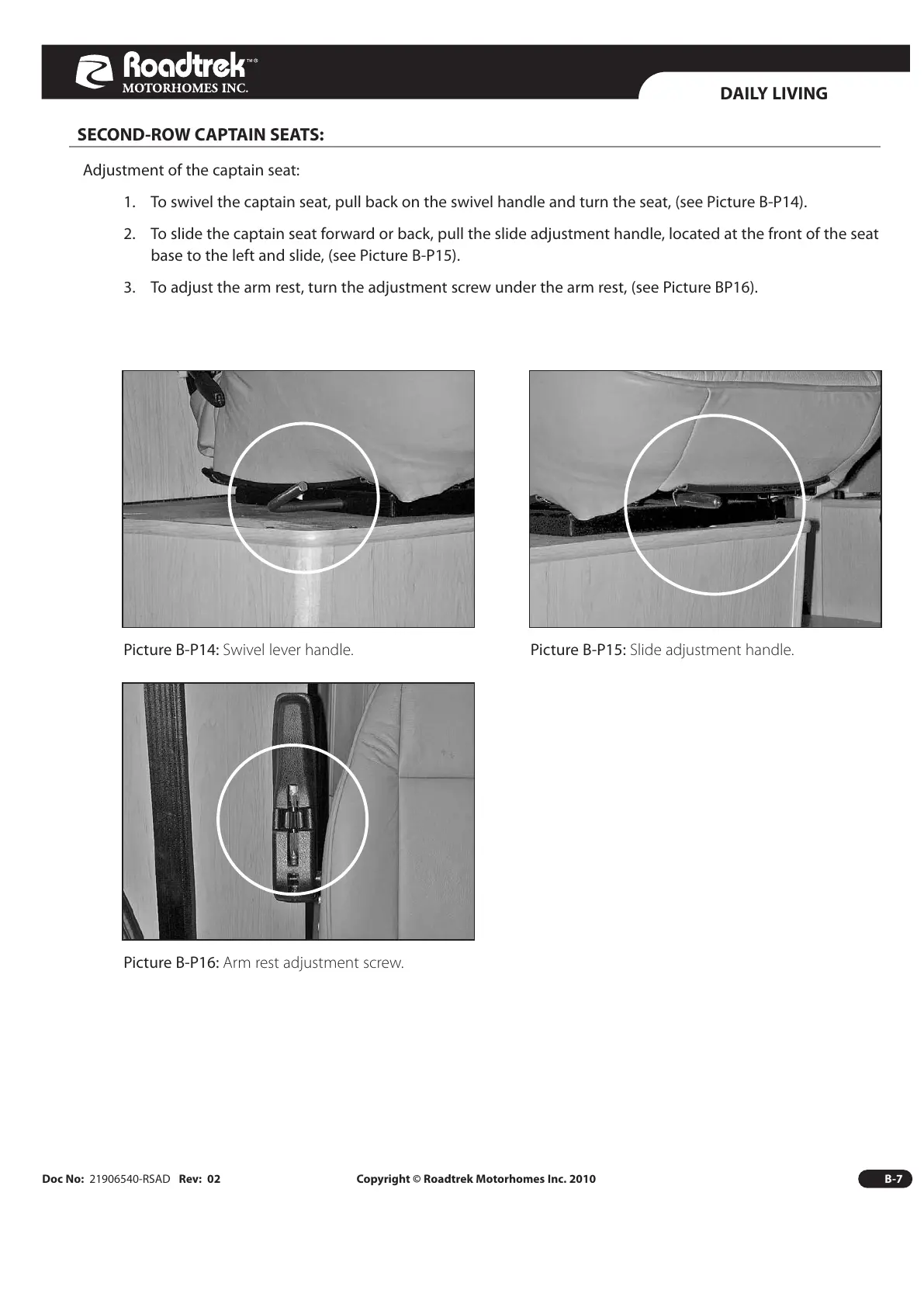

SECOND-ROW CAPTAIN SEATS:
Adjustment of the captain seat:
1. To swivel the captain seat, pull back on the swivel handle and turn the seat, (see Picture B-P14).
2. To slide the captain seat forward or back, pull the slide adjustment handle, located at the front of the seat
base to the left and slide, (see Picture B-P15).
3. To adjust the arm rest, turn the adjustment screw under the arm rest, (see Picture BP16).
DAILY LIVING
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 B-7
Picture B-P15: Slide adjustment handle.Picture B-P14: Swivel lever handle.
Picture B-P16: Arm rest adjustment screw.
