Waste Water Tank Dumping:
To dump the exterior black waste water tank:
1. Turn the battery disconnect switch to the “ON”
position, if not already on, (located on the
monitor panel).
2. Remove the sewage discharge hose from storage,
(see Picture G-P8).
3. Insert the discharge outlet into the waste
receptacle.
4. Open the valve on the end of the sewage hose,
(see Picture G-P8).
5. Open the black water tank gate valve by pulling
the gate valve handle out, (black water tank gate
valve has a black handle), (see Picture G-P9#1).
6. Open the driver’s door, press and hold the macerator
pump, (red) button until the tank is empty,
(see Picture G-P11).
7. Close the Black water
To dump the grey waste water tank:
1. Open the grey water tank gate valve
(grey water tank gate valve has a grey handle).
2. Open the driver's door, press and hold the
macerator pump, (red) button until the grey waste
tank is empty, (see picture G-P11).
3. Close both of the gate valve handles by pushing
them back in to the original positions.
4. Close the sewage discharge valve on the end of
the sewage hose.
5. Return the sewage hose to its storage
compartment.
6. Turn battery disconnect to the “OFF” position
(optional).
NOTE: It is recommended to always dump the black
water tank first, then the grey water tank to flush
out the sewage discharge system.
NOTE: If the macerator should become clogged, you
can push the manual macerator crank handle in
to engage the slotted rod, and turn clockwise to
dislodge any debris that might be blocking the
macerator, (see picture G-P10).
WATER SYSTEMS
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 G-5

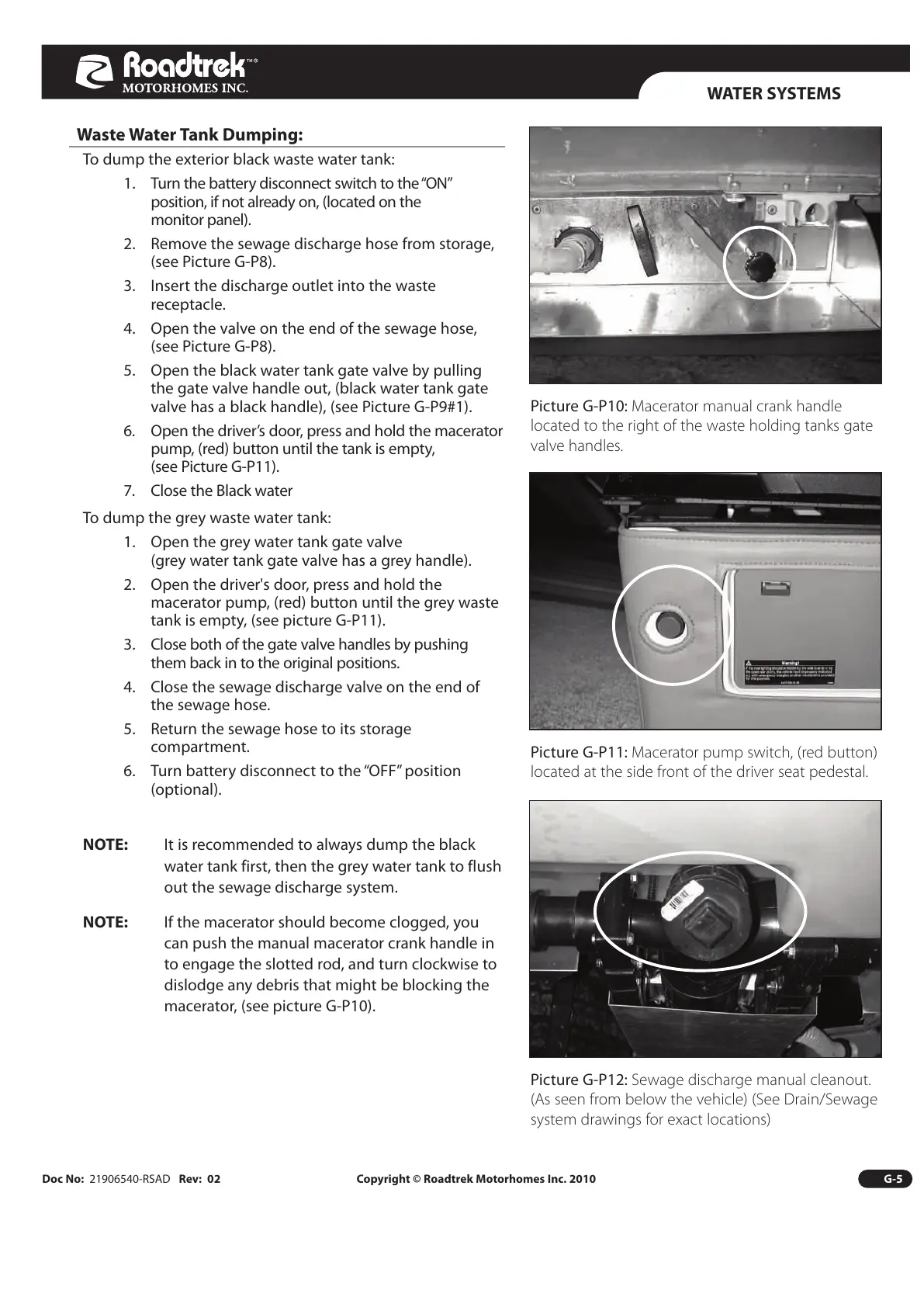

Picture G-P11: Macerator pump switch, (red button)
located at the side front of the driver seat pedestal.
Picture G-P12: Sewage discharge manual cleanout.
(As seen from below the vehicle) (See Drain/Sewage
system drawings for exact locations)
Picture G-P10: Macerator manual crank handle
located to the right of the waste holding tanks gate
valve handles.
