Roadtrek Sprinter - Waste Water Storage and Dumping

WATER SYSTEMS
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 G-4
To disconnect the city fresh water connection:
1. Turn off the external fresh water source.
2. Open the sink faucet to relieve the pressure in the system,
(failure to do so may result in an unexpected shower).
3. Ensure that the city fresh water tank fill valve is closed, (see Picture G-P7).
4. Remove the hose from the city fresh water connection, replace the cap on the city fresh water fill
connection.
WASTE WATER STORAGE AND DUMPING SYSTEM:
Your vehicle is equipped with a waste water storage and dumping system that will provide adequate and effective
storage and dumping of waste water. Your vehicle should be as
level as possible to allow optimal operation of the system.
CAUTION: Ensure that both the black and the grey water gate
valves are closed, (inward position) before using the waste
water system. This applies especially after extended driving.
Black and grey water dump valves are accessed behind the
long driver side storage door, (see Picture G-P8 and G-P9).
Waste Water Tank Preparation:
Your vehicle is equipped with two waste water tanks; the
grey waste water tank is for waste water from the sink and
shower. The black waste water tank is for sewage from the
toilet. Both tanks are equipped with separate dump valves
so that each may be dumped independently. Before use of
either waste tank, be sure to read instructions provided by
the toilet manufacturer regarding the use of waste water
chemicals. We suggest that such chemicals be used every
time to minimize odours and build up of solids on the water
level sensors inside the tanks.

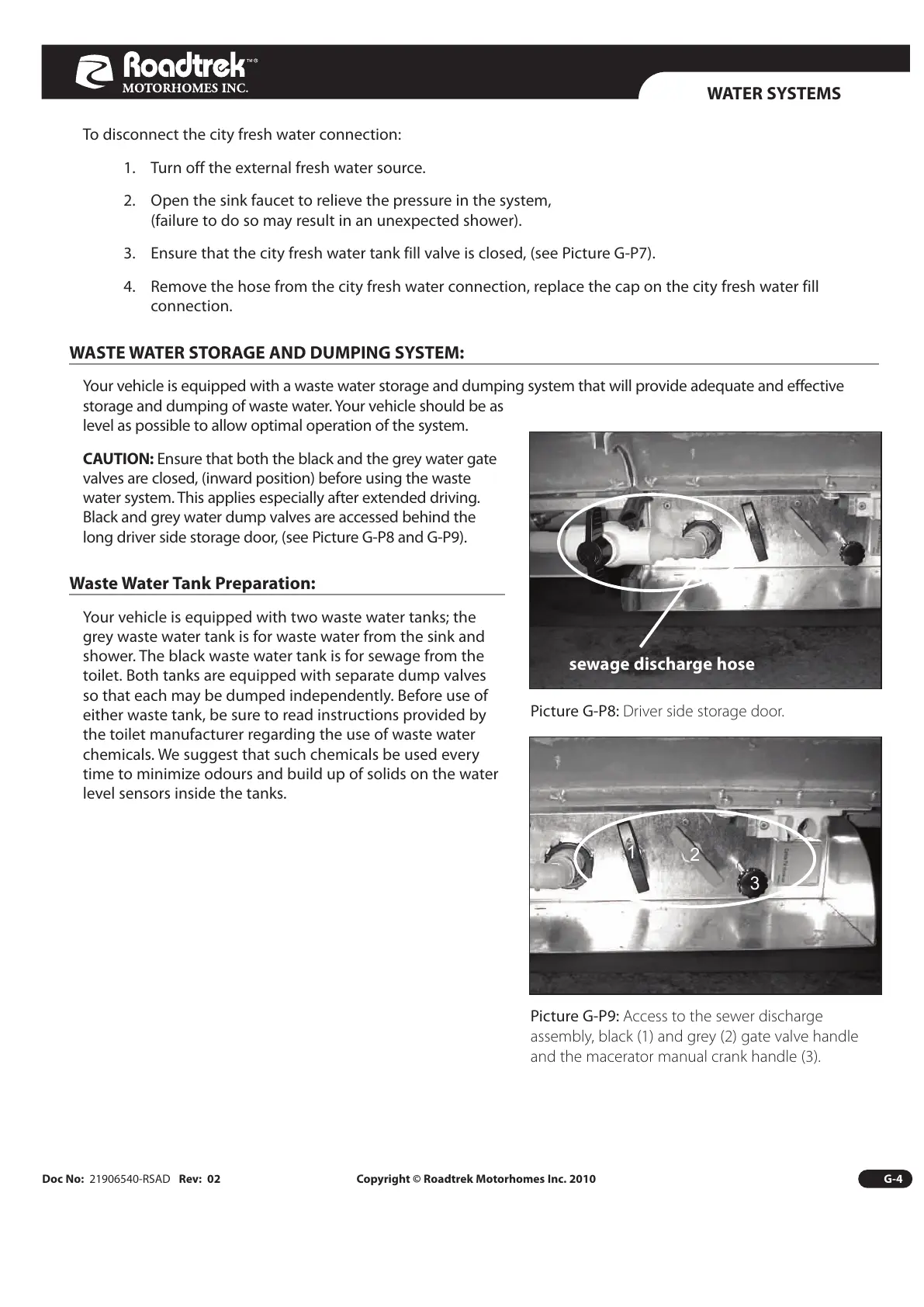

Picture G-P8: Driver side storage door.
Picture G-P9: Access to the sewer discharge
assembly, black (1) and grey (2) gate valve handle
and the macerator manual crank handle (3).
sewage discharge hose
1
2
3
