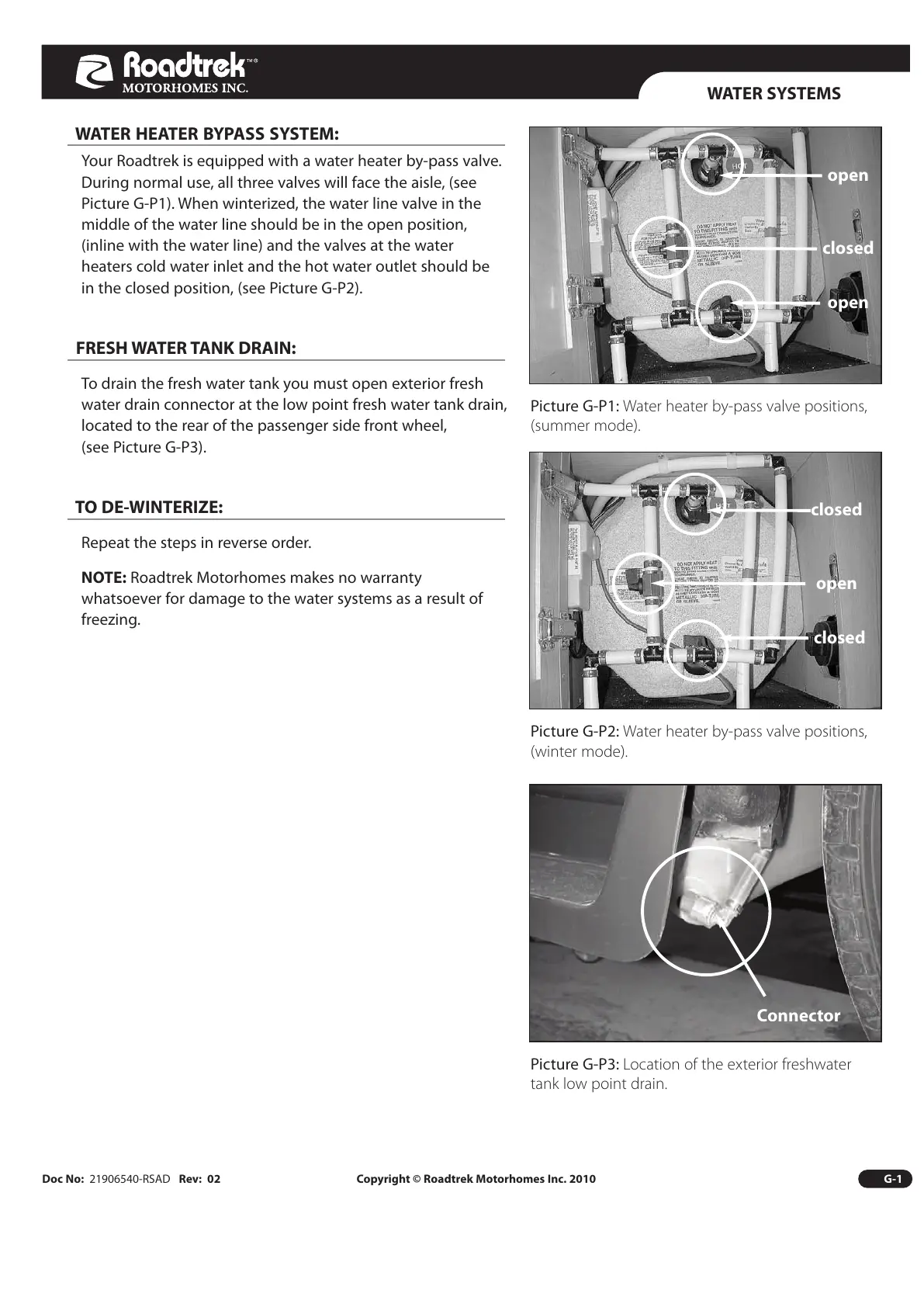

WATER SYSTEMS
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 G-1
WATER HEATER BYPASS SYSTEM:
Your Roadtrek is equipped with a water heater by-pass valve.
During normal use, all three valves will face the aisle, (see
Picture G-P1). When winterized, the water line valve in the
middle of the water line should be in the open position,
(inline with the water line) and the valves at the water
heaters cold water inlet and the hot water outlet should be
in the closed position, (see Picture G-P2).
FRESH WATER TANK DRAIN:
To drain the fresh water tank you must open exterior fresh
water drain connector at the low point fresh water tank drain,
located to the rear of the passenger side front wheel,
(see Picture G-P3).
TO DE-WINTERIZE:
Repeat the steps in reverse order.
NOTE: Roadtrek Motorhomes makes no warranty
whatsoever for damage to the water systems as a result of
freezing.
Picture G-P1: Water heater by-pass valve positions,
(summer mode).
Picture G-P2: Water heater by-pass valve positions,
(winter mode).
Picture G-P3: Location of the exterior freshwater
tank low point drain.
open
closed
open
closed
open
closed
Connector
