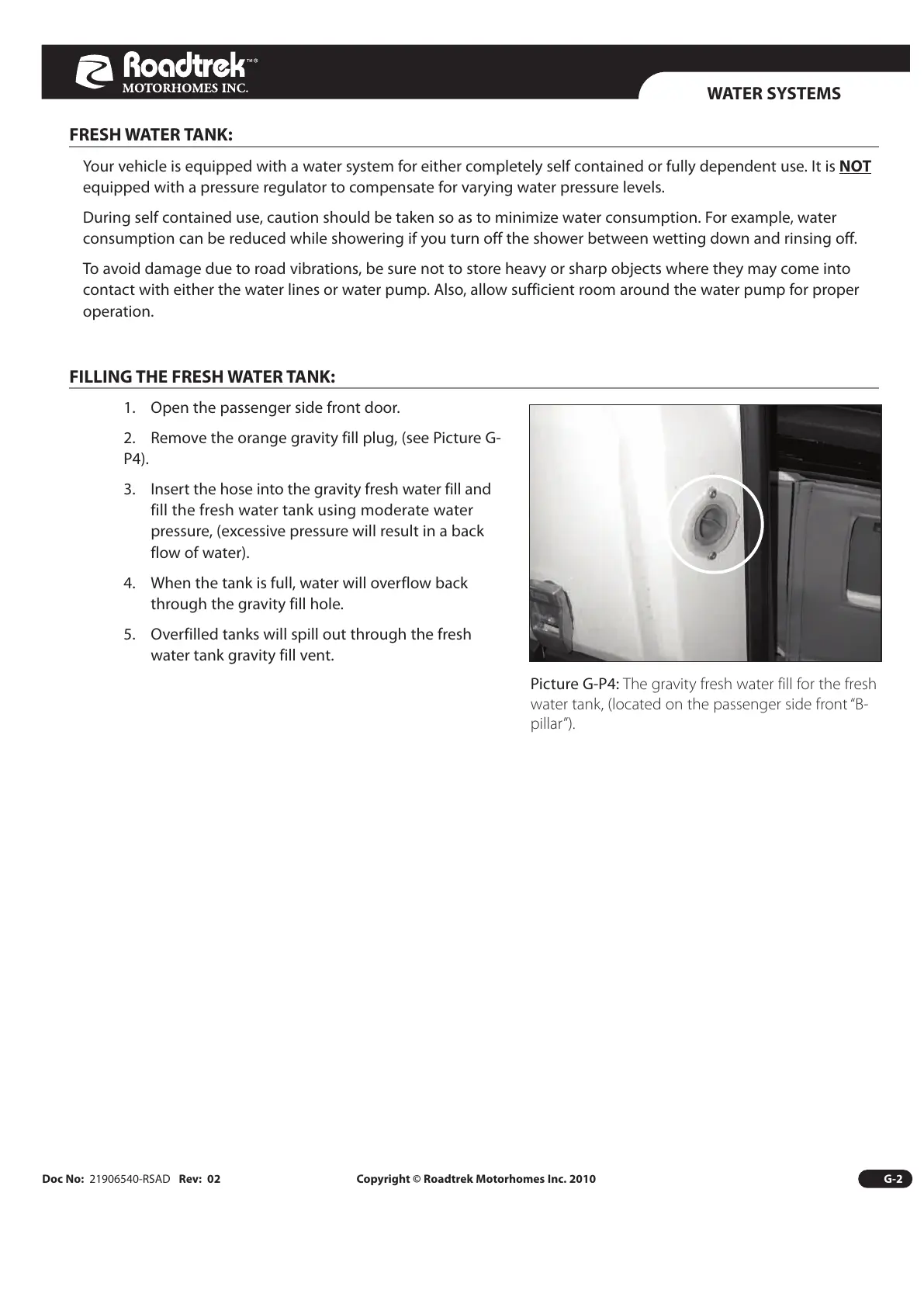

FRESH WATER TANK:
Your vehicle is equipped with a water system for either completely self contained or fully dependent use. It is NOT
equipped with a pressure regulator to compensate for varying water pressure levels.
During self contained use, caution should be taken so as to minimize water consumption. For example, water
consumption can be reduced while showering if you turn off the shower between wetting down and rinsing off.
To avoid damage due to road vibrations, be sure not to store heavy or sharp objects where they may come into
contact with either the water lines or water pump. Also, allow sufficient room around the water pump for proper
operation.
FILLING THE FRESH WATER TANK:
1. Open the passenger side front door.
2. Remove the orange gravity fill plug, (see Picture G-
P4).
3. Insert the hose into the gravity fresh water fill and
fill the fresh water tank using moderate water
pressure, (excessive pressure will result in a back
flow of water).
4. When the tank is full, water will overflow back
through the gravity fill hole.
5. Overfilled tanks will spill out through the fresh
water tank gravity fill vent.
WATER SYSTEMS
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 G-2
Picture G-P4: The gravity fresh water fill for the fresh
water tank, (located on the passenger side front “B-
pillar”).
