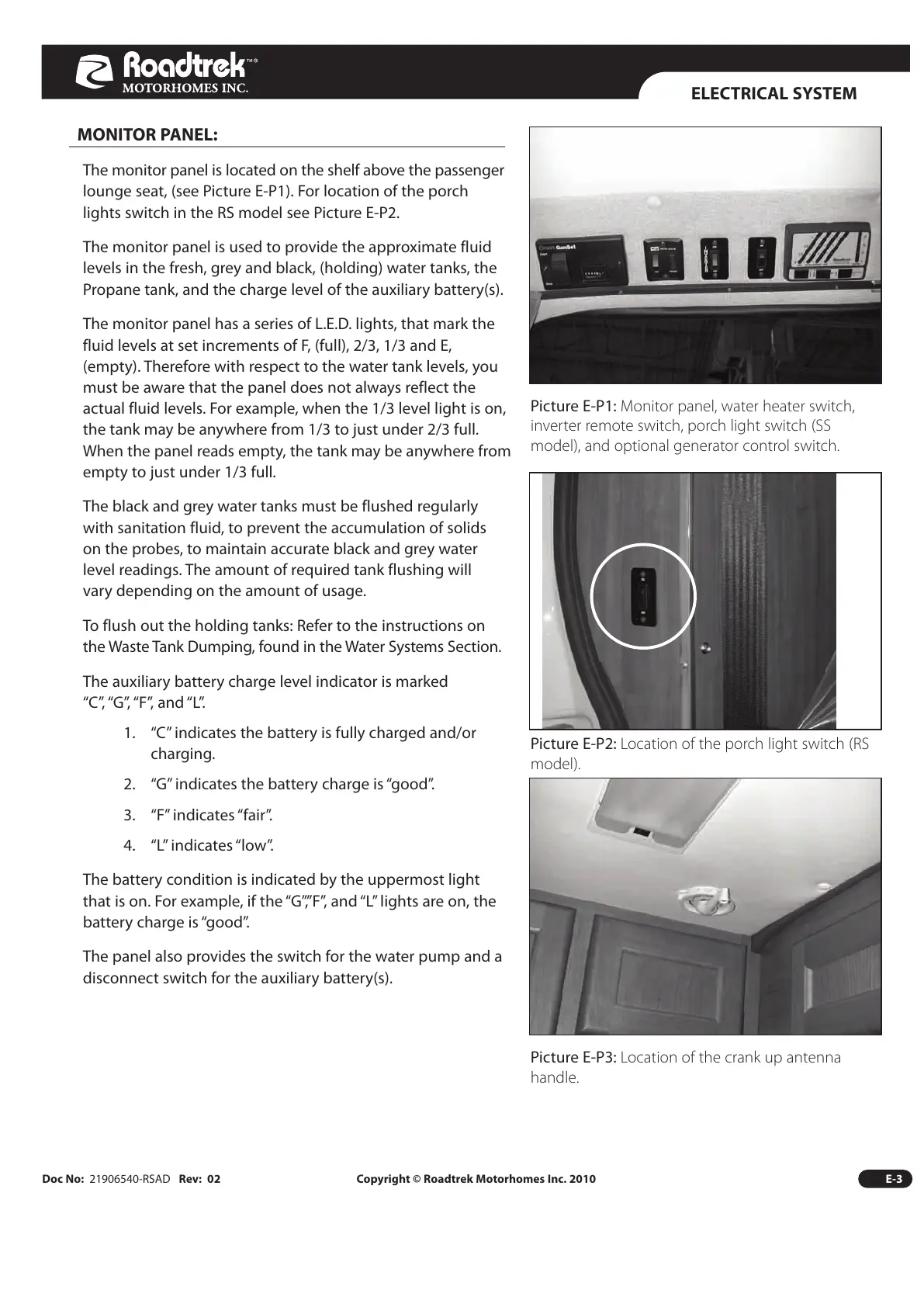

ELECTRICAL SYSTEM
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 E-3
MONITOR PANEL:
The monitor panel is located on the shelf above the passenger
lounge seat, (see Picture E-P1). For location of the porch
lights switch in the RS model see Picture E-P2.
The monitor panel is used to provide the approximate fluid
levels in the fresh, grey and black, (holding) water tanks, the
Propane tank, and the charge level of the auxiliary battery(s).
The monitor panel has a series of L.E.D. lights, that mark the
fluid levels at set increments of F, (full), 2/3, 1/3 and E,
(empty). Therefore with respect to the water tank levels, you
must be aware that the panel does not always reflect the
actual fluid levels. For example, when the 1/3 level light is on,
the tank may be anywhere from 1/3 to just under 2/3 full.
When the panel reads empty, the tank may be anywhere from
empty to just under 1/3 full.
The black and grey water tanks must be flushed regularly
with sanitation fluid, to prevent the accumulation of solids
on the probes, to maintain accurate black and grey water
level readings. The amount of required tank flushing will
vary depending on the amount of usage.
To flush out the holding tanks: Refer to the instructions on
the Waste Tank Dumping, found in the Water Systems Section.
The auxiliary battery charge level indicator is marked
“C”, “G”, “F”, and “L”.
1. “C” indicates the battery is fully charged and/or
charging.
2. “G” indicates the battery charge is “good”.
3. “F” indicates “fair”.
4. “L” indicates “low”.
The battery condition is indicated by the uppermost light
that is on. For example, if the “G”,”F”, and “L” lights are on, the
battery charge is “good”.
The panel also provides the switch for the water pump and a
disconnect switch for the auxiliary battery(s).
Picture E-P2: Location of the porch light switch (RS
model).
Picture E-P3: Location of the crank up antenna
handle.
Picture E-P1: Monitor panel, water heater switch,
inverter remote switch, porch light switch (SS
model), and optional generator control switch.
