DAILY LIVING
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 B-6

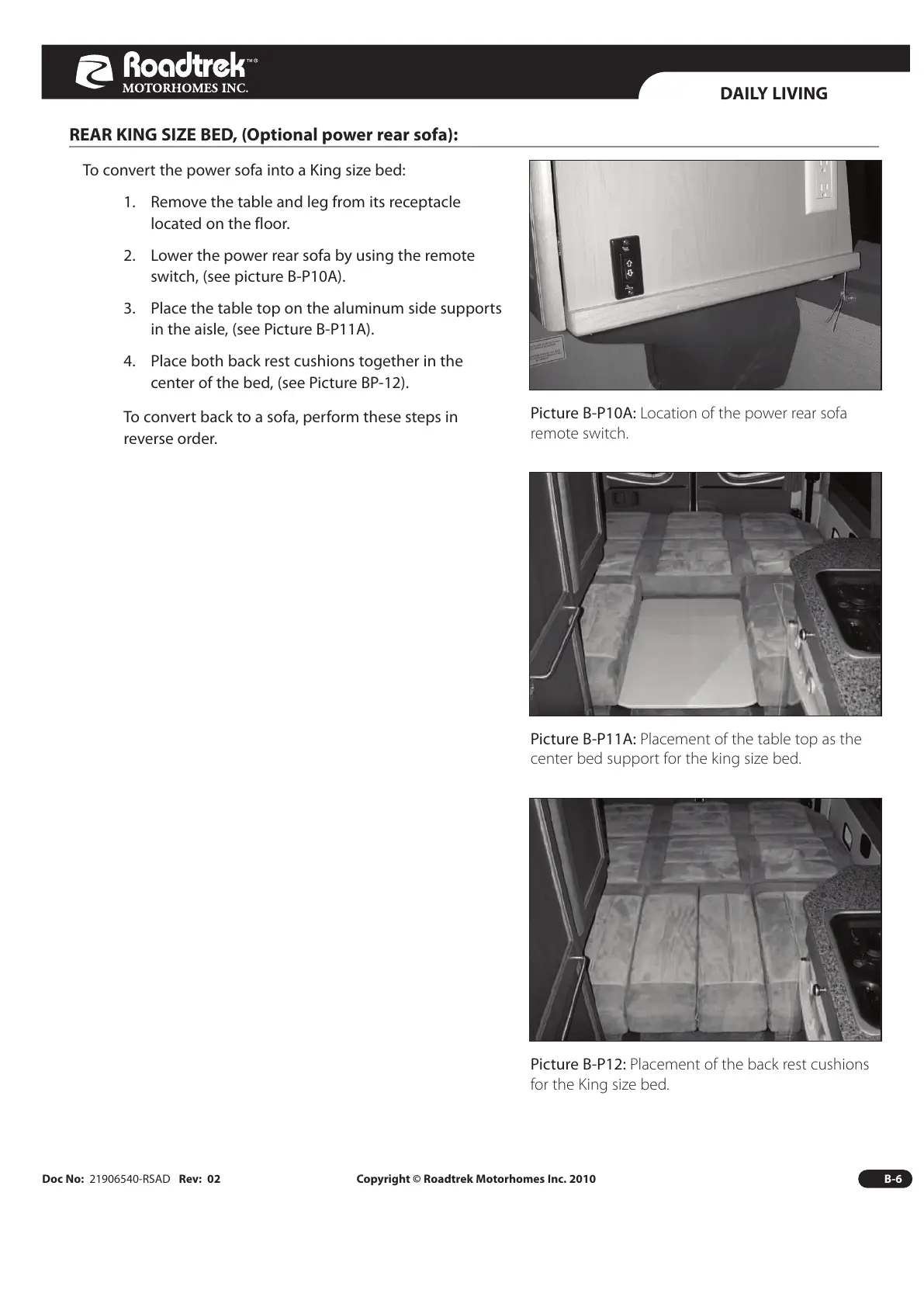

REAR KING SIZE BED, (Optional power rear sofa):
To convert the power sofa into a King size bed:
1. Remove the table and leg from its receptacle
located on the floor.
2. Lower the power rear sofa by using the remote
switch, (see picture B-P10A).
3. Place the table top on the aluminum side supports
in the aisle, (see Picture B-P11A).
4. Place both back rest cushions together in the
center of the bed, (see Picture BP-12).
To convert back to a sofa, perform these steps in
reverse order.
Picture B-P11A: Placement of the table top as the
center bed support for the king size bed.
Picture B-P10A: Location of the power rear sofa
remote switch.
Picture B-P12: Placement of the back rest cushions
for the King size bed.
