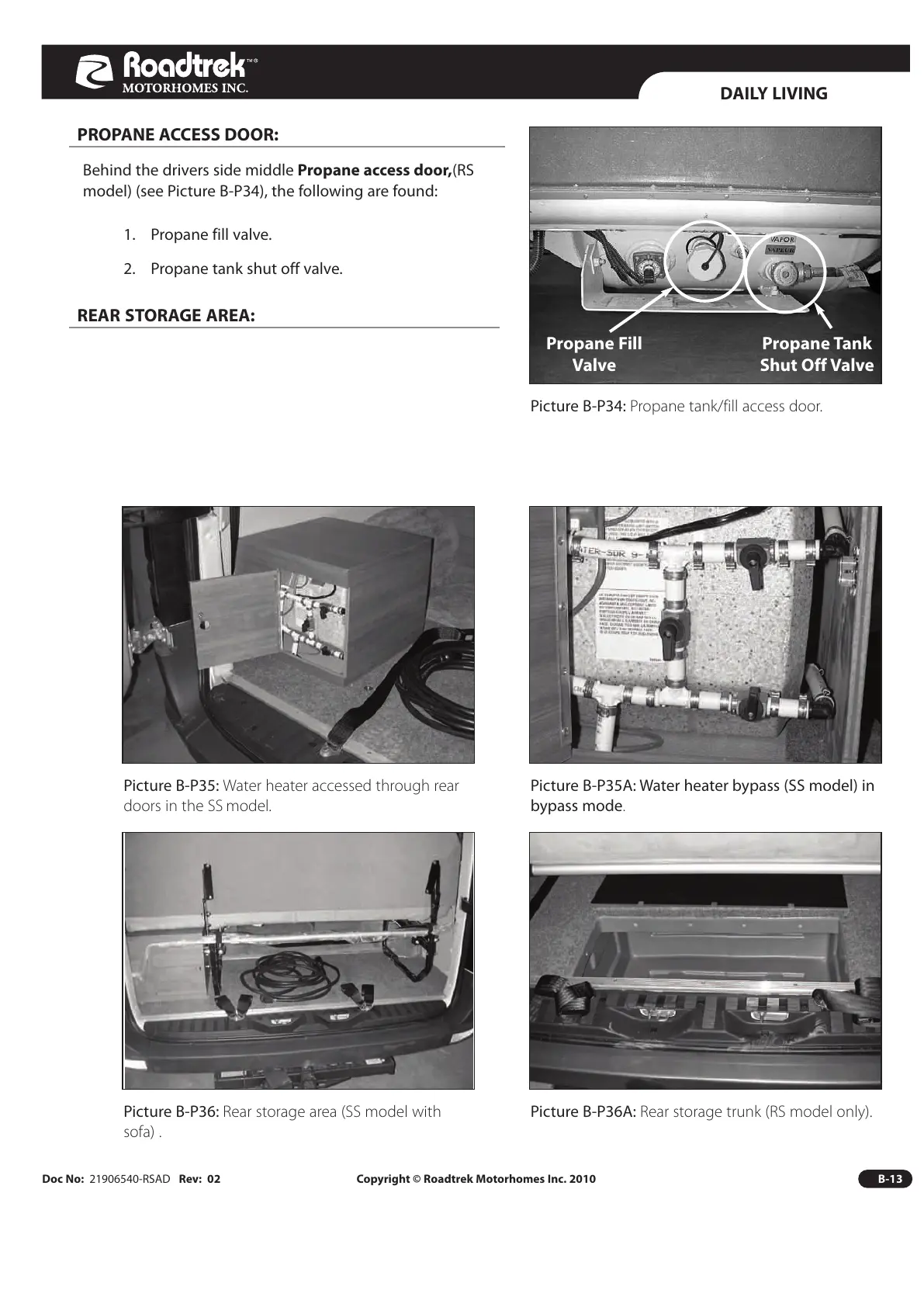

PROPANE ACCESS DOOR:
Behind the drivers side middle Propane access door,(RS
model) (see Picture B-P34), the following are found:
1. Propane fill valve.
2. Propane tank shut off valve.
REAR STORAGE AREA:
DAILY LIVING
Doc No: 21906540-RSAD Rev: 02 Copyright © Roadtrek Motorhomes Inc. 2010 B-13
Picture B-P35A: Water heater bypass (SS model) in
bypass mode.
Picture B-P36A: Rear storage trunk (RS model only).
Picture B-P36: Rear storage area (SS model with
sofa) .
Picture B-P34: Propane tank/fill access door.
Picture B-P35: Water heater accessed through rear
doors in the SS model.
Propane Tank
Shut Off Valve
Propane Fill
Valve
