Robe RoboSpot Base Station - Page 33

33

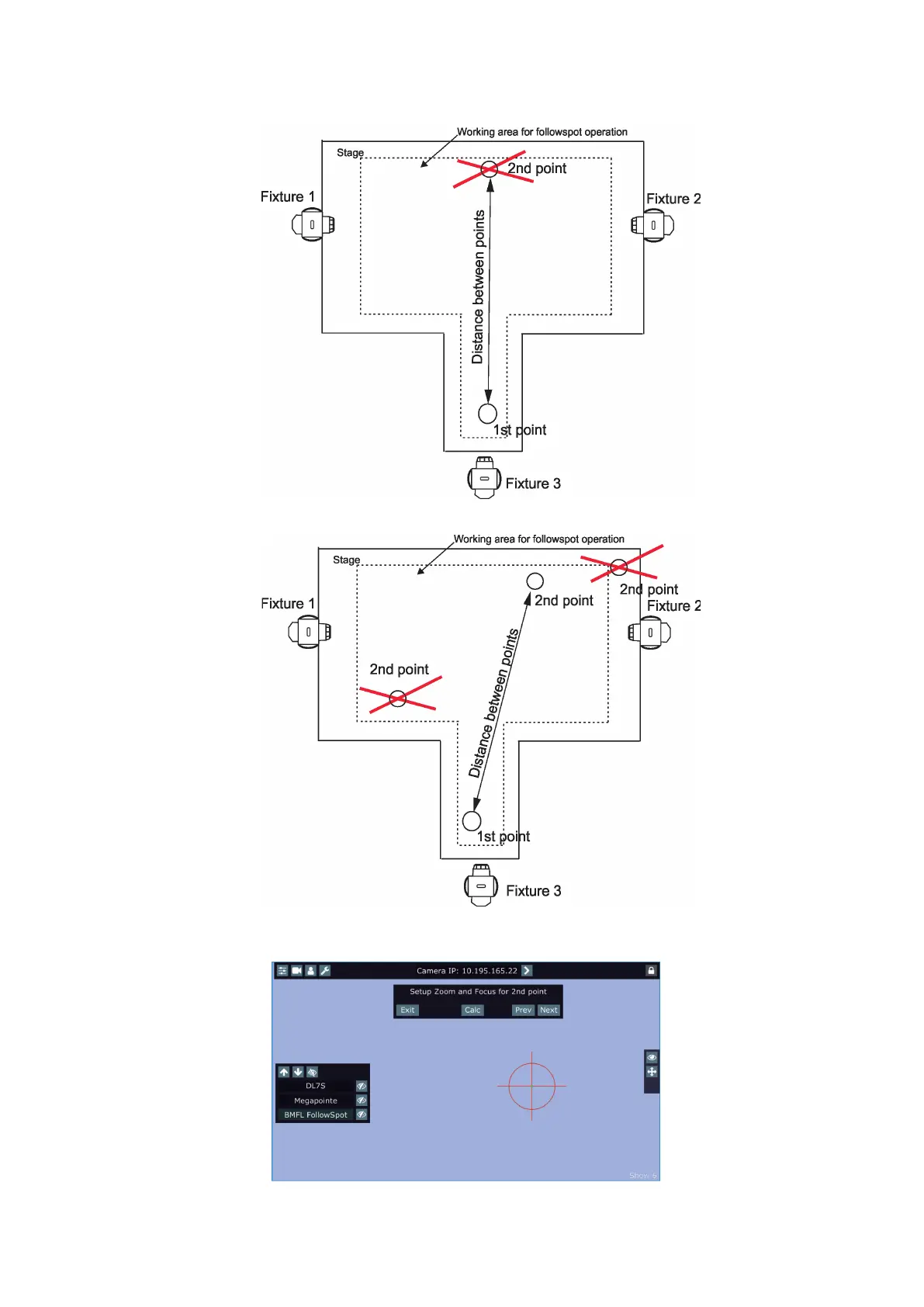

In the following example the xture 3 does not change its pan value (only tilt value) when head moves from the
1st point to the 2nd point, the 2nd point is not selected correctly.
Better position for the 2nd point:
7. Touch the Next button, the following message will appear on the screen:
