34

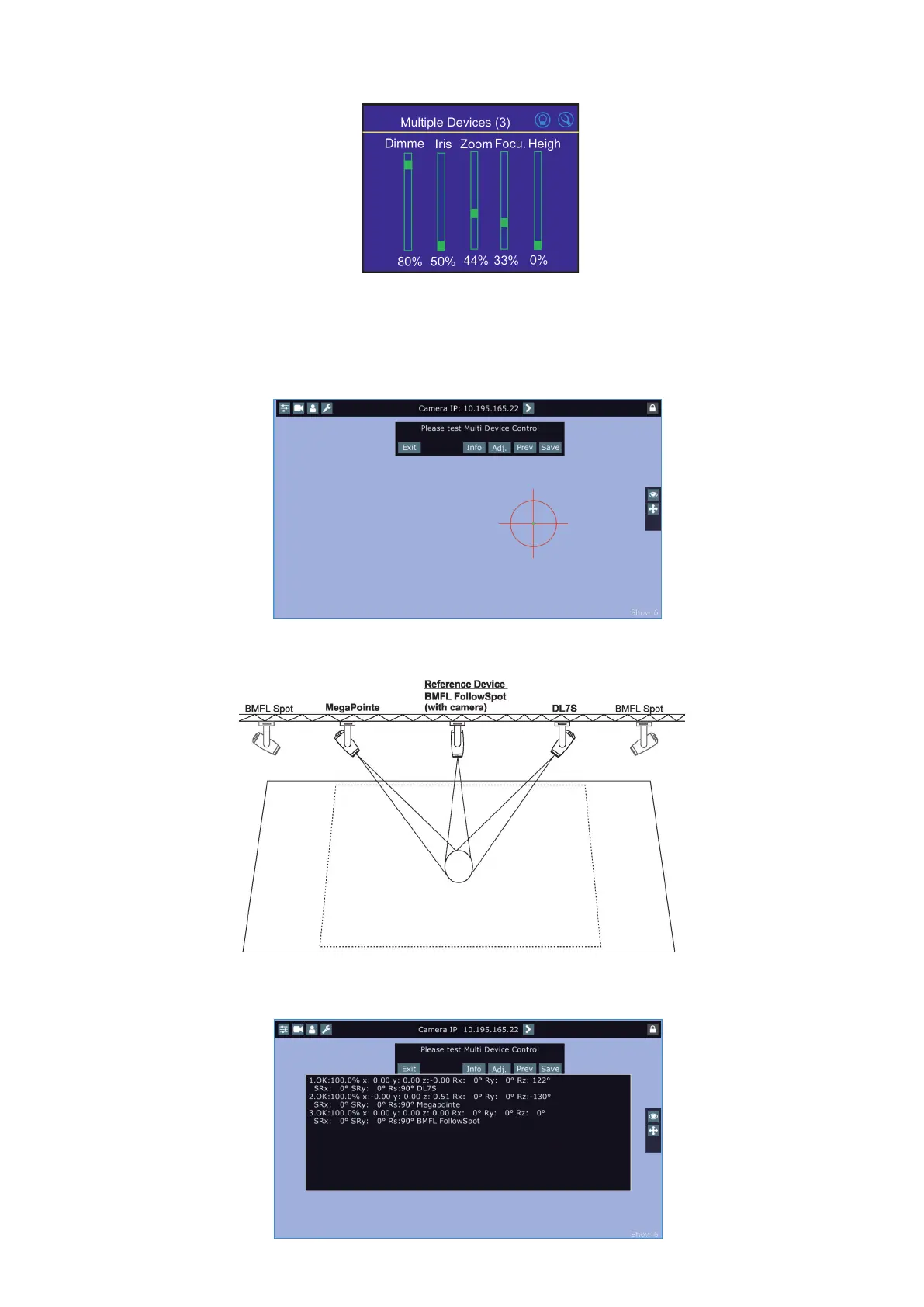

Use the jog-wheels on the FollowSpot Controller (or faders on the screen) to set desired zoom and focus in
the point 2 for each xture.
For information: if the option Multi device control is activated, both zoom and focus on all devices are set at
50%. The values are osets in relation to the zoom and focus values set at the rst and the second point.
Touch the "Calc" button.
8. The following message will appear on the screen:
Now you can test the multi device control (by means of the RoboSpot handles). If it is OK, touch the "Save"
button or you can use the "Prev" button to move one or more steps back and change setting.
The button "Info" shows information about current positions of xtures used in the follow spot operation.
Example:
