5.6 Multi device control
The RoboSpot can support more xtures in the follow spot operation.
The xtures used in the follow spot operation should be placed on a truss around the area intended for the follow
spot operation. The xtures can be placed above stage on one ( two or three) side(s) of the stage or around
the stage, placing inside the working area for the follow spot operation is not suitable .

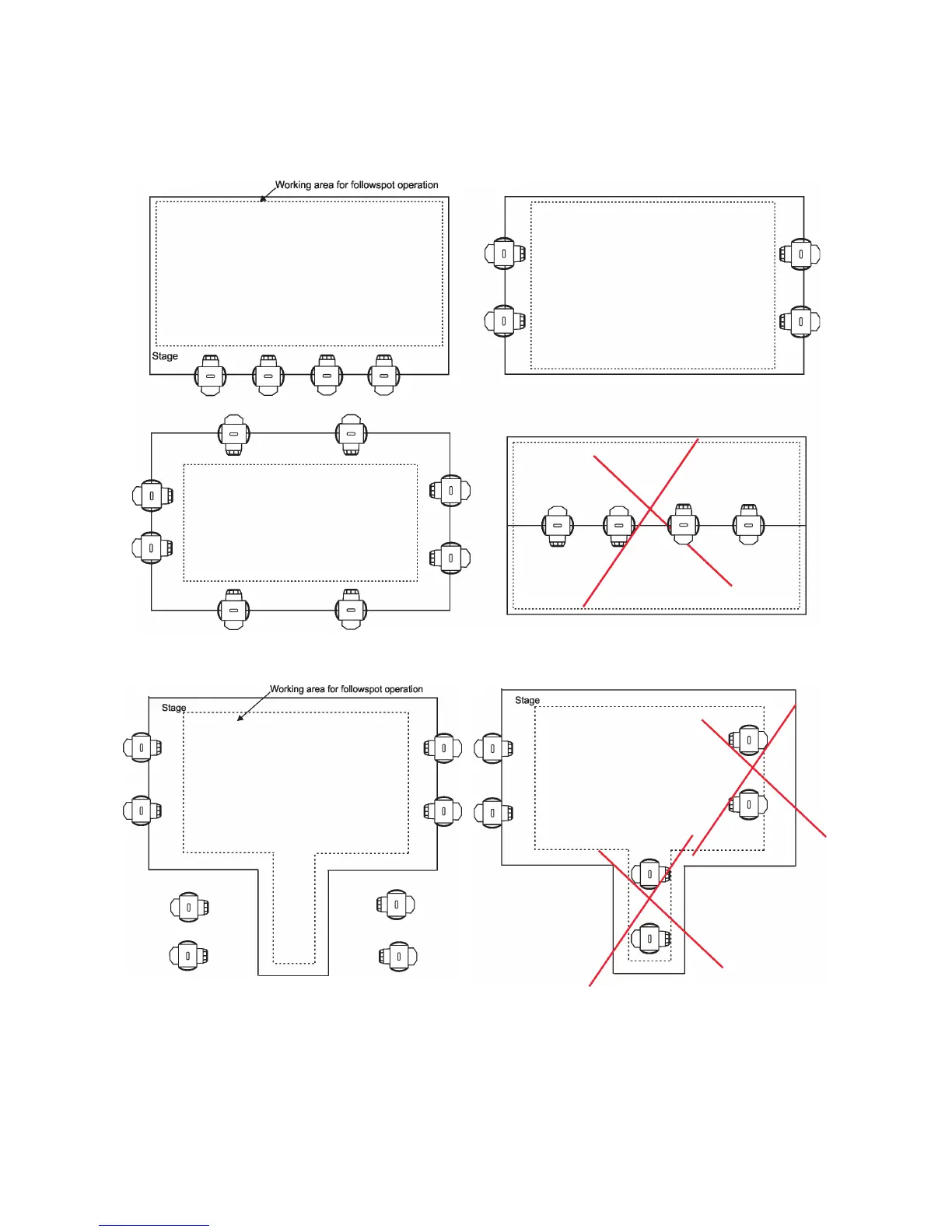

Some examples of possible arrangements of xtures above the stage:
