Robe RoboSpot - 9 Technical Specifications

41
9. Technical specications
Supported xtures: Robin BMFL FollowSpot/Spot/Blade/WashBeam, Robin Pointe,
MegaPointe, DL4S, DL7S
Input voltage: 100-240V AC
Power consumption: 15W (power factor=0.43, I=0.12A at 230V)
Fuse: T 2 A
LCD Monitor: ASUS VT168 H (panel size:15.6" , max. resolution:1366 x 768)
Setting & Control: graphic touch screen
Protocols: RDM, ArtNet, sACN,gMA I, gMA II
Control elements: 20 buttons, 4 jog-wheels and 2 faders
Connection: DMX In/Out: Locking 3-pin and 5-pin XLR
Ethernet: RJ 45
Camera: RJ 45
AC power: Neutrik PowerCon, A-type, NAC3MPA
Monitor: HDMI
USB lamp: 2x USB socket +5V/50mA
1 x USB
Pan rage: +/- 80°
Tilt range: +/- 40°
Fastening: via adaptor on tripod
Weights: 16.5 kg (RoboSpot), 1.9 kg (Monitor Shied + Note Holder), 1.7kg (Adaptor), 8.7 kg (Tripod)

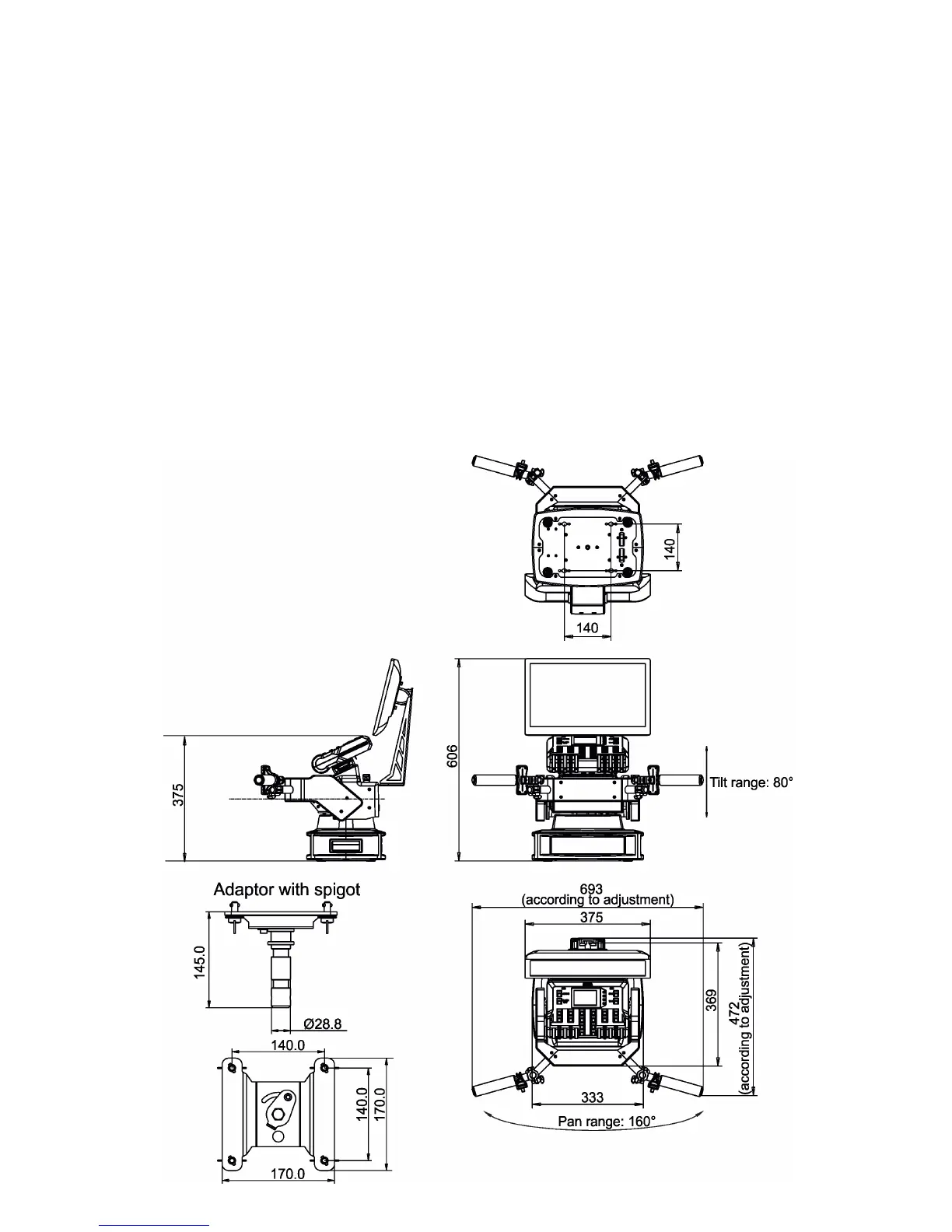

Dimensions (mm)
