2. Description of the the RoboSpot

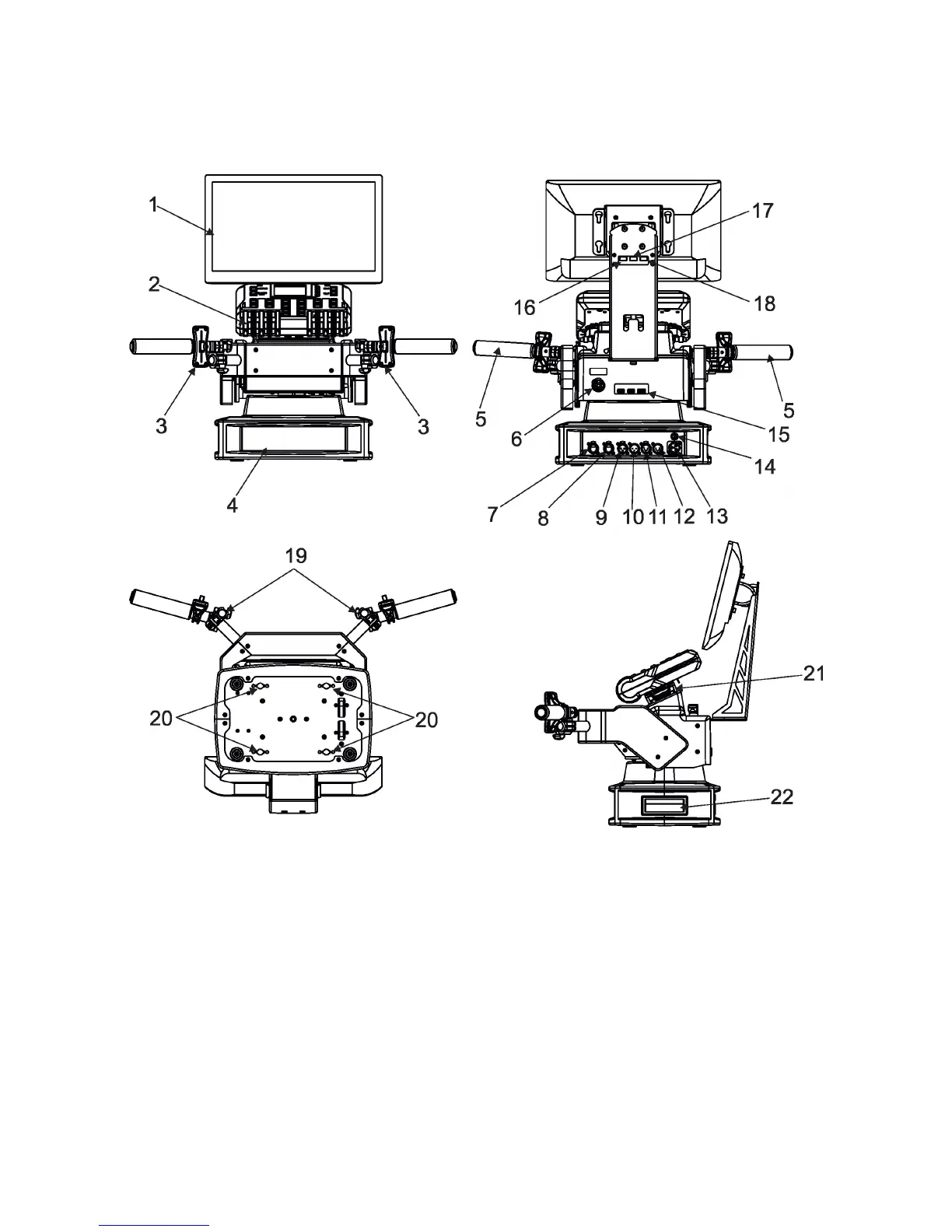

2.1 RoboSpot
1 - Monitor installed on the monitor holder 17 - USB (50mA)
2 - FollowSpot Controller 18 - Input for USB lamp (+5V/50mA)
3 - Faders 19 - Adjusting locks for handles
4 - Base 20 - Apertures for 1/4 turn locks
5 - Control handlebars 21 - Base of the FollowSpot Controller
6 - Monitor supply 22 - Manipulation handles
7 - Camera IN (RJ45)
8 - Ethernet (RJ45)
9- (DMX Out (3-pin XLR)
10 - (DMX In (3-pin XLR)
11- (DMX Out (5-pin XLR)
12 - (DMX In (5-pin XLR)
13 - Power (Neutrik PowerCon)
14 - Fuse holder
15 - HDMI output for monitor + 2 x USB
16 - Input for USB lamp (+5V/50mA)
