Robotiq Hand-E C10 Gripper Instruction Manual

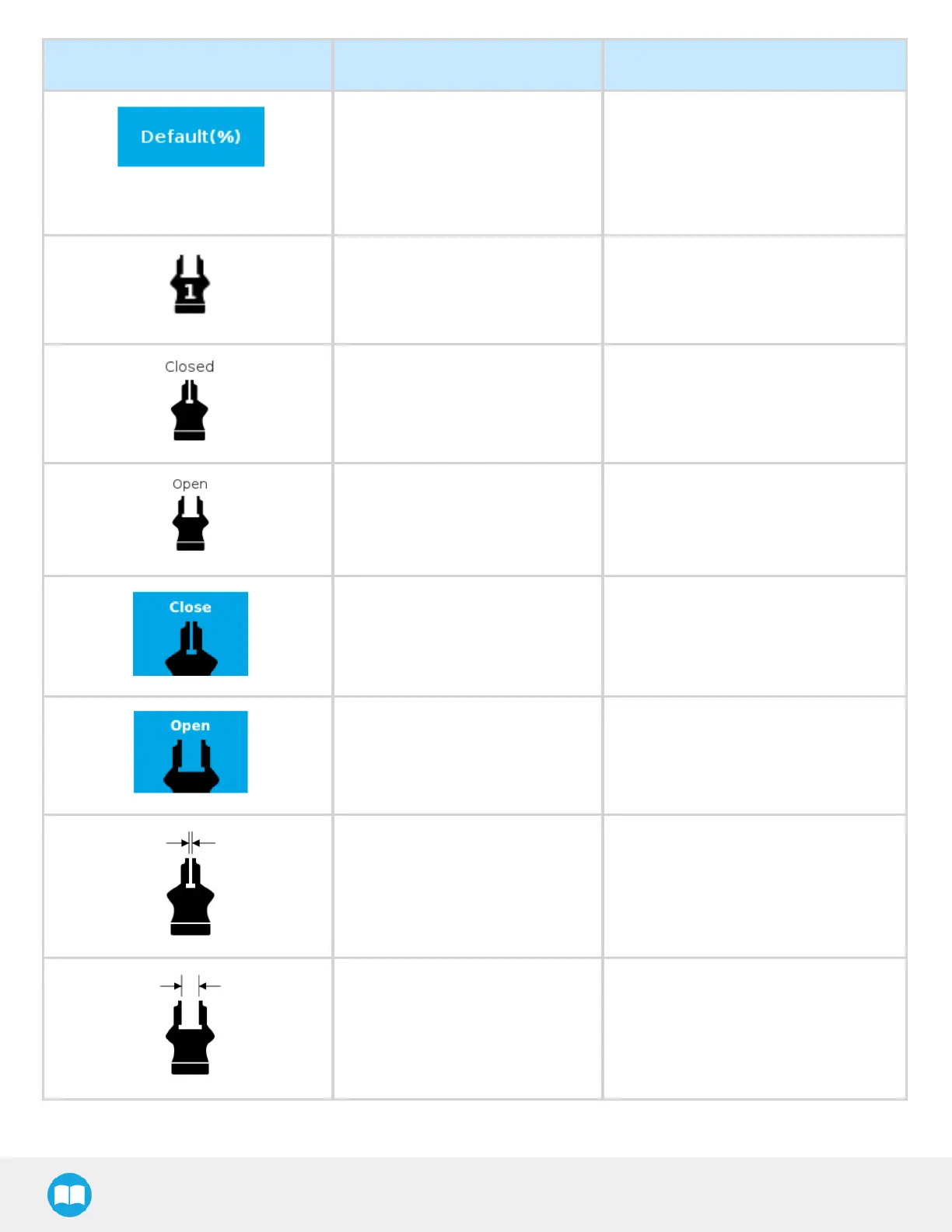

Icon Functionality Name Description
Default (%)
Following a calibration, tap this button
to reset the calibration and return to the
default percentage values. The button
is greyed out if no calibration has been
performed for the corresponding
gripper.
Gripper
Label indicating the gripper's ID,
ranging from 1 to 4.
Fully closed dimension table
header
Visual aid above the fully closed
dimensions in the Calibration menu.
Fully open dimension table header
Visual aid above the fully open
dimensions in the Calibration menu
Close
Tap this button to close the Gripper in
the Calibration wizard.
Open
Tap this button to open the Gripper in
the Calibration wizard.
Fully closed
Visual aid for entering the fully closed
dimension in the Calibration wizard.
Fully open
Visual aid for entering the fully open
dimension in the Calibration wizard.
