6 Maintenance
Analyzer
maintenance
cobas®
4800
System
Systeni
ManHal
4

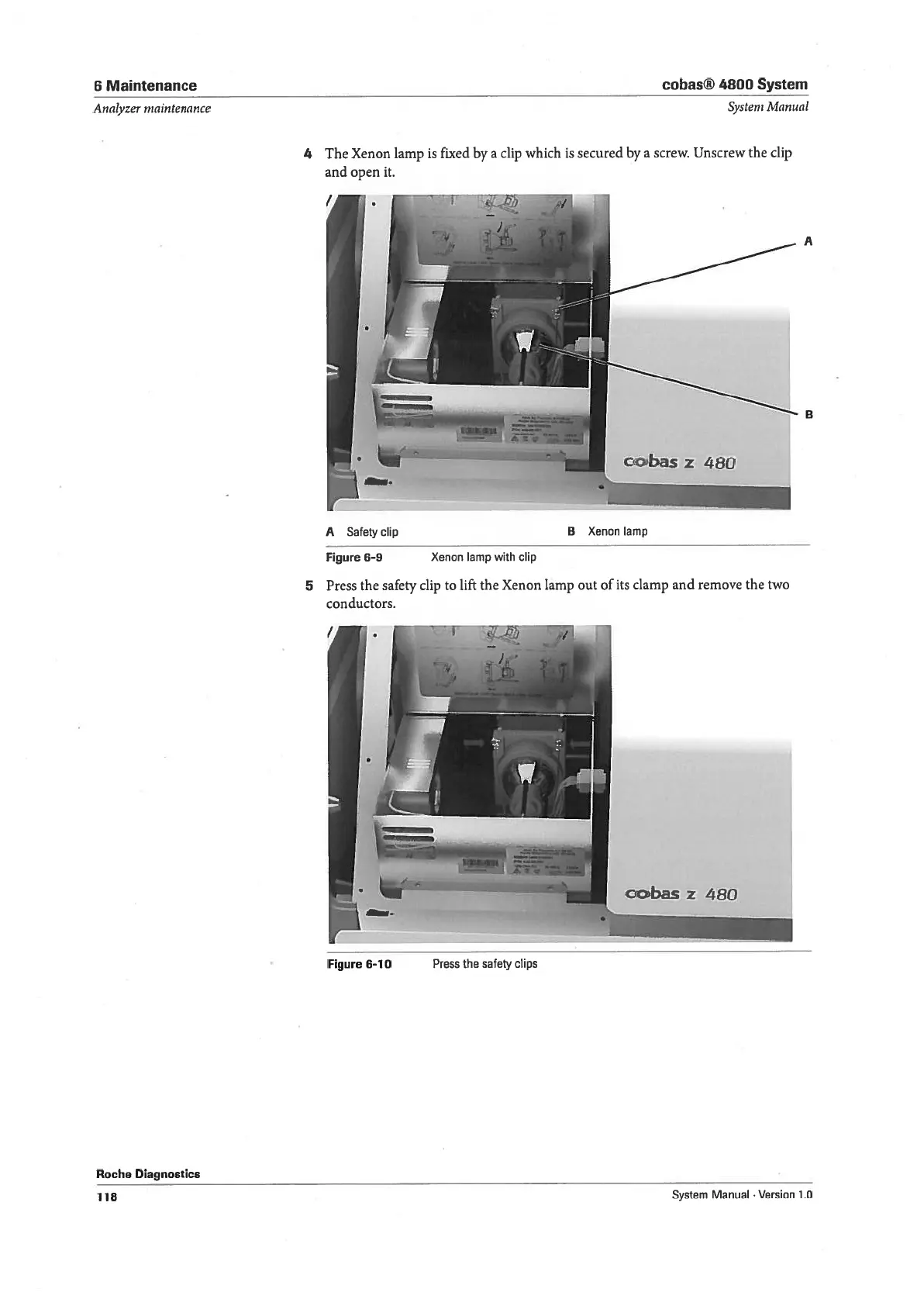

The Xenon lamp
is fixed
by
a clip which is
secured
by a screw. Unscrew
the clip
and
open it.
.1
Roche
Diagnostics
-/I
k
.
,
0% -
cbas
z
480
A Safety
clip
B Xenon
lamp
Figure
6-9
Xenon lamp
with clip
5
Press the safety
clip to
lift the
Xenon
lamp out of
its clamp and
remove the two
conductors.
cobas
z
480
Figure 6—10
Press the
safety
clips
118
System
Manual . Version
1.0
