3 Hardware
cobas® 4800
System
Instrument
iSWAP
Teaciting
needies
System
Manual

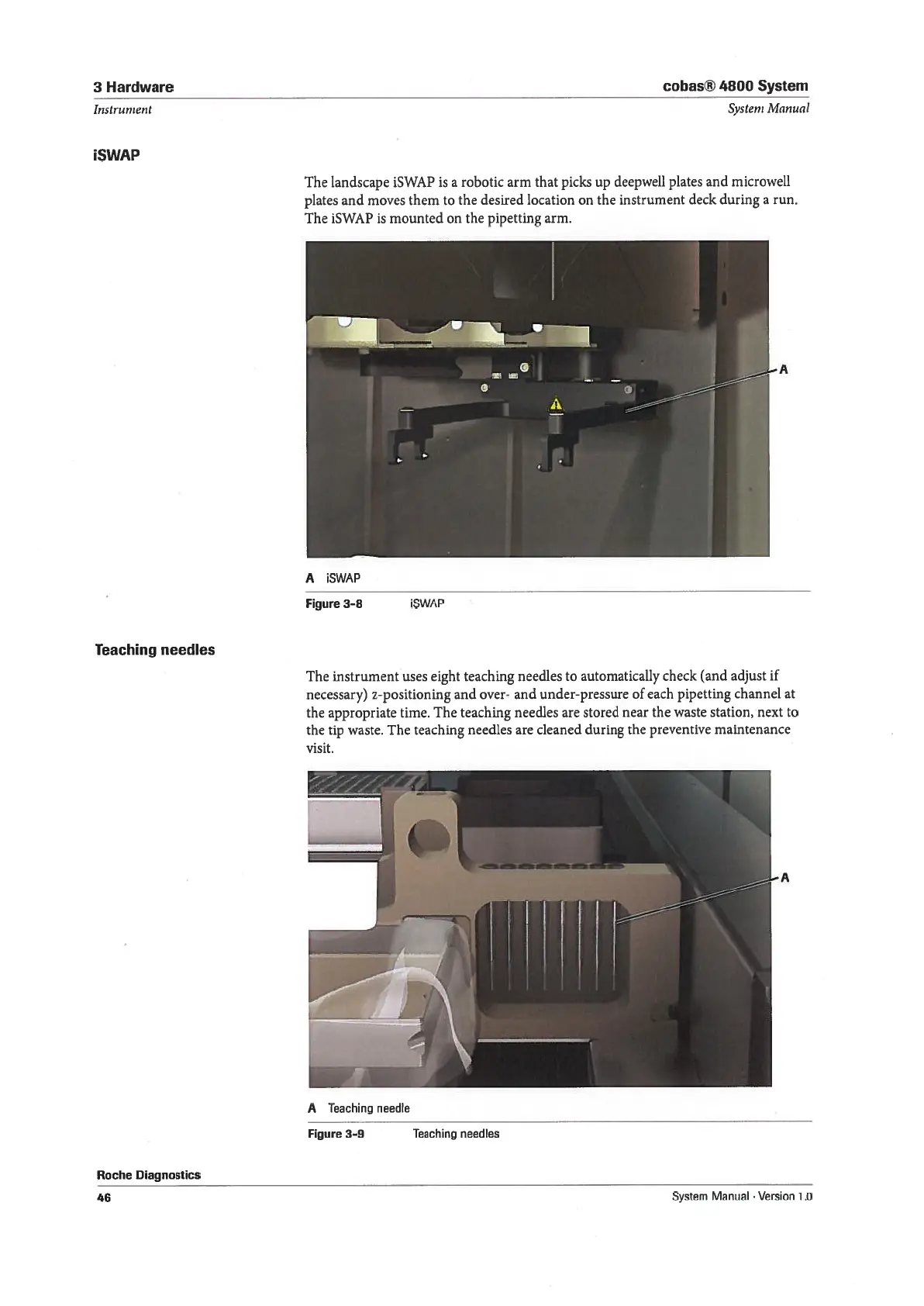

The landscape
iSWAP
is a robotic
arm that
picks up
deepweli plates
and microweli
plates and moves
them to
the desired location
on the
instrument deck
during a run.
The
ISWAP is
mounted on the
pipetting
arm.
Figure
3-8
ISWAP
Roche
Diagnostics
The instrument
uses eight
teaching needies
to
automatically
check
(and adjust if
necessary)
z-positioning
and
over- and under-pressure
of each
pipetting
channel at
the
appropriate time.
The teaching
needies
are
stored near
the waste station,
next to
the tip
waste. The teaching
needies
are
cleaned
during the preventive
maintenance
visit.
Figure
3-9
Teaching
needles
A iSWAP
A
Teaching needle
46
System Manual
. Version
1.0
