3 Hardware
cobas® 4800 System
Instrument System Manual

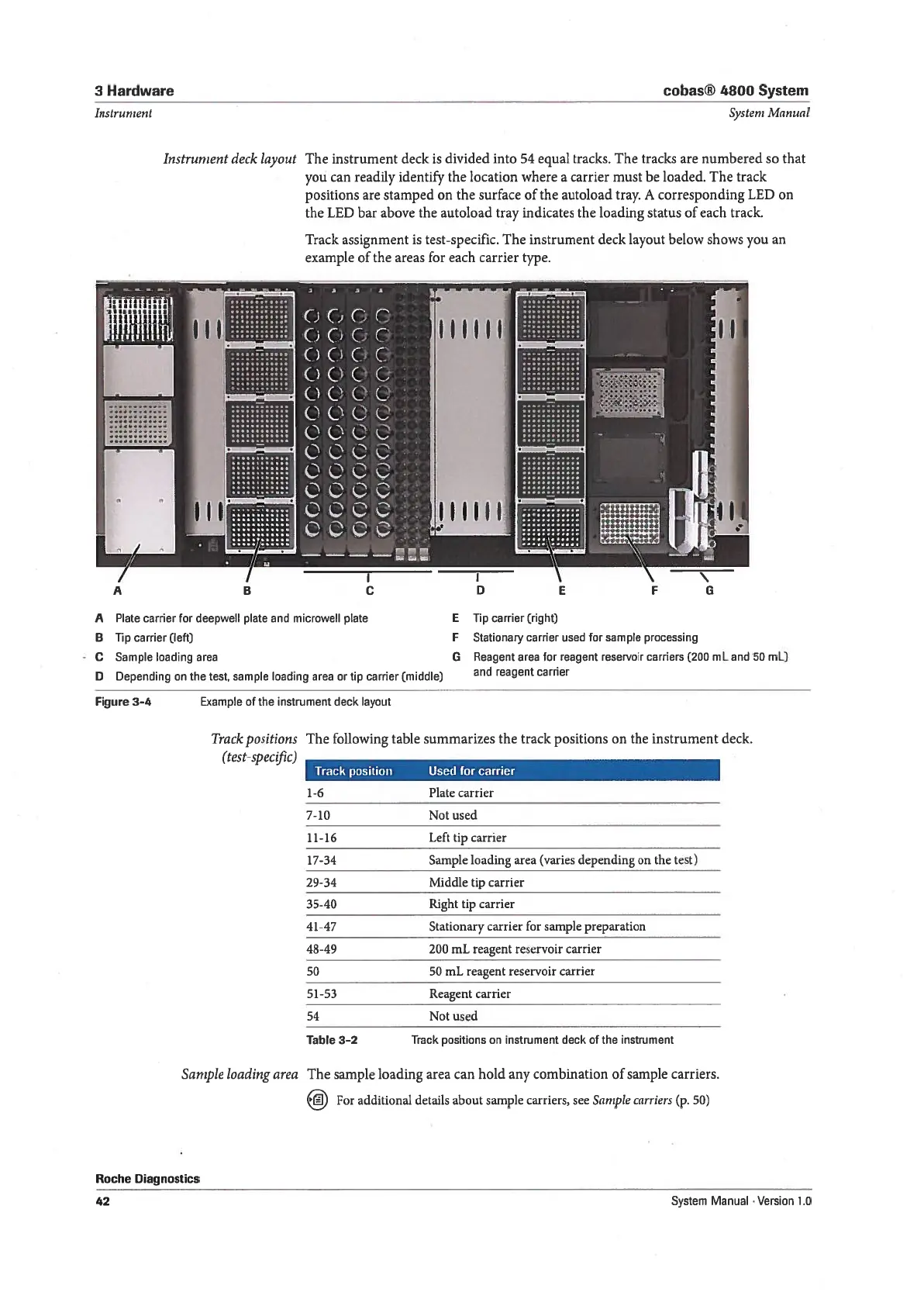

The instrument deck is divided into 54 equal tracks. The tracks are numbered so
that
you can readily identify the location where a
carrier must be loaded. The track
positions are stamped on the surface of the autoload
tray. A corresponding LED on
the LED bar above the autoload tray indicates the
loading status of each track.
Track assignment is test-specific. The instrument
deck layout below shows you an
example of the areas for each carrier type.
A Plate
carrier
for
deepweli plate
and
microwell plate
B
Tip
carrier (left)
C Sample loading area
D Depending on the test, sample loading area or tip
carrier (middle)
Figure
3—4 Example
of the instrument
deck
layout
Track positions
(test-specijic)
The following table summarizes the track
positions on the instrument deck.
Track position Used for carrier
1-6
Platecarrier
7-10 Not
used
11-16 Left tip carrier
17-34 Sample loading area (varies depending on
the
test)
29-34 Middie tip carrier
35-40 Right tip carrier
4 1-47 Stationary carrier for sample
preparation
48-49
200 mL reagent reservoir carrier
50 50
mL reagent reservoir carrier
51-53
Reagent carrier
54 Not
used
Table 3-2 Track positions on instrument deck of the
instrument
Roche
Diagnostics
42
Sample loading area The sample loading
area can hold any combination of sample carriers.
For
additional details about sample carriers, see Sample carriers
(p.
50)
Instrument deck
layout
E Tip carrier (right)
F Stationary carrier used for sample processing
G Reagent area for reagent reservoir carriers (200 mL and 50 mL)
and reagent carrier
System Manual
Version
1.0
