cobas® 4800 System
3
Hardware
Systeni Manual

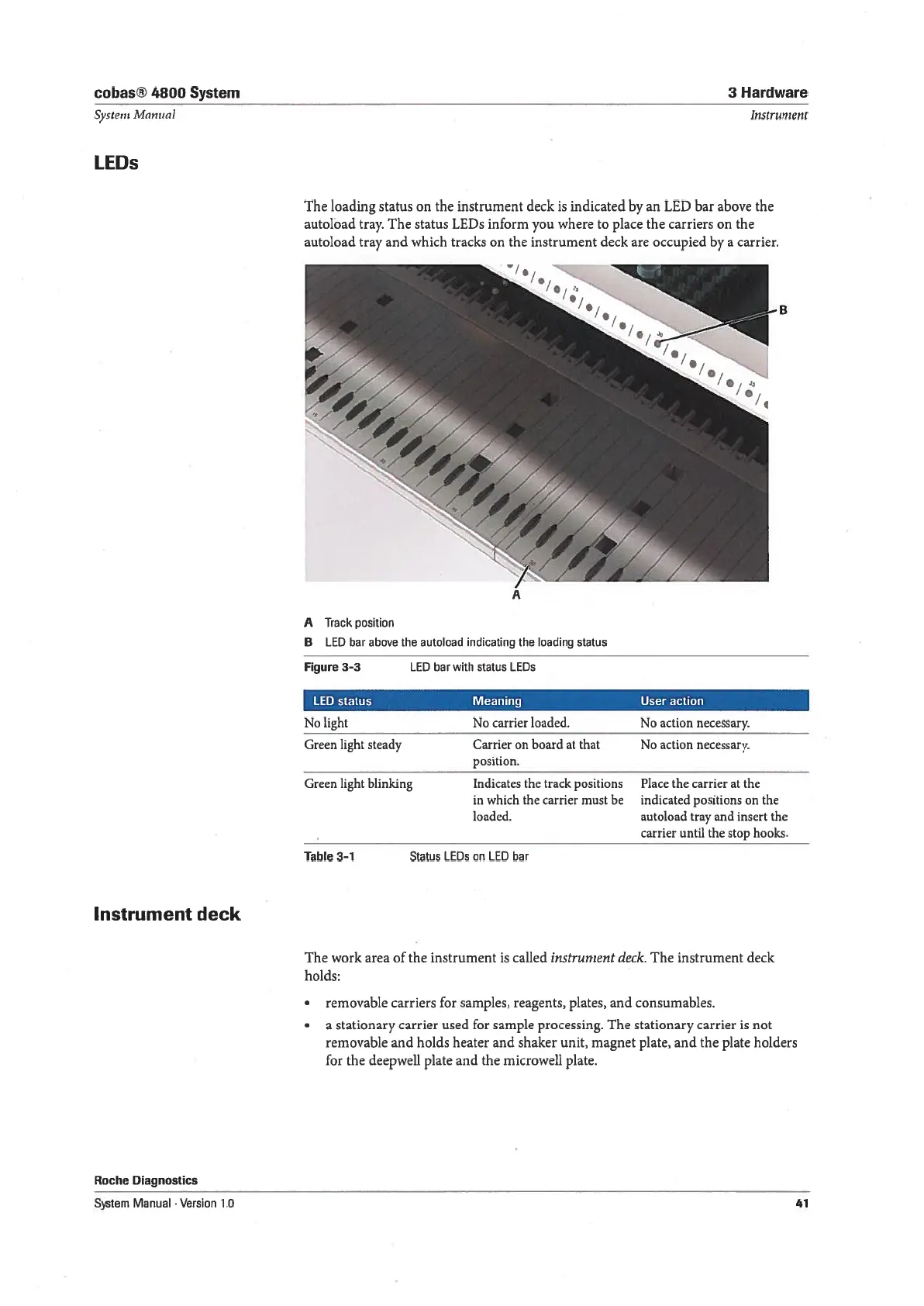

LEDs
Instrument
The loading status
on the instrument deck
is
indicated
by
an LED bar above the
autoload tray. The status
LEDs inform
you where to place the
carriers on the
autoload tray and
which tracks on the instrument
deck are
occupied
by a
carrier.
A Track
position
B [ED bar above
the
autoload indicating the loading status
Figure
3-3
[ED bar with status [EDs
LED status Meaning User action
No light No
carrier loaded,
No
action necessary.
Green light steady
Carrier on board at that
No
action necessary.
position.
Green light blinking
Indicates the track positions Place the carrier
at
the
in which the carrier must be indicated positions on the
loaded. autoload tray and insert
the
carrier until the
stop
hooks.
Table 3-1 Status LEUs on LED bar
Instrument deck
The work area of the
instrument is called instrument
deck.
The instrument deck
hoids:
Roche
Diagnostics
System Manual
. Version
1.0
• removable carriers for samples, reagents, plates, and consumables.
• a stationary carrier used for sample processing. The stationary carrier is not
removable and hoids heater and shaker unit, magnet plate, and the plate holders
for the deepweil plate and the microweil plate.
41
