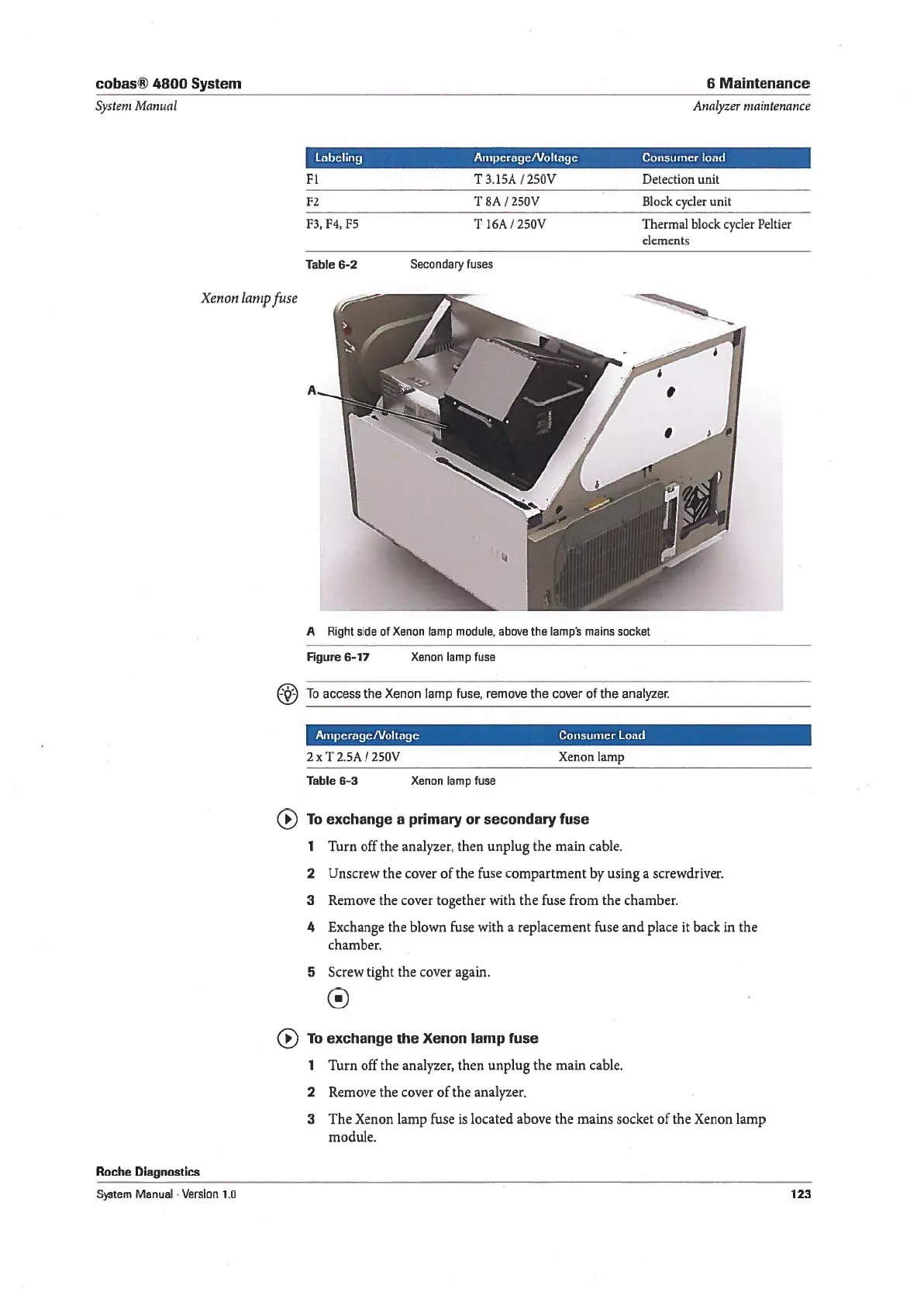

Maintenance
Analyzer
niaintenance
Labeling
Amperage/Voltage
Consumer bad
F1
T 3.15A
/
250V
Detection unit
F2
T 8A
/
250V
Black cycler
unit
F3, F4,
F5
T 16A
/
250V
Thermal block
cycler Peltier
elements
Table
6-2 Secondary
fuses
A
Right side of Xenon lamp
module, above the lamp’s mains
socket
Figure 6-17 Xenon
lamp fuse
To
access the Xenon lamp fuse,
remove the cover of the analyzer.
AmperagelVoltage
Consumer bad
2 x T
2.5A
/
250V
Table
6-3
Xenon lamp
Roche Diagnostics
System
Manual
. Version
1.0
To
exchange
a primary or secondary
fuse
1
Turn off the analyzer,
then unplug the main
cable.
2
Unscrew
the cover of the fuse compartment
by using a
screwdriver.
3
Remove the cover
together with the fuse from
the chamber.
4
Exchange the blown
fuse with a replacement fuse
and place it back
in the
chamber.
5
Screw tight the cover
again.
0
To
exchange the Xenon
lamp fuse
1
Turn off the analyzer, then
unplug the main cable.
2
Remove
the cover of the analyzer.
3
The Xenon
lamp fuse is located above
the mains socket of the
Xenon lamp
module.
Xenon lanipfuse
Xenon lamp fuse
123
