Hardware
cobas®
4800 System
Instrument
Stationary carrier

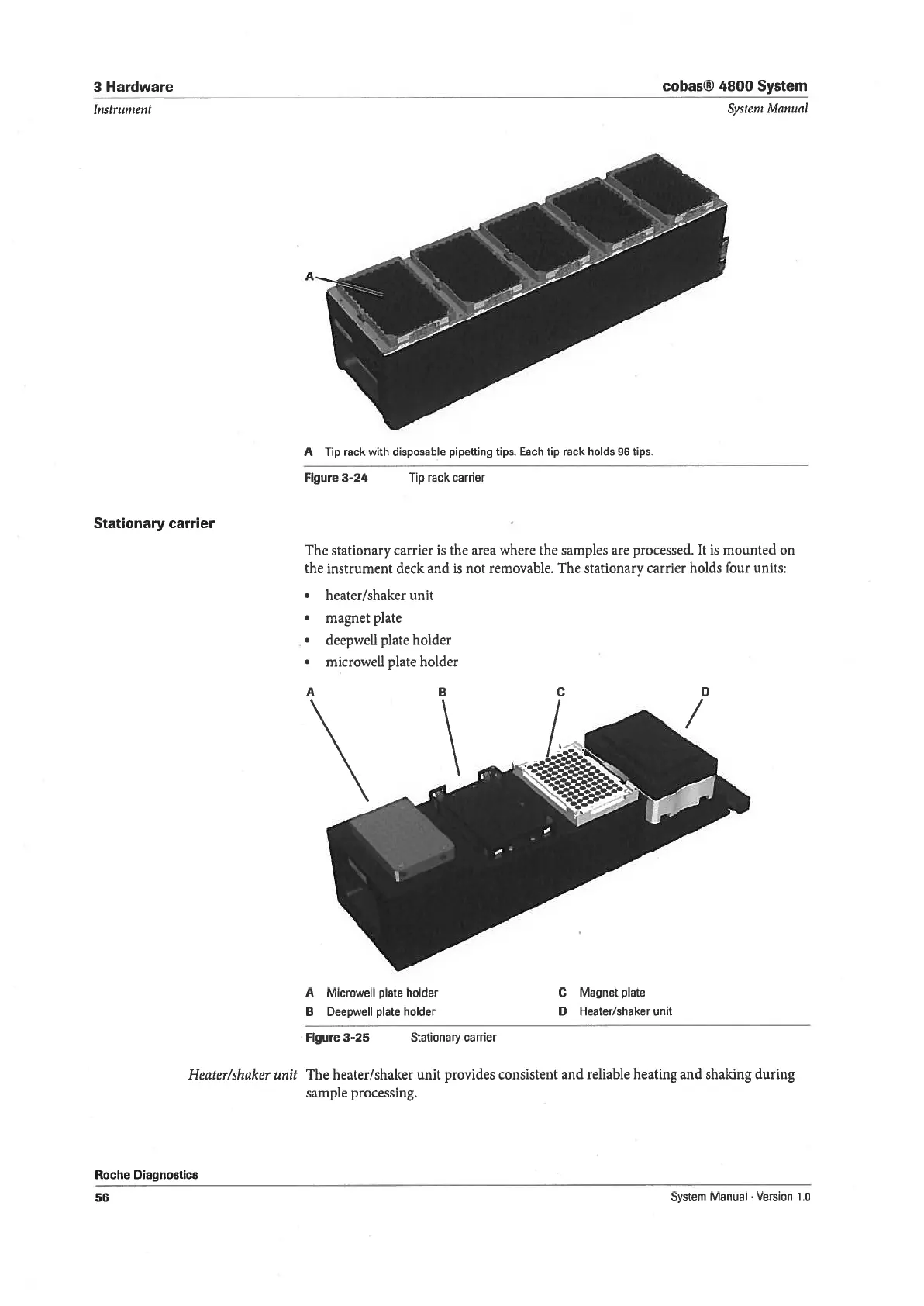

Figure 3-24 Tip rack carrier
Systeni Manual
The stationary carrier is the
area where the samples are processed. It is
mounted on
the
instrument deck and is not removable. The
stationary carrier hoids four units:
• heater/shaker
unit
• magnet
plate
• deepweli plate holder
• microwell plate holder
A Microweli plate holder
B Deepweil plate holder
Figure 3-25
Stationary carrier
Heater/shaker
unit The
heater/shaker
unit provides consistent and reliable heating and
shaking during
sample processing.
A Tip raak with disposable pipetting tips. Each tip rack
holds
96
tips.
C Magnet
plate
13 Heater/shaker unit
