Publication IASIMP-QS003B-EN-P - October 2009 119
Add Distributed Point I/O Modules to the Project Chapter 10
8. Expand Digital, select the
catalog number of the
leftmost POINT I/O
module in chassis, and
click OK.

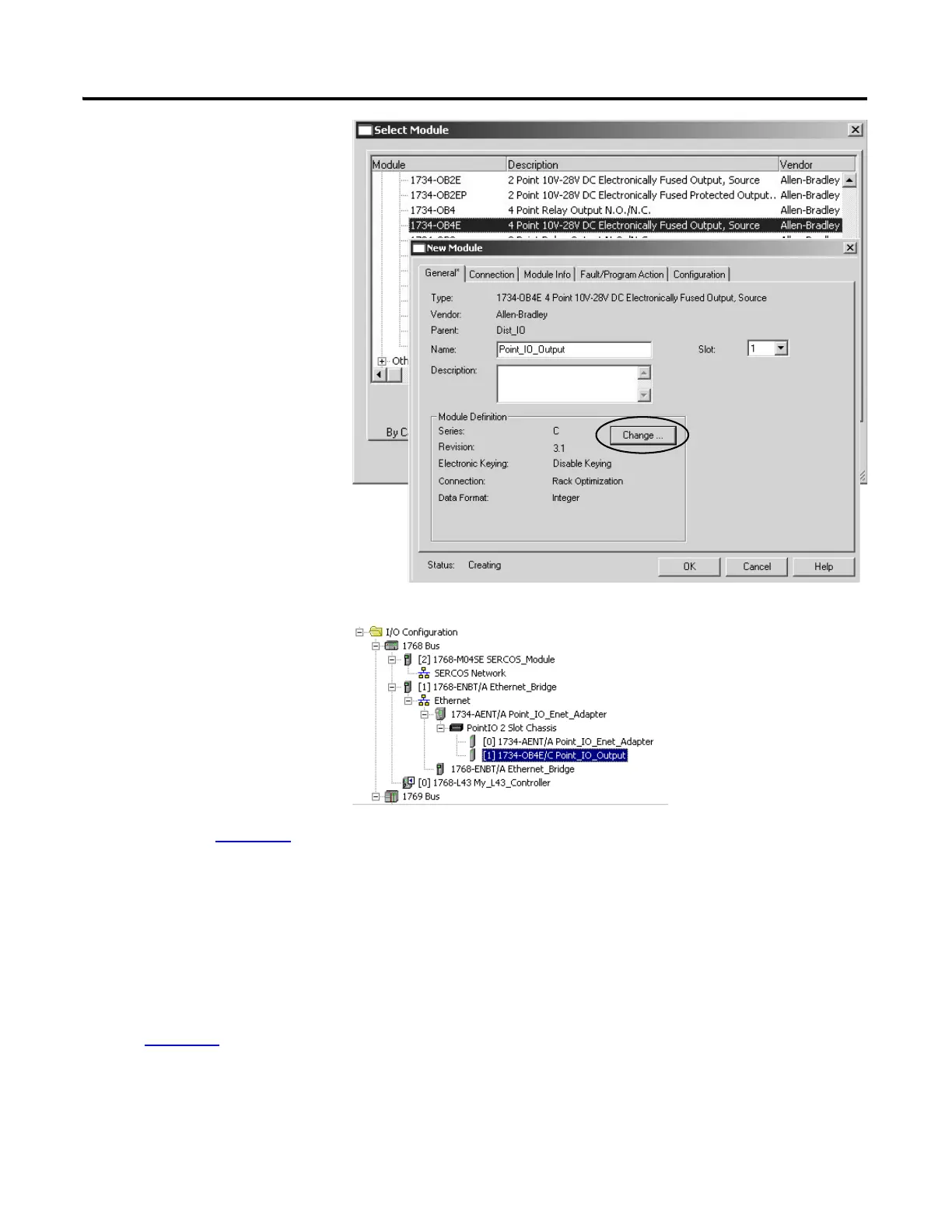

9. In the New Module
dialog box:
a. Enter a Name for the
module.
b. Select the appropriate
Slot.
c. Click Change button.
d. Select Disable Keying.
e. Click OK twice to exit
dialog boxes.
The module is added to
the I/O Configuration.
10. Repeat steps 6 through 8
to add all of your
distributed I/O modules,
in order from left to right.
11. Record the adapter name
and digital output slot
number on page 129
.
12. If you added more than
one digital output
module, select the one
you want to test.
13. If not using DeviceNet,
skip to Add Ladder Logic
on page 128
.
