Rockwell Automation 1768-L45 User Manual

26 Publication IASIMP-QS003B-EN-P - October 2009
Chapter 1 Prepare the CompactLogix Hardware

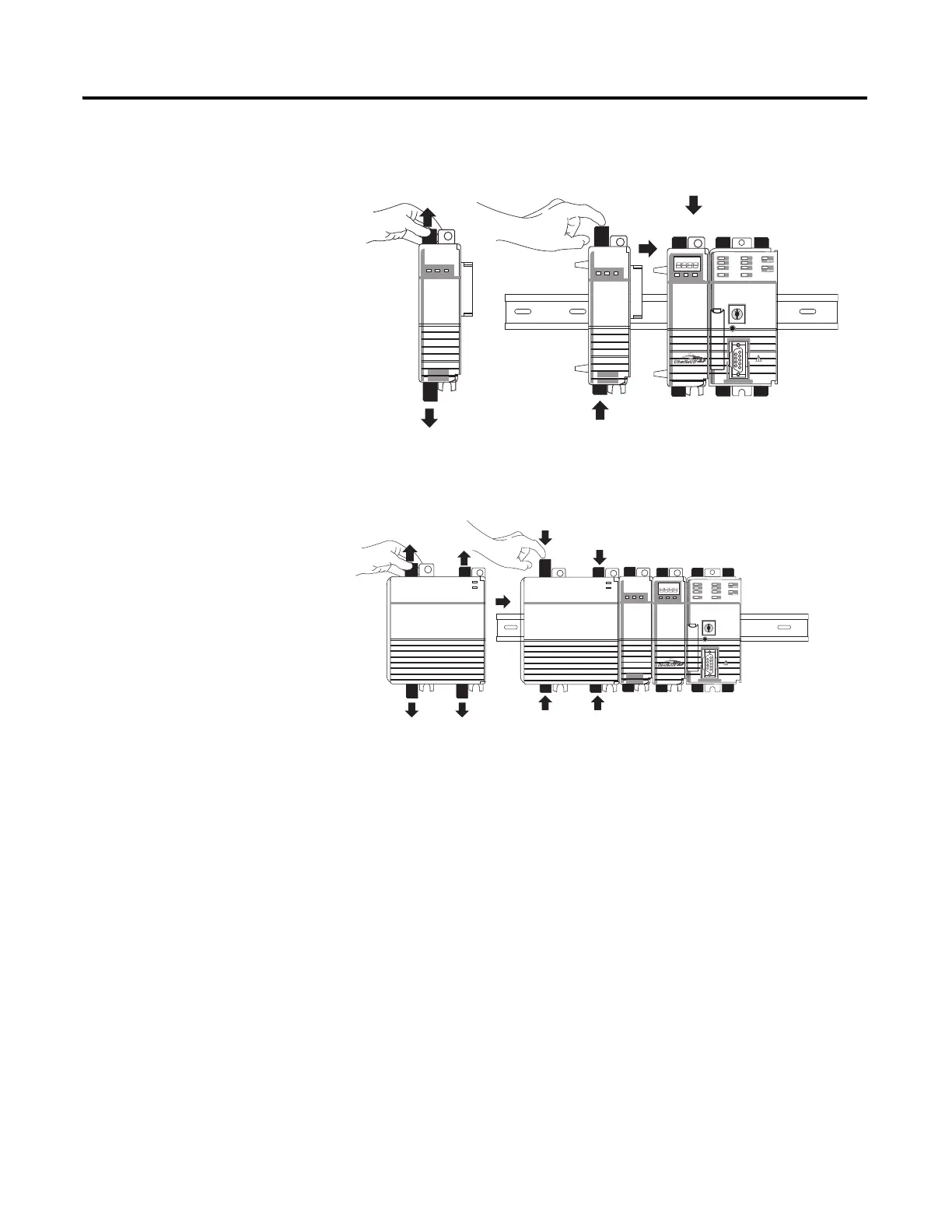

3. Mount the SERCOS
1768-M04SE module.
a. Pull locking tabs out.
b. Align SERCOS module
to the left of
EtherNet/IP module
or controller and slide
into place.
c. Push locking tabs in.
4. Mount the power supply
on the DIN rail.
a. Pull locking tabs out.
b. Align supply to the left
of the SERCOS
module and slide into
place.
c. Push locking tabs in.
5. If you have a 1769-SDN
DeviceNet module,
locate the series letter and
firmware revision on the
side of the module and
record in Appendix A.
b
a
c
a
b
c
