Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 155
Use I/O Modules with CompactLogix 5370 L1 Controllers Chapter 7

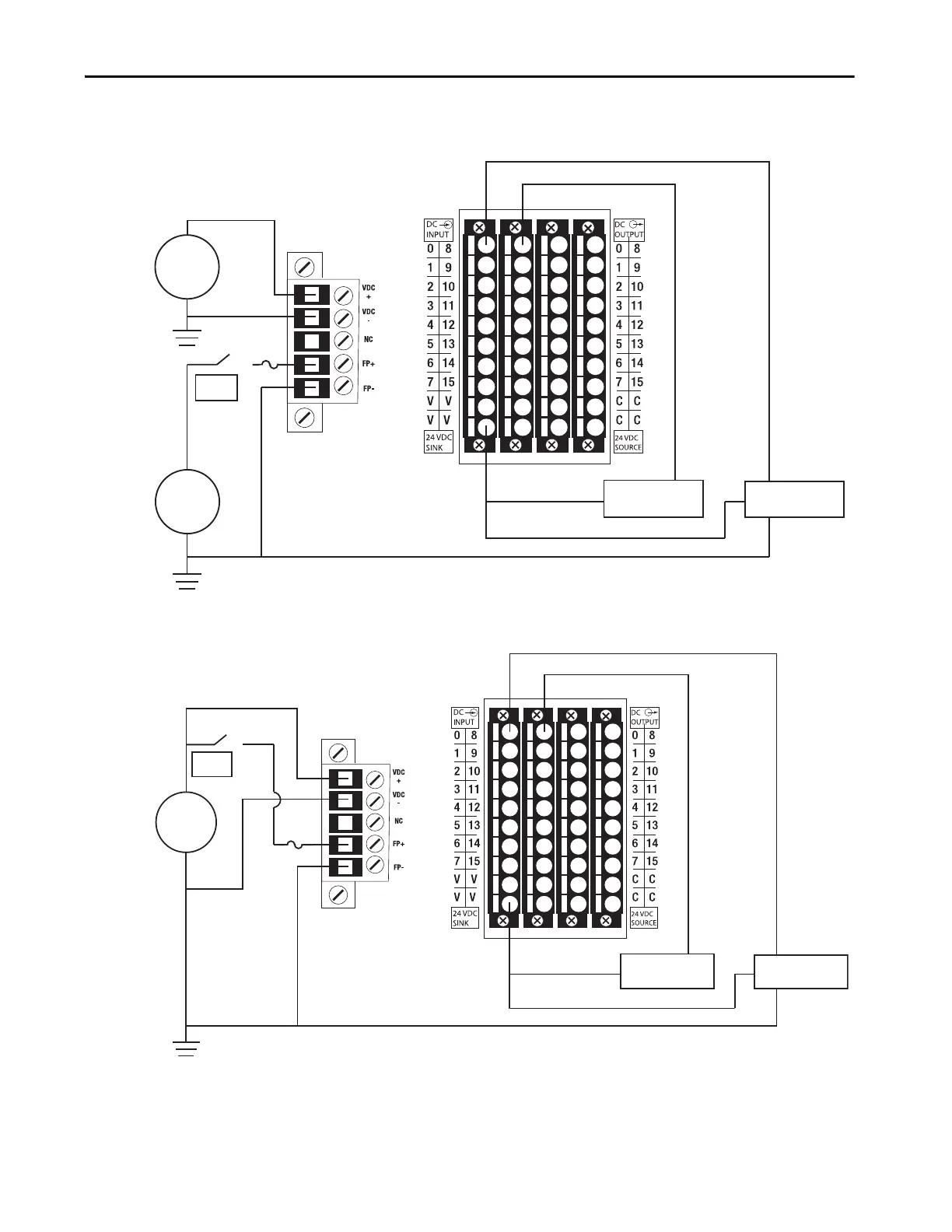

Figure 21 - CompactLogix 5370 Series B L16ER, L18ER, L18ERM, and Series A L19 Controllers
with Input Devices Powered by a V Terminal on Embedded I/O Module (Series A [Alternate
Series B])
Figure 22 - CompactLogix 5370 L1 Controllers with Input Devices Powered by a V Terminal on
Embedded I/O Module (Series B)
MCR
2-wire Prox
Power
Supply 1
Power
Supply 2
3-wire Prox
MCR
2-wire Prox
Power
Supply
3-wire Prox
