Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 251

Use I/O Modules with CompactLogix 5370 L3 Controllers Chapter 9

Configure I/O

Complete these steps to add a Compact I/O module to your

CompactLogix 5370 L3 control system and configure it.

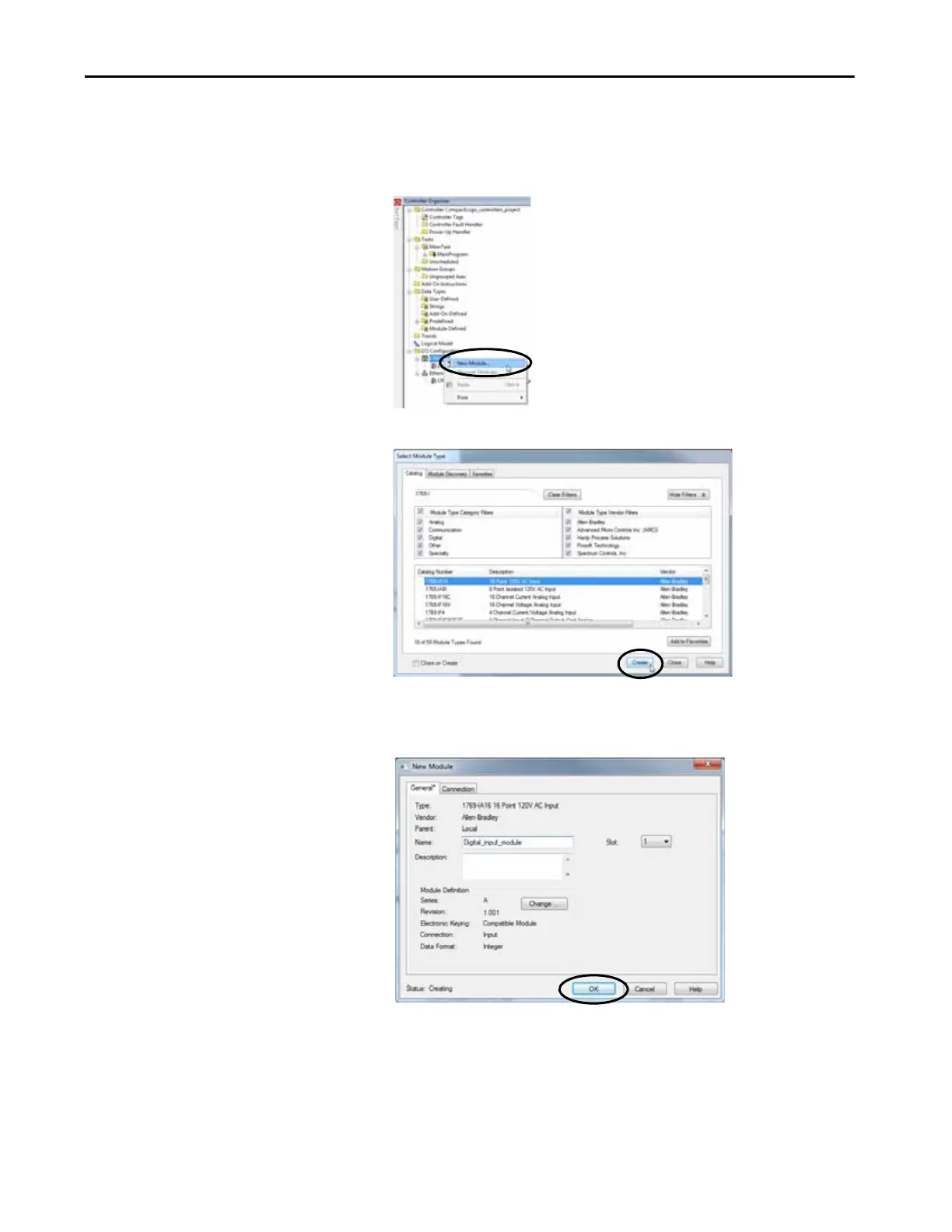

1. Right-click the 1769 Bus and choose New Module.

2. Select the desired I/O module and click Create.

The New Module dialog box appears.

3. Configure the new I/O module as necessary and click OK.
