20 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 1 CompactLogix 5370 Controllers Overview
DeviceNet Network

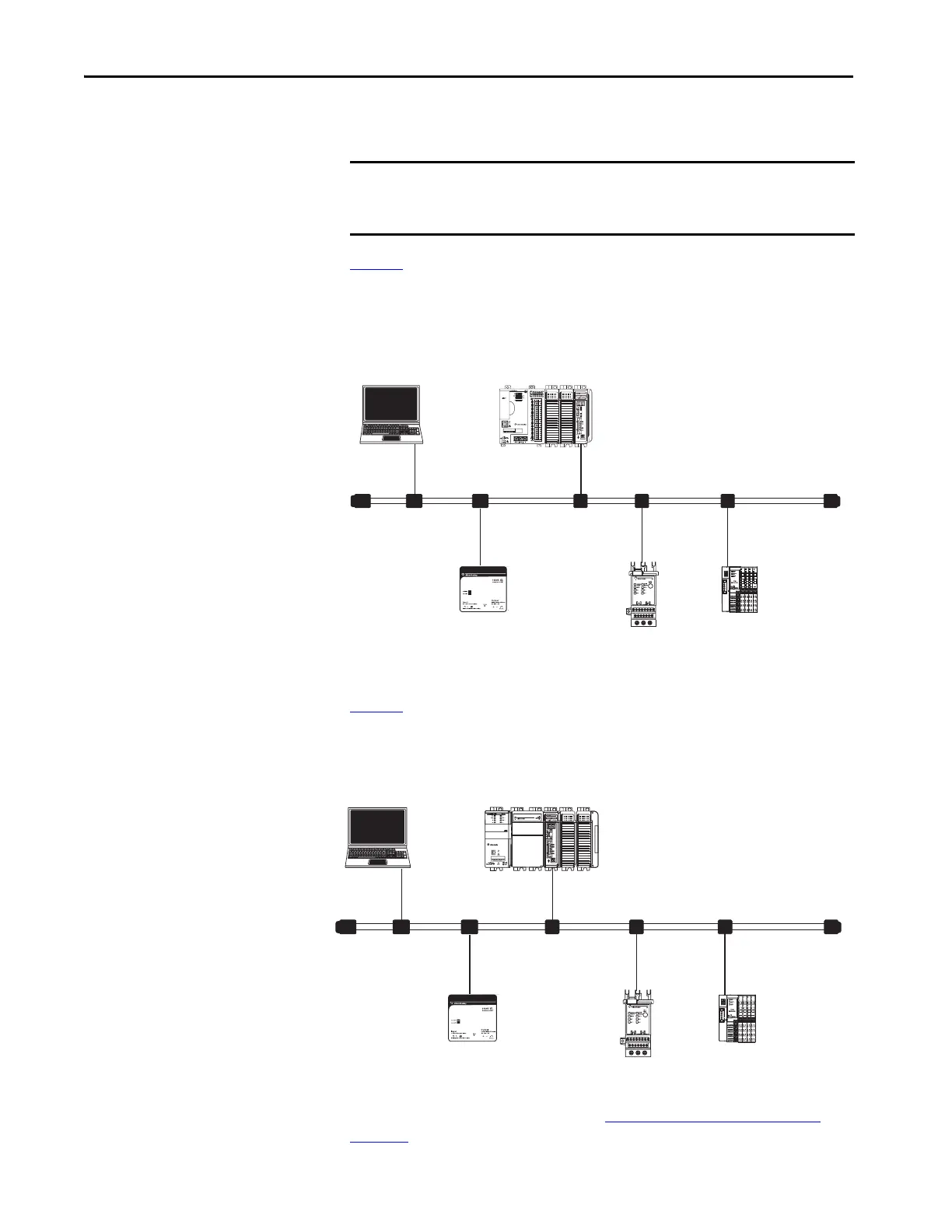

Figure 4 shows an example DeviceNet system configuration for a
CompactLogix 1769-L24ER-QB1B controller.
Figure 4 - Example 1769-L24ER-QB1B Control System Configuration on a DeviceNet Network
Figure 5 shows an example DeviceNet system configuration for a
CompactLogix 1769-L33ERM controller.
Figure 5 - Example 1769-L33ERM Control System Configuration on a DeviceNet Network
For more information on how to use the CompactLogix 5370 L2 or L3
controllers on DeviceNet networks, see Communicate over Networks on
page 121.
IMPORTANT CompactLogix 5370 L2 and L3 controllers can send messages to devices on
the DeviceNet network; however, these controllers cannot receive
messages from those devices on the DeviceNet network.
• 1769-L24ER-QB1B
• 1769-SDN Scanner
1606-XLDNET
DeviceNet Connection
E3â„¢ Electronic
Overload Relay
• 1734-ADN POINT I/O
•POINT I/O
• 1769-L33ERM
• 1769-SDN Scanner
1606-XLDNET
DeviceNet Connection
E3â„¢ Electronic
Overload Relay
• 1734-ADN POINT I/O
•POINT I/O
