18 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 1 CompactLogix 5370 Controllers Overview
More Information
For more detailed information on Electronic Keying, see Electronic Keying in
Logix5000â„¢ Control Systems Application Technique,
publication LOGIX-AT001
.
Example System
Configurations
CompactLogix 5370 controllers support the following networks:
• EtherNet/IP network - All CompactLogix 5370 controllers
• DeviceNet network - Only CompactLogix 5370 L2 and L3 controllers
EtherNet/IP Network
Figure 1 shows an example EtherNet/IP system configuration for a
1769-L18ERM-BB1B controller.

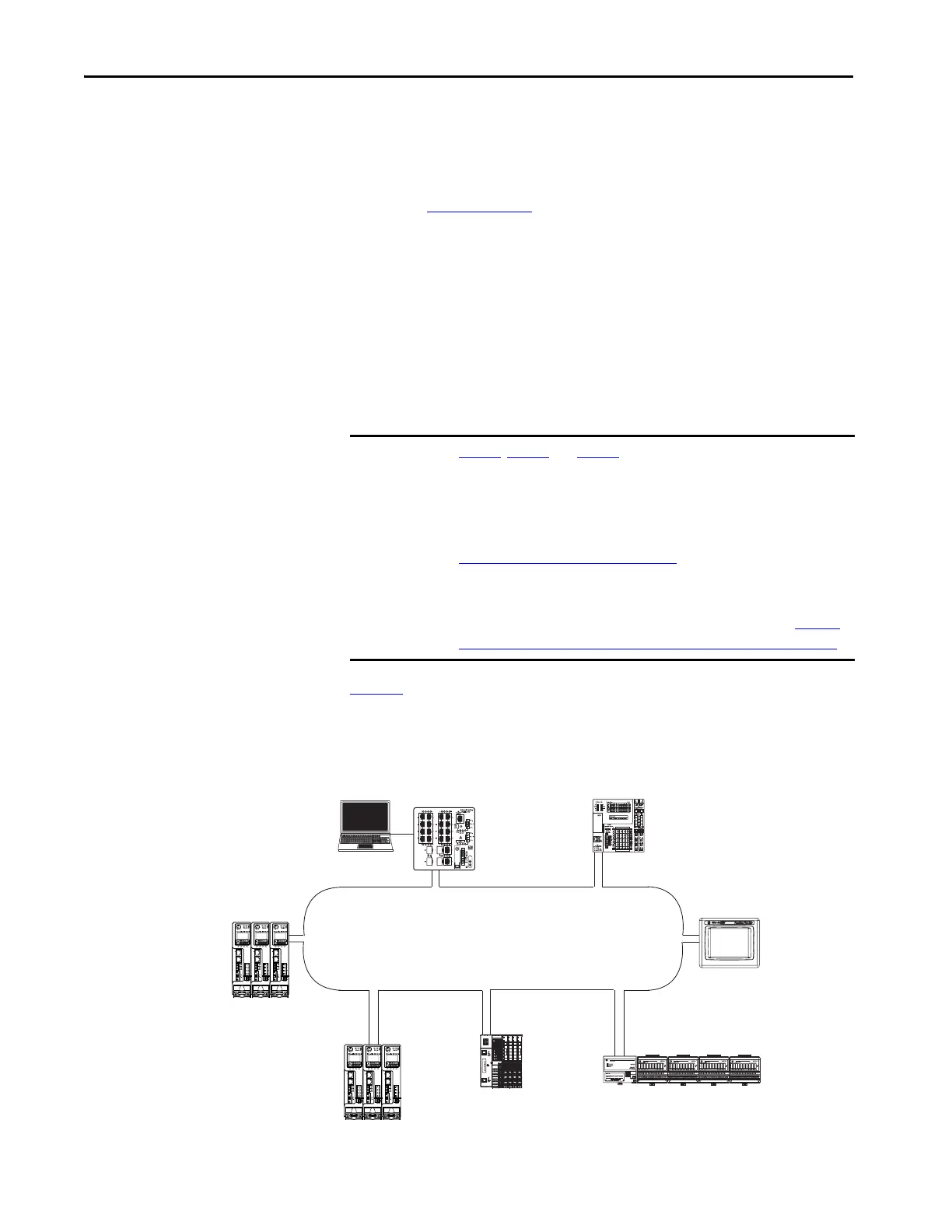

Figure 1 - Example 1769-L18ERM-BB1B Control System Configuration on an EtherNet/IP
Network
IMPORTANT Figure 1, Figure 2, and Figure 3 show CompactLogix 5370 controllers that
are used in a DLR network topology on an EtherNet/IP network. You can also
use CompactLogix 5370 controllers in linear or star EtherNet/IP network
topologies.
For more information on the other EtherNet/IP network topologies, see
Communicate over Networks on page 121
.
Some of the CompactLogix 5370 controllers support Integrated Motion over
an EtherNet/IP network, if desired. For more information on using
Integrated Motion over an EtherNet/IP network, see Chapter 11, Develop
Integrated Motion over an EtherNet/IP Network Application on page 283.
1769-L18ERM-BB1B
PanelViewâ„¢ Plus 7
Stratix 5700â„¢
Kinetix® 5500
1734-AENTR POINT I/O
1794-AENTR FLEXâ„¢ I/O
Kinetix 5500
To Next Page
