178 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers

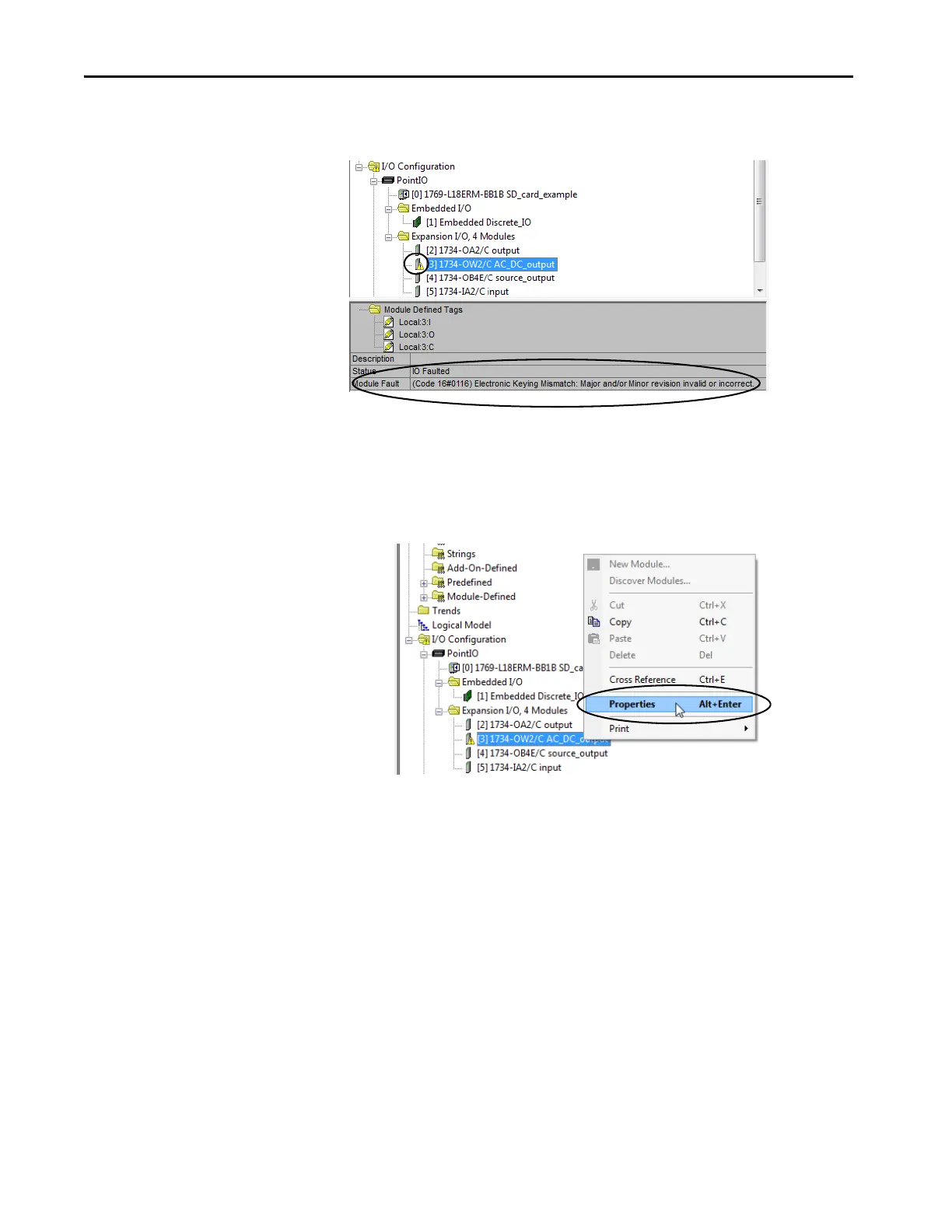

The following graphic shows the Quick View Pane, which indicates the type
of fault.
To see the fault description on the Connection tab in Module Properties
dialog box, complete these steps.
1. In the I/O Configuration, right-click the faulted I/O module and
choose Properties.
