186 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers

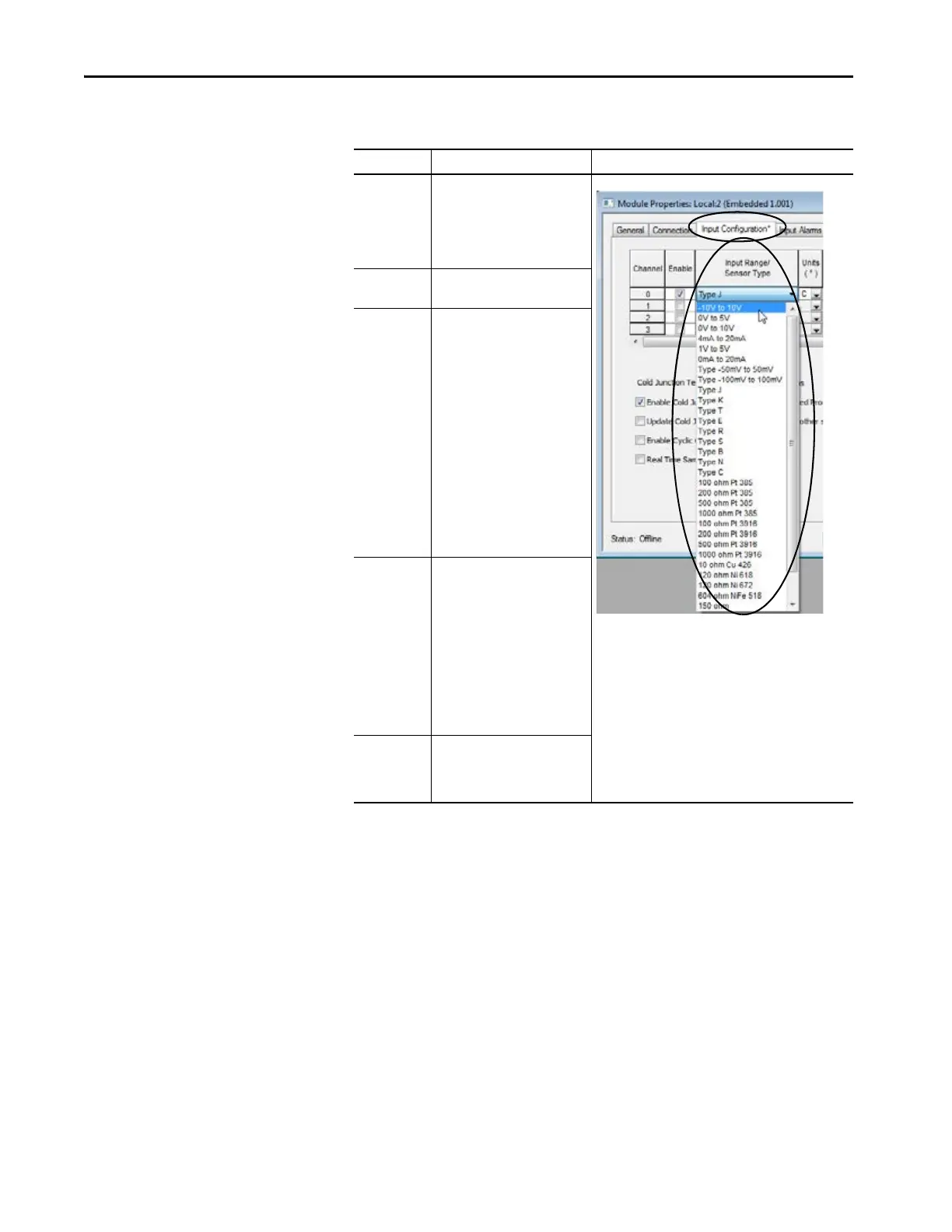

Table 11 - Input Types
Input Type Input Ranges Project Configuration
Voltage • Type -50…50 mV
• Type -100…100 mV
• 0…5V
• 1…5V
•0…10V
• -10V…10V
Current • 0…20 mA
• 4…20 mA
Thermocouple • J
• K at 1370…1372 °C
(2498…2501.6 °F)
• K at -200…1370 °C
(-328…2498 °F)
•T
•E
• S and R at 0…1768 °C
(32…3214.4 °F)
• S and R at -50…0 °C
(-58…32 °F)
• B at 300…1820 °C
(572…3308 °F)
• B at 250…300 °C
(482…572 °F)
•N
•C
RTD • 100 Ω Platinum 385
• 200 Ω Platinum 385
• 500 Ω Platinum 385
• 1000 Ω Platinum 385
• 100 Ω Platinum 3916
• 200 Ω Platinum 3916
• 500 Ω Platinum 3916
• 1000 Ω Platinum 3916
• 10 Ω Copper 426
• 120 Ω Nickel 618
• 120 Ω Nickel 672
• 604 Ω Nickel-Iron 518
Resistance • 0…150 Ω
• 0…500 Ω
• 0…1000 Ω
• 0…3000 Ω
