52 Rockwell Automation Publication 2198-UM001D-EN-P - May 2014
Chapter 3 Mounting the Kinetix 5500 Drive System
This hole pattern applies when transitioning from frame 2 drives to frame 1
drives. To mount additional frame 1 drives to the right of Axis 2 in this figure,
refer to the frame 1 hole pattern in Figure 23
.

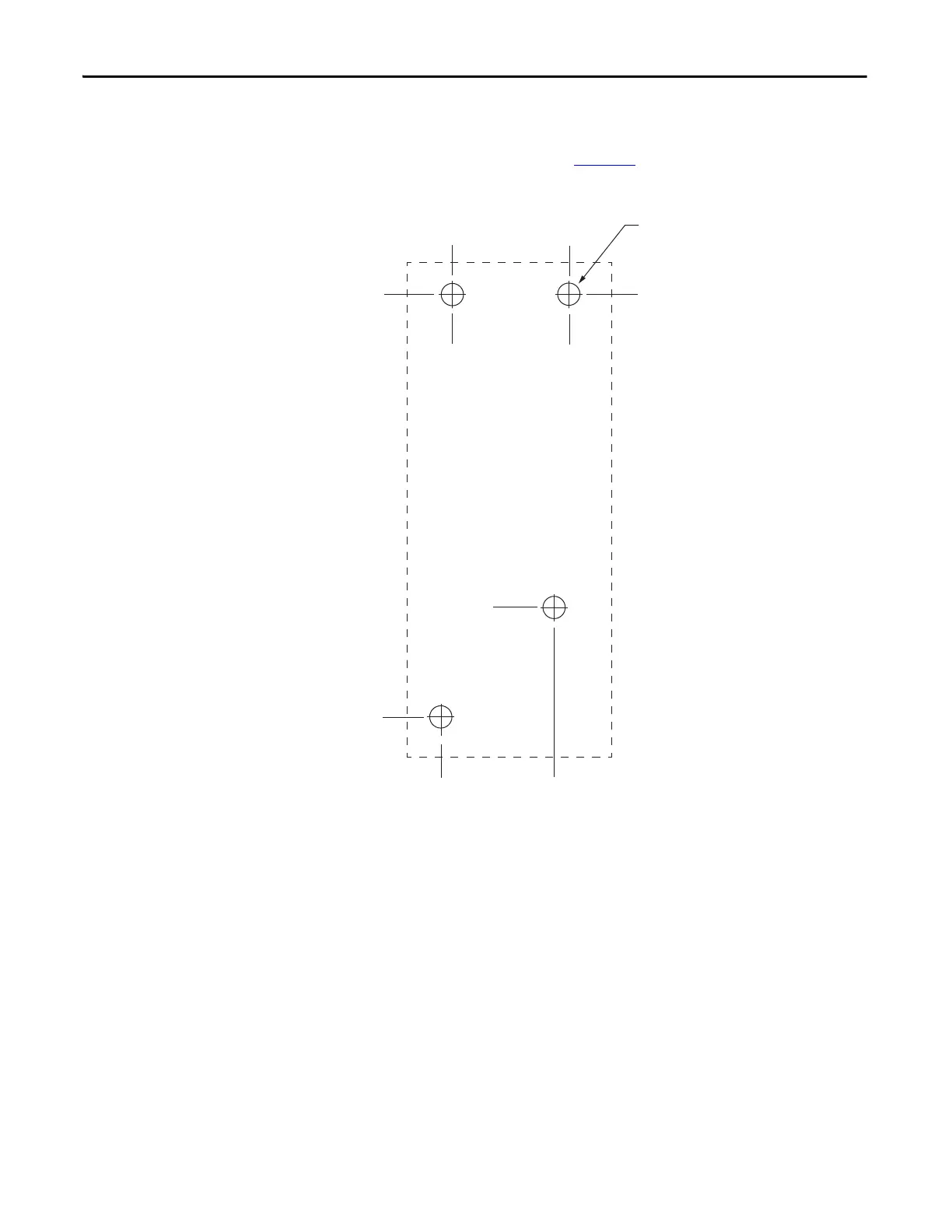

Figure 24 - Frame 2 to Frame 1 Hole Pattern
4x
ØM4 (#8-32)
Axis 1
(frame 2)
243.84
(9.6)
0
0
5.00
(0.2)
57.00
(2.2)
52.50
(2.1)
50.15
(2.0)
Axis 2
(frame 1)
243.83
(9.6)
Dimensions are in mm (in.)
