Chapter 2 Installation Procedures

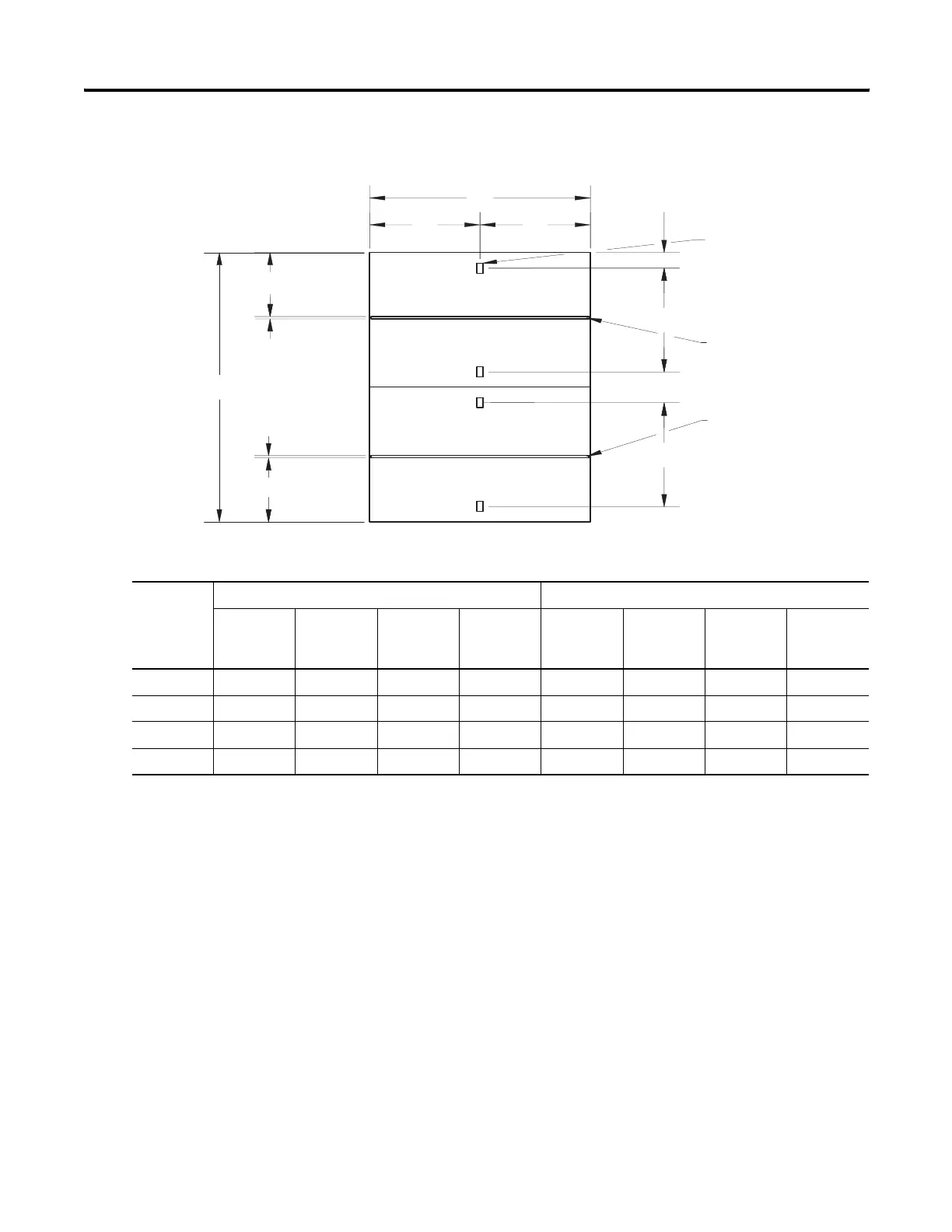

Mounting Dimensions for 30 in. and 40 in. Deep Back-to-Back Section
A
B
D
D
Rear
Front
C
Standard Ground Bus
Rear
C
7.38 in. (187 mm)
Front
7.38 in. (187 mm)
0.25 in. (6 mm)
0.25 in. (6 mm)
1.69 in. (43 mm)
3.19 in. (81 mm)
(4) Mounting Slots
0.56 in. x 1.13 in. in Slots
(14 mm x 29 mm) Slots
Dimensions
approx.
20 in. Deep 40 in. Deep
20 in. Wide
in. (mm)
25 in.
Wide
in. (mm)
30 in. Wide
in. (mm)
35 in.
Wide
in. (mm)
20 in.
Wide
in. (mm)
25 in.
Wide
in. (mm)
30 in.
Wide
in. (mm)
35 in. Wide
in. (mm)
A 20.00 (508) 25.00 (635) 30.00 (762) 35.00 (889) 20.00 (508) 25.00 (635) 30.00 (762) 35.00 (889)
B 30.00 (762) 30.00 (762) 30.00 (762) 30.00 (762) 40.00 (1016) 40.00 (1016) 40.00 (1016) 40.00 (1016)
C 11.56 (294) 11.56 (294) 11.56 (294) 11.56 (294) 16.56 (421) 16.56 (421) 16.56 (421) 16.56 (421)
D 10.00 (254) 12.50 (318) 15.00 (381) 17.50 (445) 10.00 (254) 12.50 (318) 15.00 (381) 17.50 (445)
