Rockwell Automation CENTERLINE 2100

Publication 2100-IN012C-EN-P - April 2009 35
Installation Procedures Chapter 2

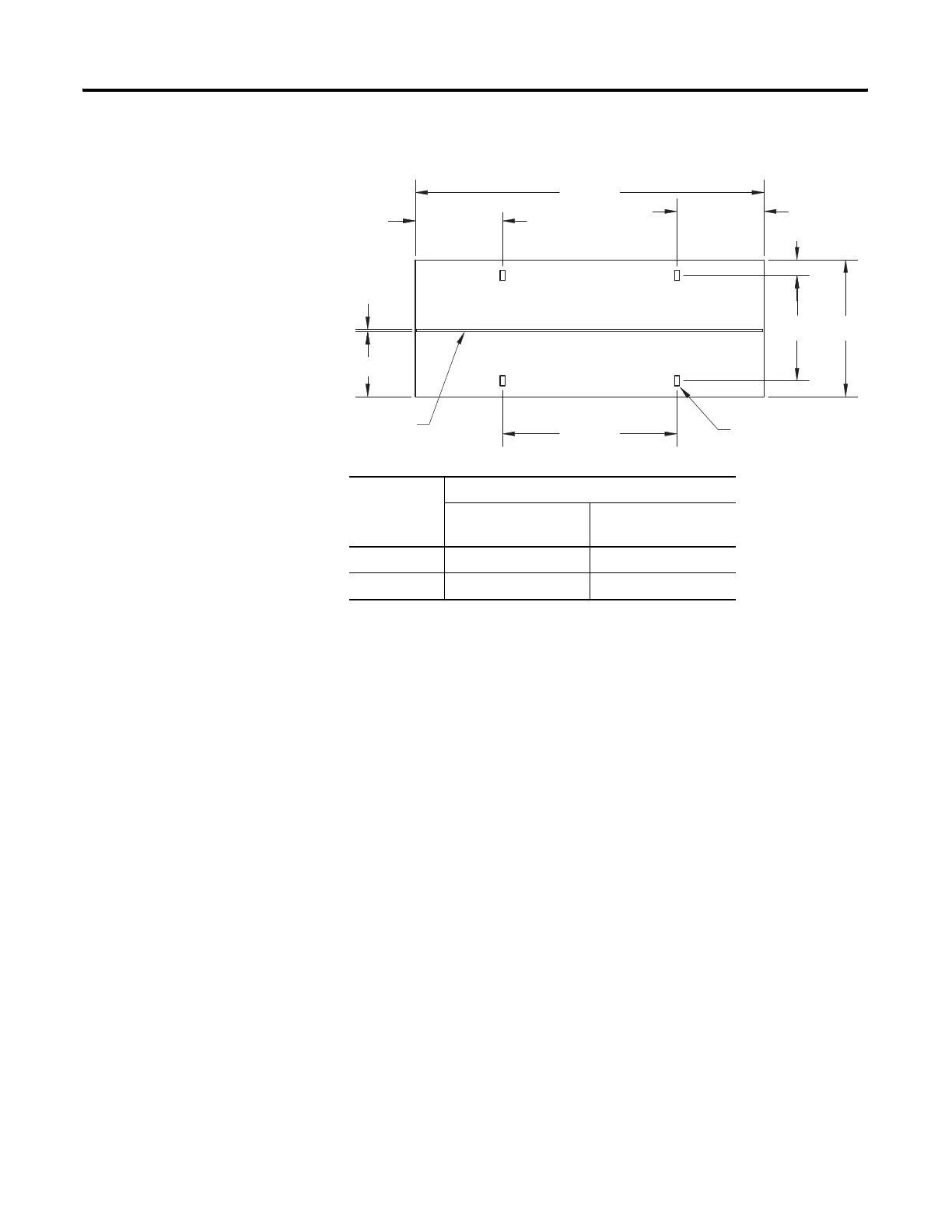

Mounting Dimensions for 15 in. and 20 in. Deep x 40 in. Wide Front-Mounted
Section
Rear
10.00 in. (254 mm)
B
Front
A
10.00 in. (254 mm)
40.00 in. (1016 mm)
1.69 in. (43 mm)
20.00 in. (508 mm)
7.15 in. (102 mm)
0.25 in. (6 mm)
Standard Ground Bus
(4) Mounting Slots
0.56 in. x 1.13 in. in Slots
(14 mm x 29 mm) Slots
Dimension,
approx.
Section Depth
15 in. (381 mm) Deep
in. (mm)
20 in. (508 mm) Deep
in. (mm)
A 15 (381) 20 (508)
B 11.56 (294) 16.56 (421)
