Rockwell Automation CENTERLINE 2100

36 Publication 2100-IN012C-EN-P - April 2009
Chapter 2 Installation Procedures

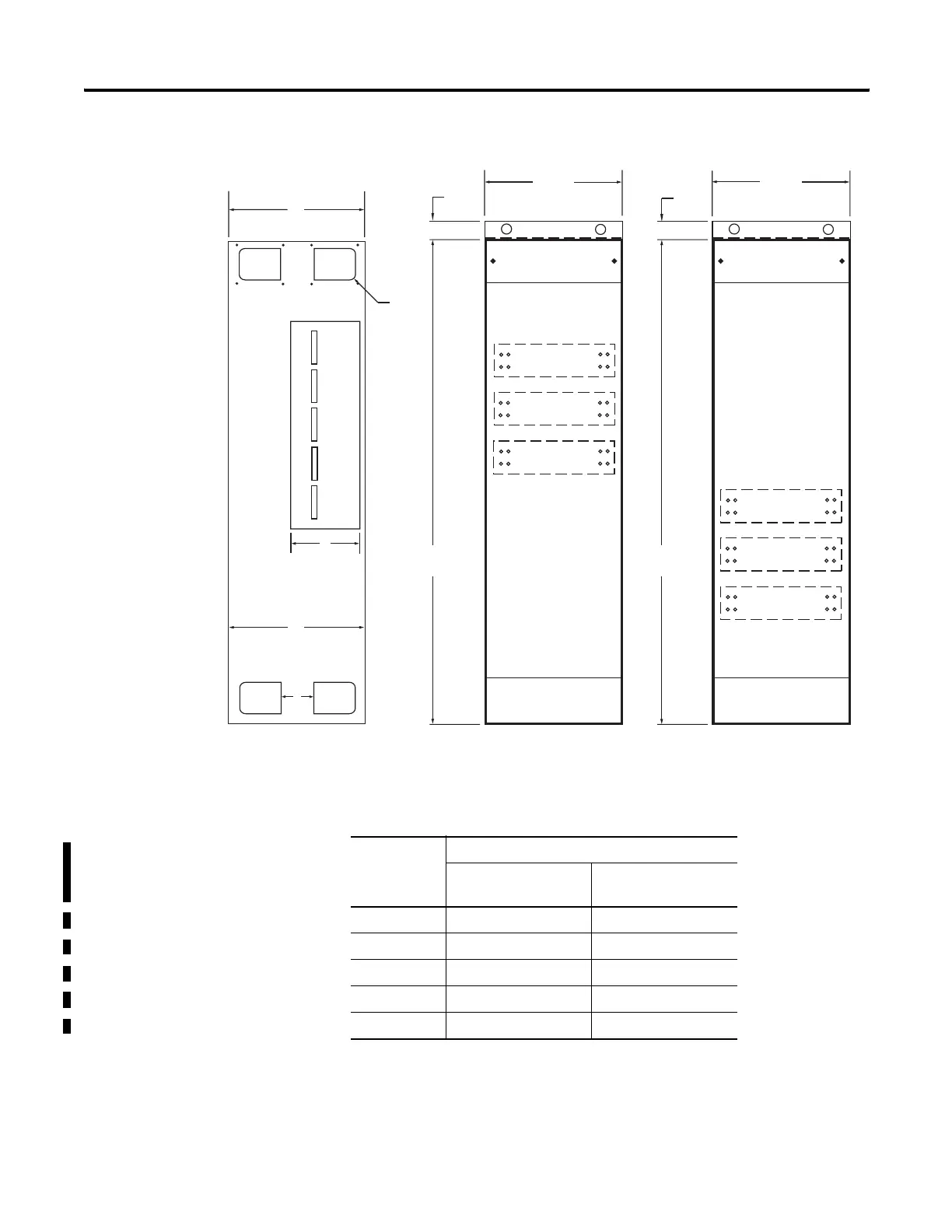

Mounting Dimensions for 71 in. H (reduced height) MCC Sections
A
D
C
B
E
20 in.
(508 mm)
20 in.
(508 mm)
70.48 in.
(1790.19 mm)
70.48 in.
(1790.19 mm)
0.25 in. (6 mm)
0.25 in. (6 mm)
71 in. High Section
(1803.4 mm)
Dimension,
approx.
Section Depth
15 in. (381 mm) Deep
in. (mm)
20 in.(635 mm) Deep
in. (mm)
A 15.00 (380) 20.00 (508)
B 14.75 (374) 19.75 (500)
C 5.12 (130) 10.12 (256)
D 4 (101) 8 (203)
E — 4.40 (112)
