Chapter 4 Installing and Removing Plug-in Units
.

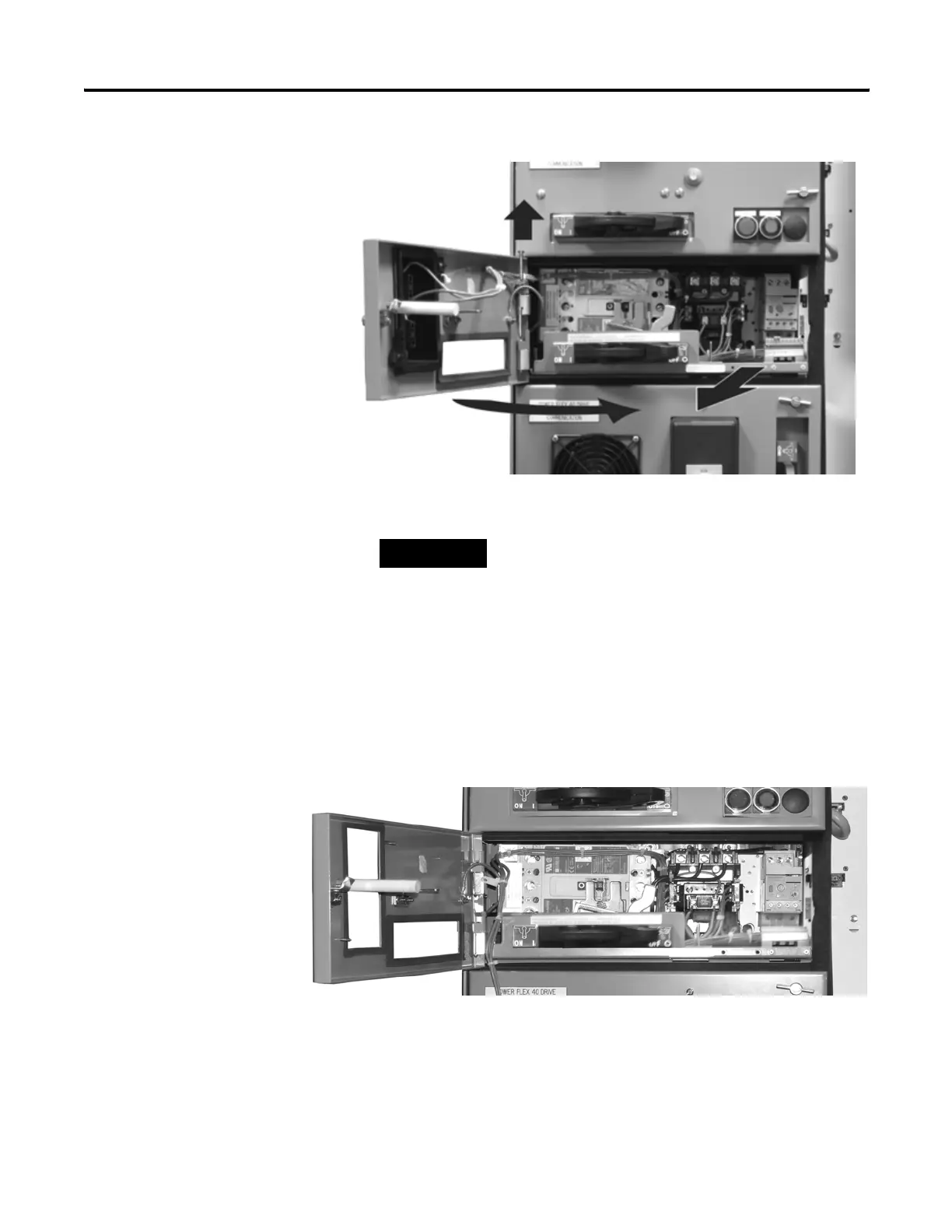

4. Remove the door-mounted devices and wiring, if necessary.
5. Remove the hinge pins by sliding upward with a flathead
screwdriver.
6. Swing the door to near closed position.
7. Lift the door outward to remove.
8. Detach the wiring/terminal block from the unit.
9. Place the wiring/terminal block in the vertical wireway to the
right of unit.
TIP
It is not necessary to remove the unit door in order to
remove a unit from a section.
