Publication 2100-IN012C-EN-P - April 2009 55
Installing and Removing Plug-in Units Chapter 4

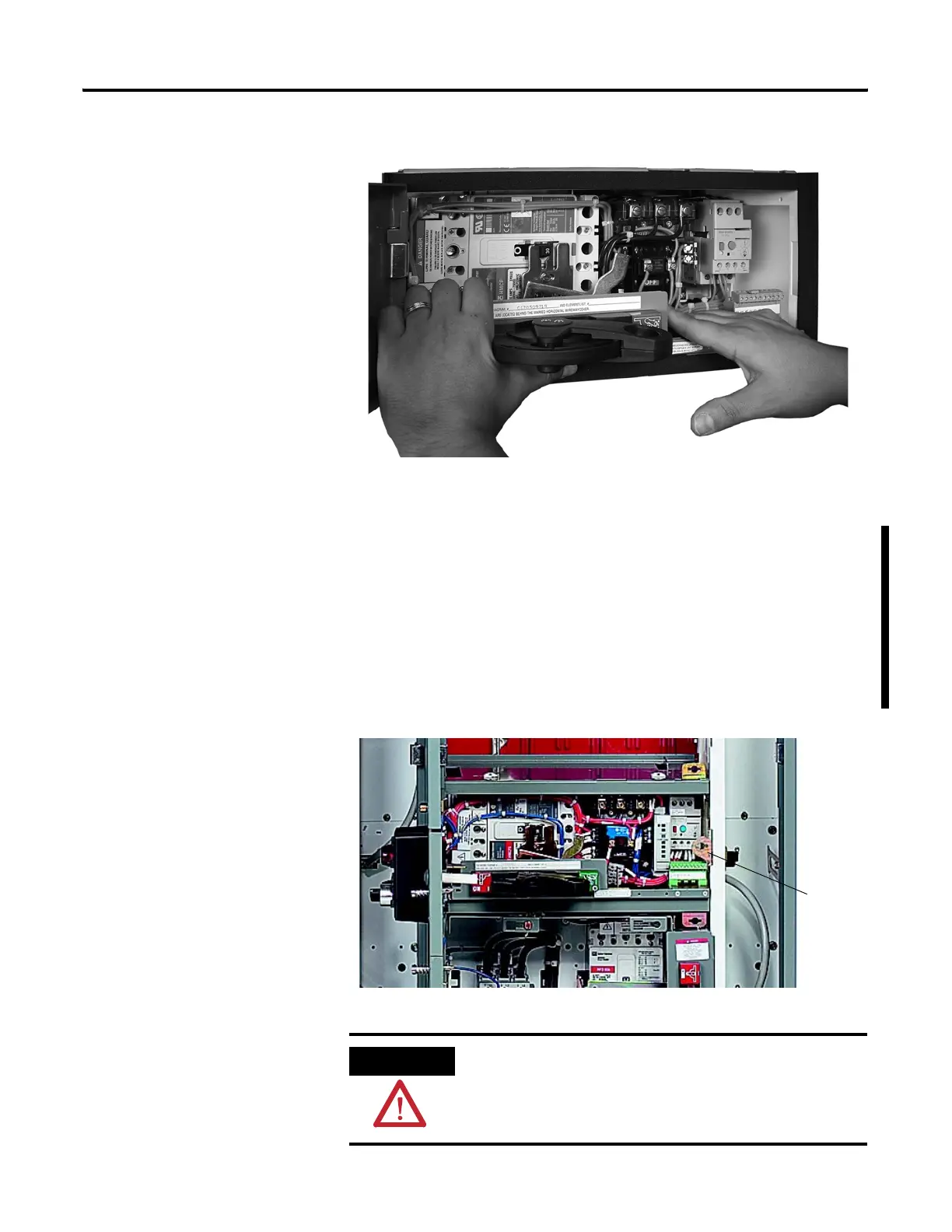

10. Push the latch mechanism to the left with your right hand.
11. Pull the unit forward (outward) approximately 3 in. (7.62 cm)
out of the MCC.
You may need to reposition your hands as necessary to properly
support the unit while you are removing the unit from the MCC.
For the CENTERLINE 2100 MCC units with arc-resistant door
latches, you will need to rotate the arc latch bracket 90
o
clockwise to avoid interference with the unit.
ATTENTION
Plug-in MCC units may be heavy or awkward to handle. Use an
assistant or a platform lift device if necessary to help you
handle the unit.
Arc Latch
Bracket
To Next Page
