Motor Mounting Methods
The following motor mounting guidelines are provided when designing a guideway.
• When attaching directly to the track or mounting plate as shown in Figure 3-38, make
sure that clearance holes for all motor connections are provided. This mounting
method does not provide for any adjustment of the motor position once the motor is
installed unless adjustment features are provided in the mounting plate.

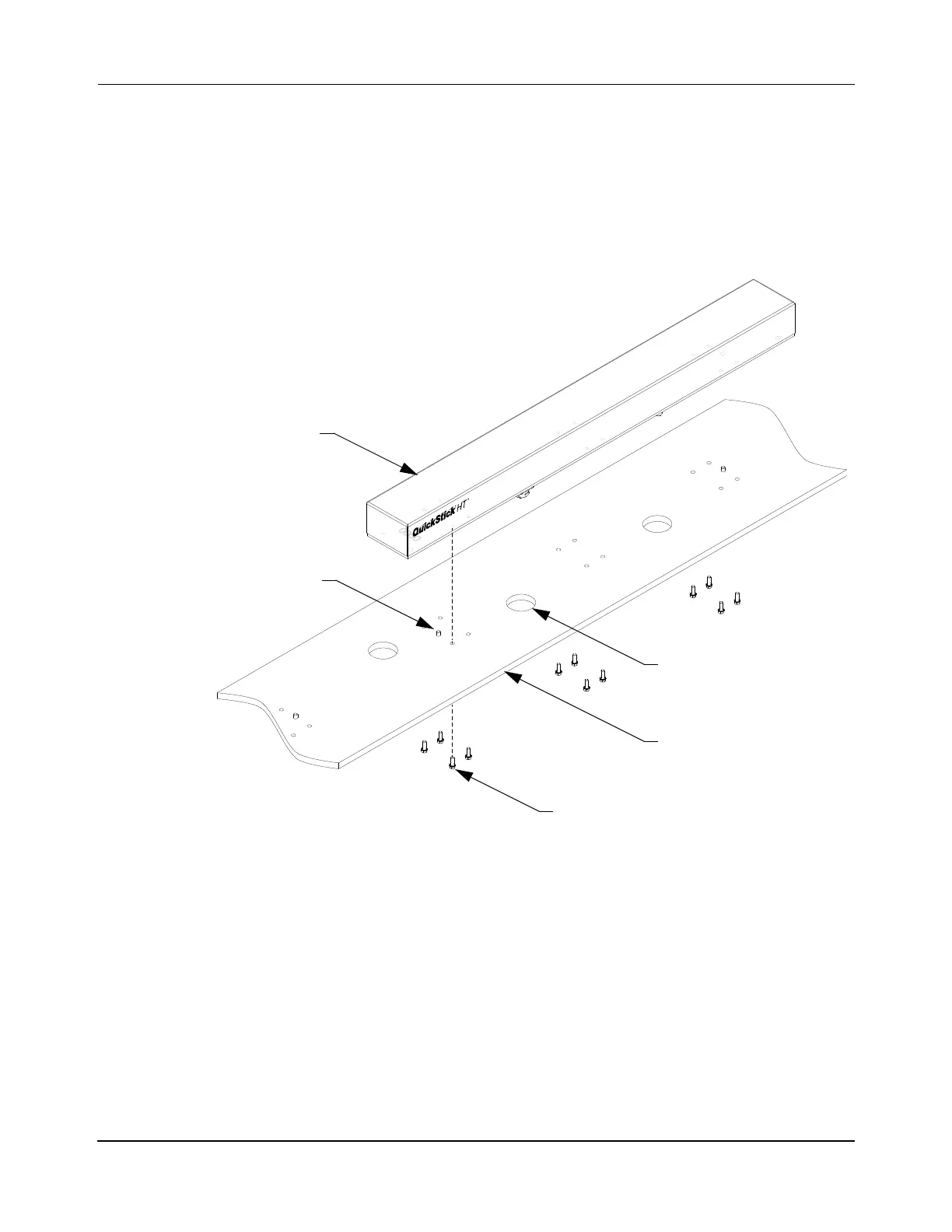

Figure 3-38: Motor Mounting to Flat Surface
Clearance Holes for
Motor Connections
M6 Mounting Hardware
QSHT Motor
Locating Pin
Mounting Plate
