Specifications and Site Requirements
Electrical Specifications
146 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

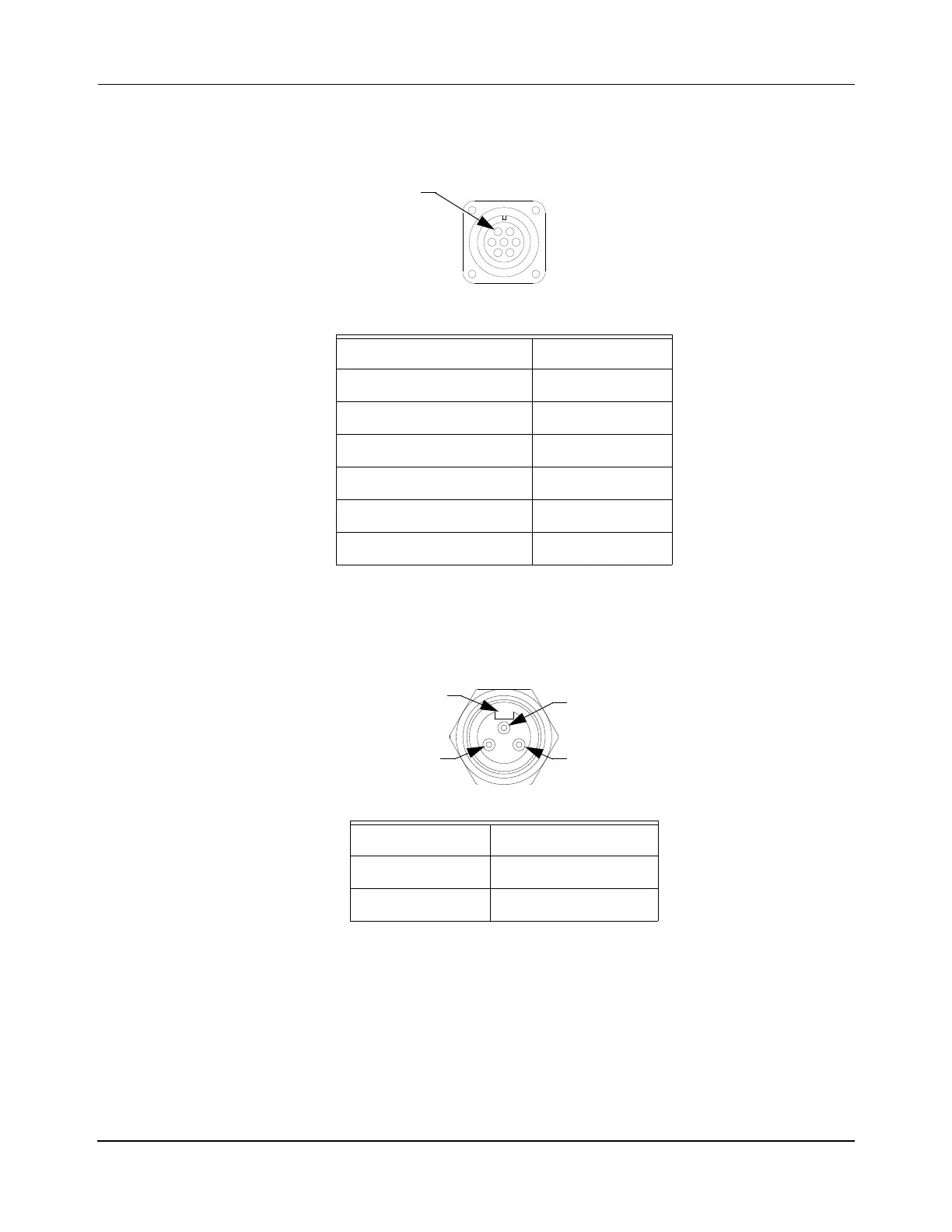

Table 4-19: QSMC Motor Controller Stator Drive Connector Pinout
16S-1S, 7-Pin, Female
Stator Block 1, Phase A A
Stator Block 1, Phase B B
Stator Block 1, Phase C C
Stator Block 2, Phase A D
Stator Block 2, Phase B E
Stator Block 2, Phase C F
GND G
Table 4-20: QSMC Motor Controller HVDC Power Connector Pinout
Powerfast, 3-Pin, Male
GND 1
PWR RTN 2
PWR HI 3
A
2
1
3
Key
