Specifications and Site Requirements
Electrical Specifications
QuickStick HT User Manual 159
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

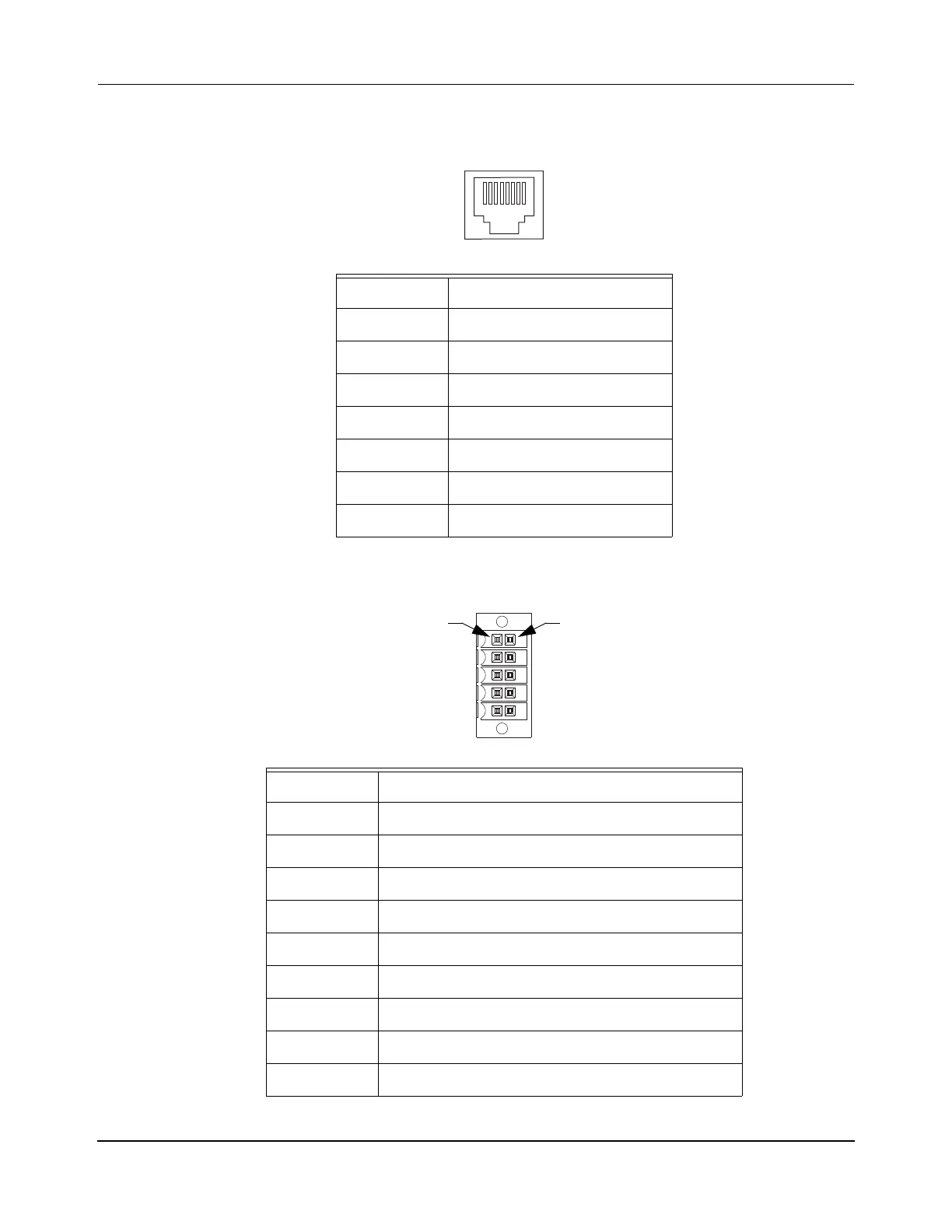

Table 4-39: QSHT 5700 Inverter Ethernet Connector Pinout
1 TD+
2 TD-
3 RD+
4 —
5 —
6 RD-
7 —
8 —
Table 4-40: QSHT 5700 Inverter Stator Sense Connector Pinout
1 VCC output to HES board (referenced to COM)
2 VCC output to HES board (referenced to COM)
3 VCC Common
4 VCC Common
5 Chassis
*
* Cable shield must be terminated to this pin.
6 RS-422 Rx+ input
7 RS-422 Rx- input
8 RS-422 Tx+ output
9 RS-422 Tx- output
10 N/C
1
8
1 6
